Road Stream Crossing Site LTB-229
Little Traverse Bay Watershed, Schoofs Creek
Resort Pike Rd - "Middle"
Resort Twp,
Emmet County
Information collected by:
Site Location
GPS Coordinates: 45.33533192
, -84.99622598
Owned by Private
Fish Passability 0
Total Erosion: 1.4875 tons/year
Severity: Severe
Year Inventoried: 2014

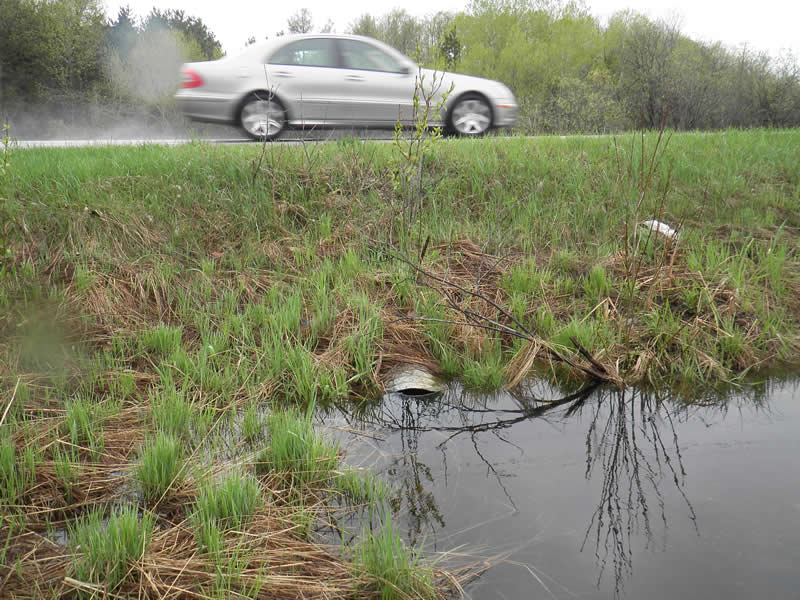

Inlet

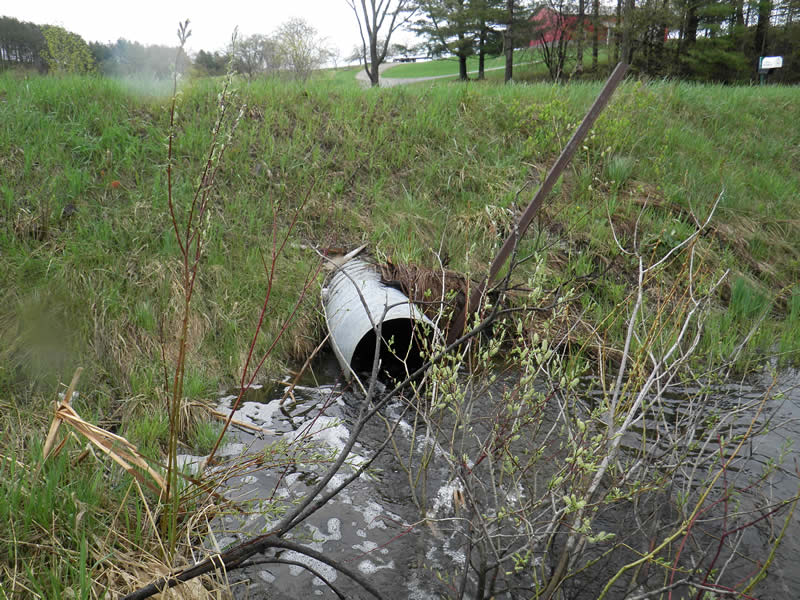

Outlet

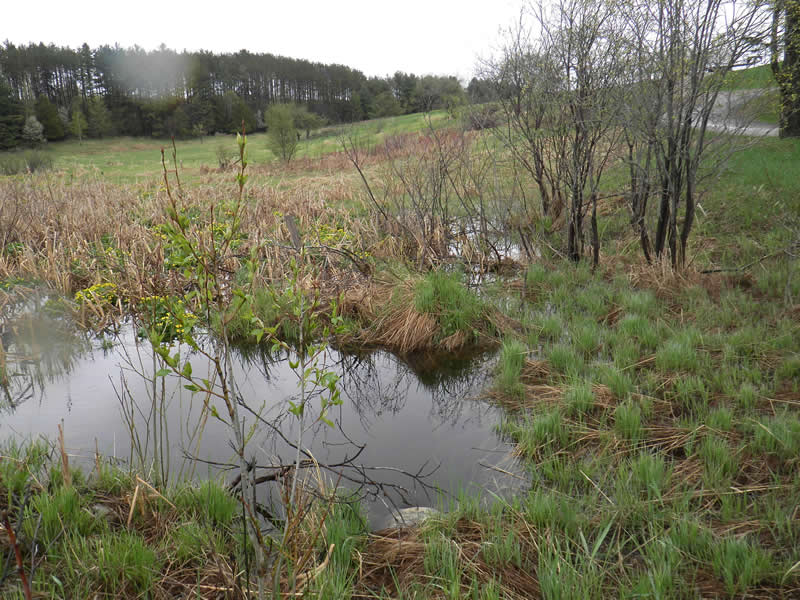

Upstream Conditions

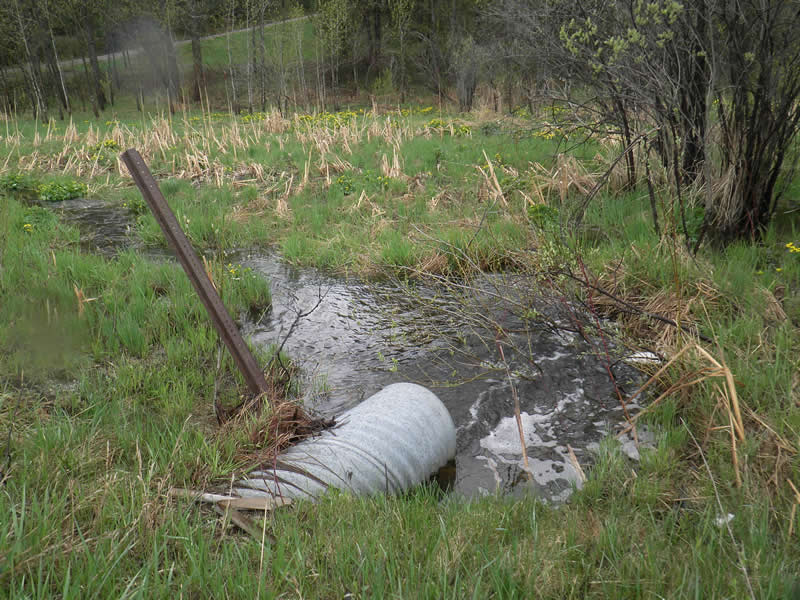

Downstream Conditions

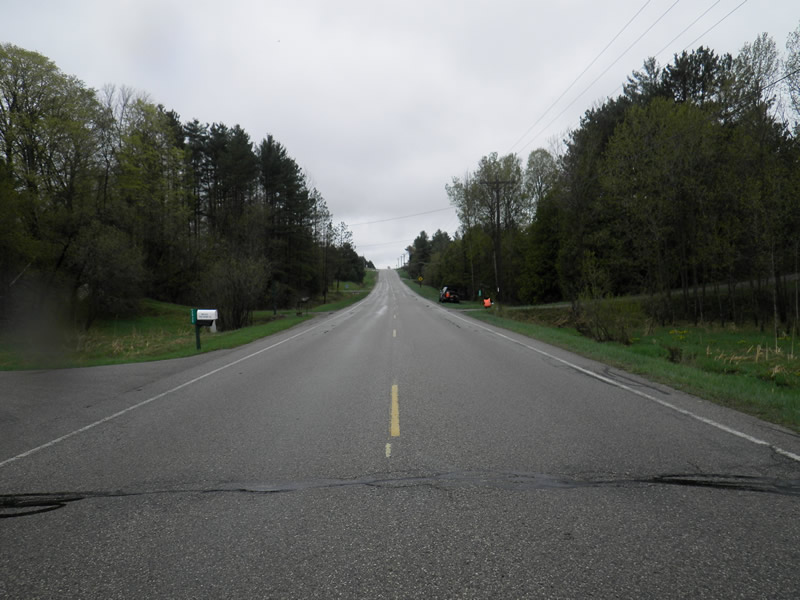

Road Approach - Left

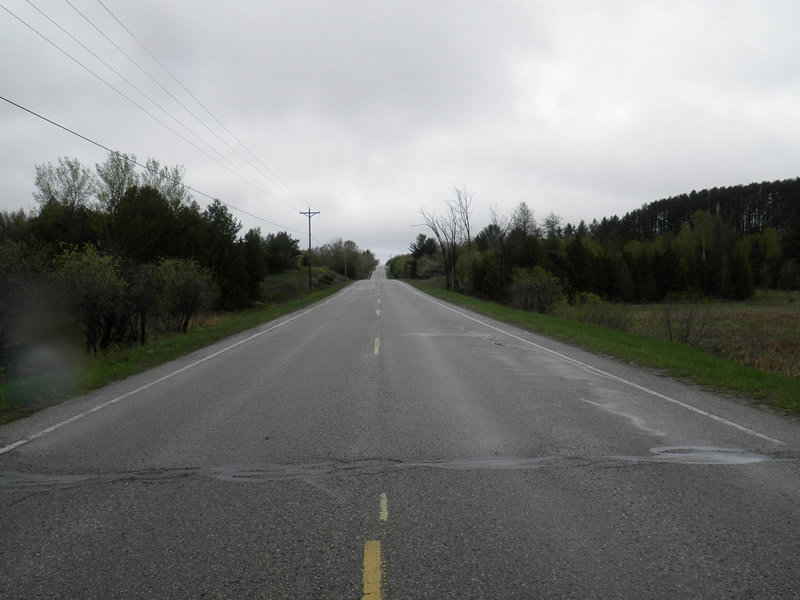

Road Approach - Left
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 60 ft.
, Width 1.5 ft.
, Height 1.5 ft.
Percentage Plugged:
Inlet: 0%
Outlet: 0%
In Pipe: 0%
Percentage Crushed:
Inlet: 0%
Outlet: 0%
In Pipe: 0%
Structure Inlet
Water Depth: 1.42 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.3 ft./sec.
Structure Outlet
Water Depth: 0.66 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 4.7 ft./sec.
*Water Velocities were measured 0.67 ft. below Surface
(with Meter)
Additional Comments
2939 Resort Pike. Old site ID: SC-1.
Stream Information
Stream Flow: Bankfull
Scour Pool: Length 6 ft.
, Width 8 ft.
, Depth 1.4 ft.
Upstream Pond: Length 9 ft.
, Width 7 ft.
, Depth 1.6 ft.
Riffle Information
Water Depth: 0.7 ft.
Bankfull Width: 5.5 ft.
Wetted Width: 4 ft.
Water Velocity: 1.5 ft./sec.
(Measured with Meter)
Dominant Substrate: sand/organics
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 33 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 3.1 ft.
Slope: More than 1:2
Downstream
Fill Depth: 3.2 ft.
Slope: 1:2
Approaches
Left Approach
Length: 700 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 1.825
Erosion: 1.3936 tons/year
Right Approach
Length: 200 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.43
Erosion: 0.0938 tons/year
Erosion Information
Total Erosion at Crossing: 1.4875 tons/year
Notes: NONE
Summary Information
Fish Passability 0
Fish Passage is an area of concern for this site.
possibly fish passage in dry weather
A future visit to this site is recommended. check downstream for perched in dry times
