Road Stream Crossing Site MAN_MI_008
Big Manistee River Watershed, Golden Creek
Truesdale Rd
Bloomfield Twp,
Missaukee County
Information collected by:
Site Location
GPS Coordinates: 44.45277
, -85.3295
T24N
R8W
Sec 30
Owned by Private
Structure is NOT Perched
Total Erosion: 0.7934 tons/year
Severity: Moderate
Year Inventoried: 2014
Inlet
Outlet
Upstream Conditions
Downstream Conditions

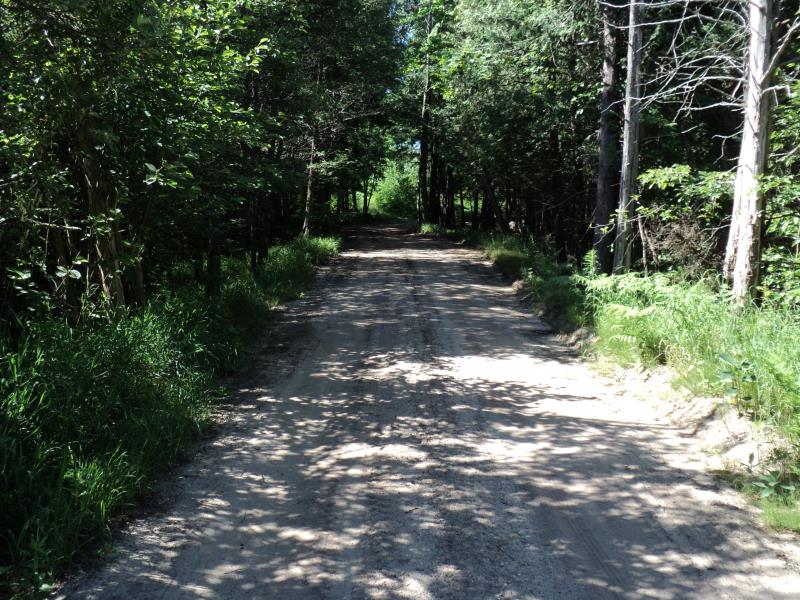

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 4
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Fair
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
2 |
3 ft. |
29 ft. |
3 ft. |
Metal |
3 |
3 ft. |
29 ft. |
3 ft. |
Metal |
4 |
3 ft. |
29 ft. |
3 ft. |
Metal |
Structure Interior: corrugated
Dimensions of Structure: Length 29 ft.
, Width 3 ft.
, Height 3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2 ft./sec.
Structure Outlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3 ft./sec.
*Water Velocities were measured 0.4 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 35 ft.
, Width 23 ft.
, Depth 2.9 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.8 ft.
Bankfull Width: 24 ft.
Wetted Width: 21.6 ft.
Water Velocity: 2.4 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Sand
County Road
(Seasonal)
Road Condition: Fair
Road Width at Culvert: 13 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 2.4 ft.
Slope: More than 1:2
Downstream
Fill Depth: 3 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 240 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.438
Erosion: 0.3765 tons/year
Right Approach
Length: 250 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.44
Erosion: 0.3939 tons/year
Erosion Information
Total Erosion at Crossing: 0.7934 tons/year
Extent of Erosion: Minor
Location of Erosion | Erosion Dimensions | Eroded Material | Material Eroded | Total Erosion | ||
facing downstream | Length | Width | Depth | Reaching Stream? | (tons/year) | |
Left Downstream Streambank |
24 ft. |
0.5 ft. |
1 ft. |
yes |
Sandy Loam |
0.023 |
Summary Information
Erosion is an area of concern for this site.
