Road Stream Crossing Site MC-01
Crooked River Watershed, Mud Creek
Pickerel Lake Rd
Springvale Twp,
Emmet County
Information collected by:
Site Location
GPS Coordinates: 45.377029
, -84.798832
T35N
R03W
Sec 33
Fish Passability 0
Perch Height: 2.3 ft.
Total Erosion: 0.1421 tons/year
Severity: Severe
Year Inventoried: 2015
Inlet
Outlet

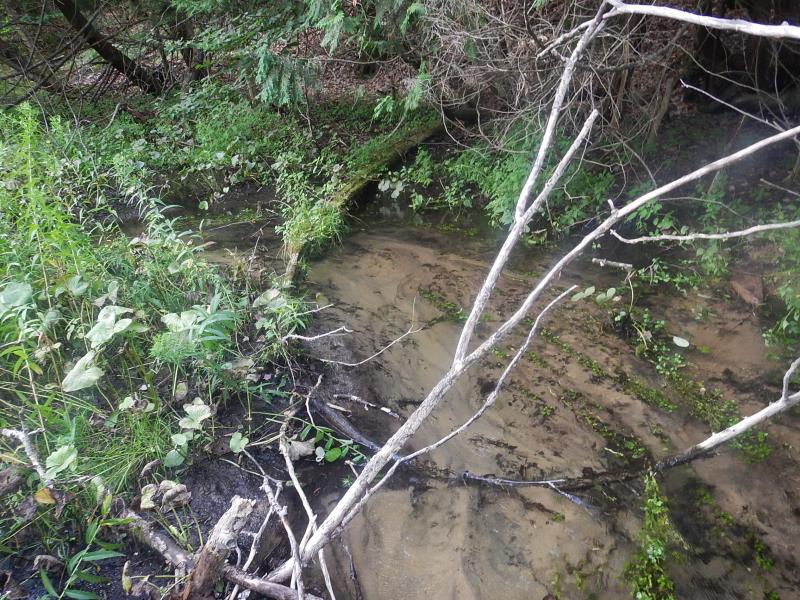

Upstream Conditions
Downstream Conditions

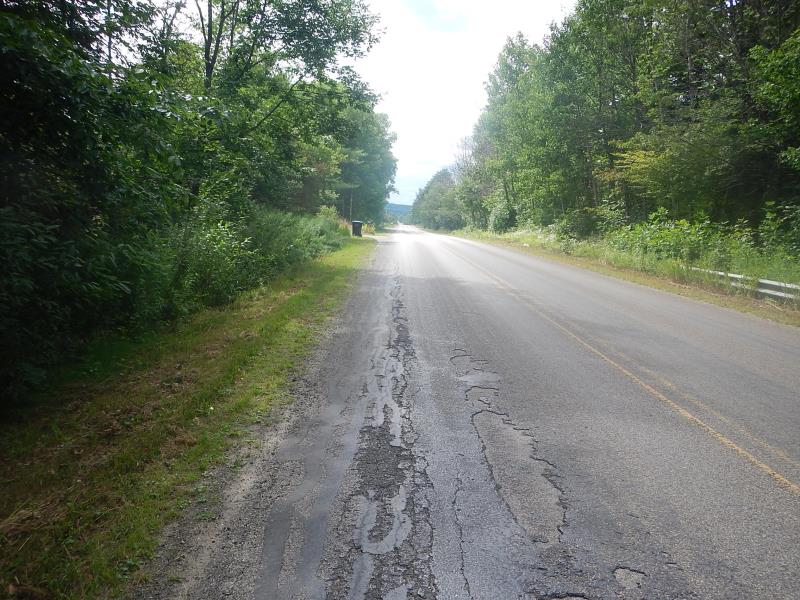

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 45 ft.
, Width 3 ft.
, Height 3 ft.
Percentage Crushed:
Inlet: 0%
Outlet: 0%
In Pipe: 1% to 25%
Perch Height: 2.3 ft.
Structure Inlet
Water Depth: 1.55 ft.
Embedded Depth of Structure: 0.25 ft.
Water Velocity*: 0.8 ft./sec.
Structure Outlet
Water Depth: 0.36 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 6.2 ft./sec.
*Water Velocities were measured 1 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 20 ft.
, Width 17 ft.
, Depth 33 ft.
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 14 ft.
Wetted Width: 11.58 ft.
Water Velocity: 0.8 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved
County Road
Road Condition: Fair
Road Width at Culvert: 25 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 16 ft.
Slope: More than 1:2
Downstream
Fill Depth: 16.5 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 200 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.43
Erosion: 0.0711 tons/year
Right Approach
Length: 200 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.43
Erosion: 0.0711 tons/year
Erosion Information
Total Erosion at Crossing: 0.1421 tons/year
Summary Information
Fish Passability 0
