Road Stream Crossing Site CLHW_MC-019

Mill Creek Watershed, Unnamed
US-23
Mackinaw Twp, Cheboygan County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.73509 , -84.63995
T39N R3W Sec 35
Owned by Private
Fish Passability 0
Structure is NOT Perched
Total Erosion: 0 tons/year
Severity: Severe
Year Inventoried: 2016
Site ID

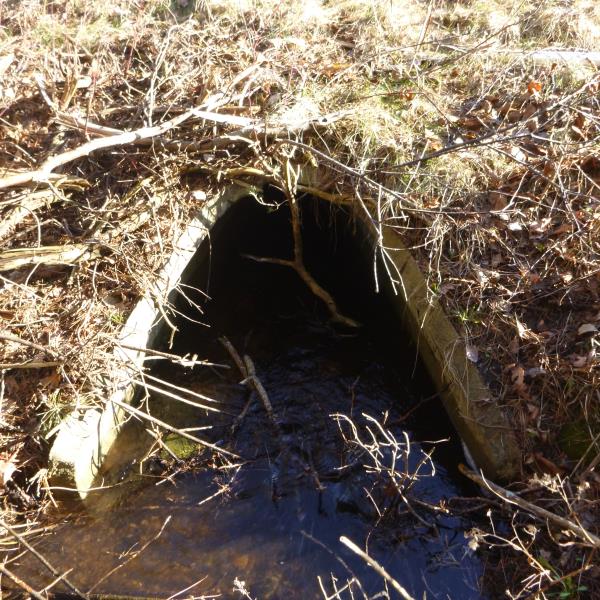

Inlet
Outlet

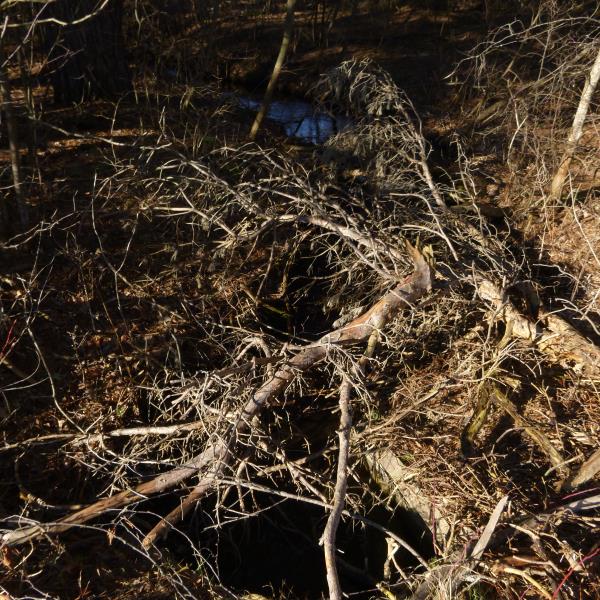

Upstream Conditions

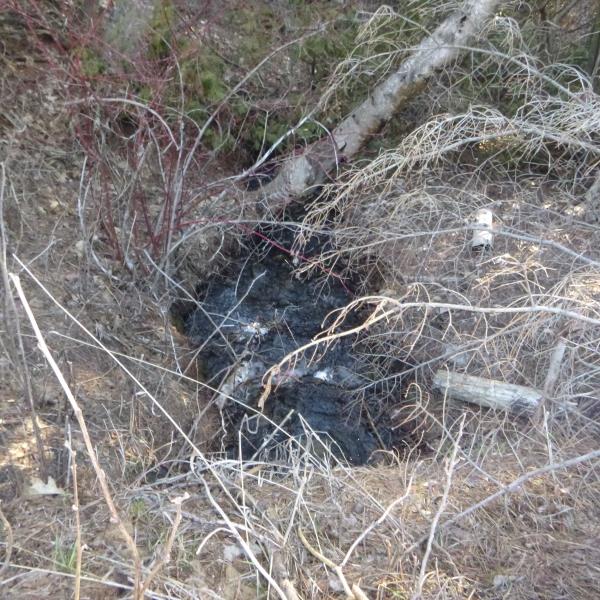

Downstream Conditions

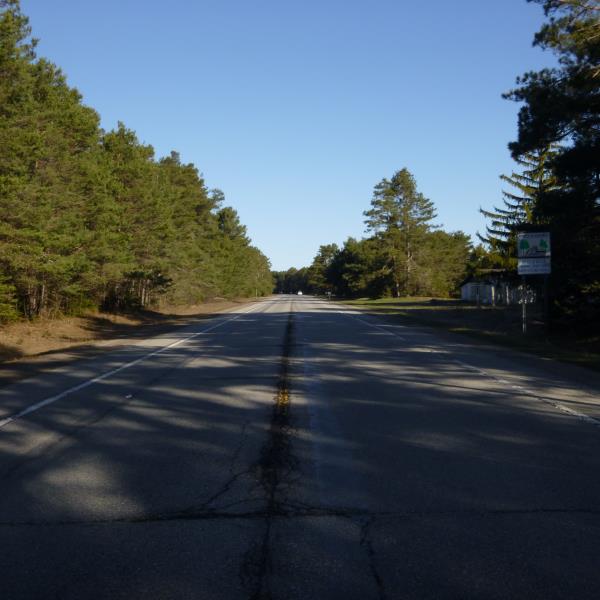

Road Approach - Left

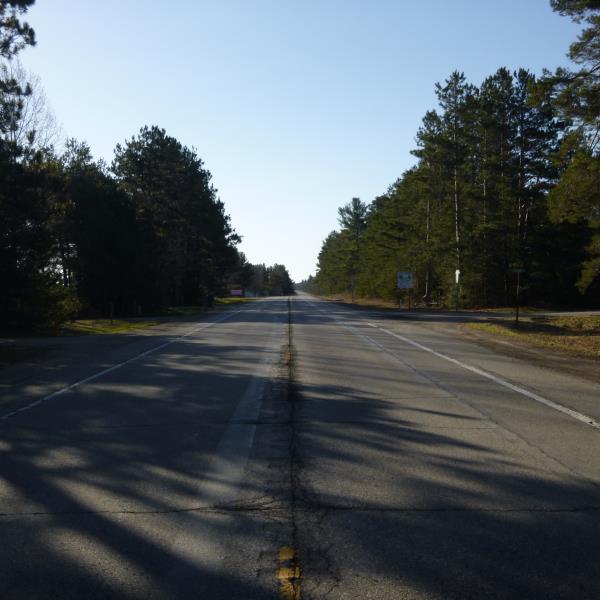

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round

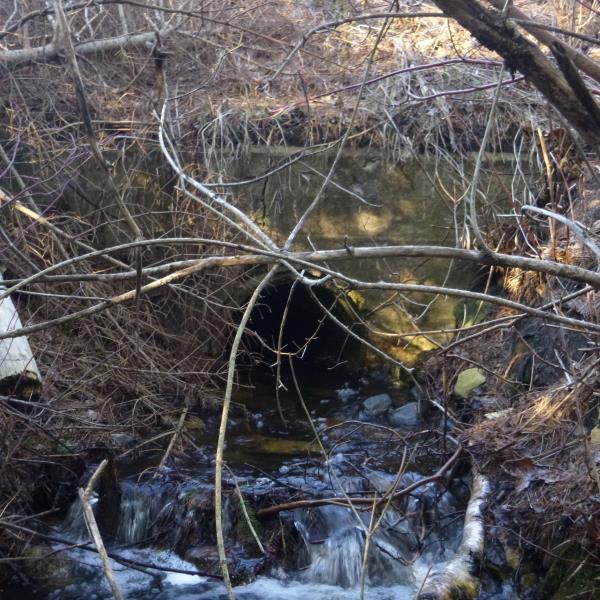

Inlet Type: Wingwall 10-30 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: None
General Conditions: Poor
Structure Interior: smooth
Dimensions of Structure: Length 90 ft. , Width 2 ft. , Height 2 ft.
Percentage Plugged: Inlet: 26% to 50% Outlet: 26% to 50% In Pipe: 0%
Percentage Crushed: Inlet: 1% to 25% Outlet: 0% In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 5.1 ft./sec.
Structure Outlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 5.1 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.7 ft.
Bankfull Width: 7 ft.
Wetted Width: 3.6 ft.
Water Velocity: 1 ft./sec. (Measured with Float Test)
Dominant Substrate: Gravel
Road Information
Paved Federal Road
Road Condition: Fair
Road Width at Culvert: 34 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 3 ft.
Slope: More than 1:2
Downstream
Fill Depth: 6 ft.
Slope: 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0 tons/year
Summary Information
Fish Passability 0
