Road Stream Crossing Site CLHW_MC-031
Mill Creek Watershed, Dynamite Creek
Lincoln (Shore Drive)
Beaugrand Twp,
Cheboygan County
Information collected by:
Site Location
GPS Coordinates: 45.67691
, -84.51527
T38N
R2W
Sec 23
Owned by Private
Fish Passability 0
Perch Height: 1 ft.
Severity: Severe
Year Inventoried: 2016

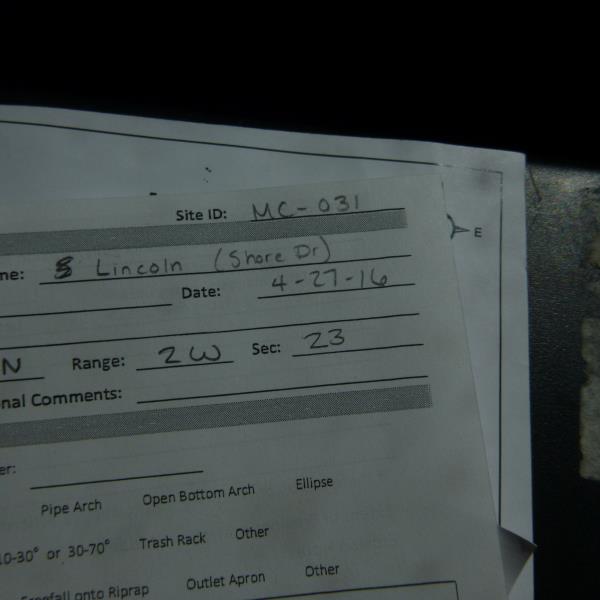

Site ID

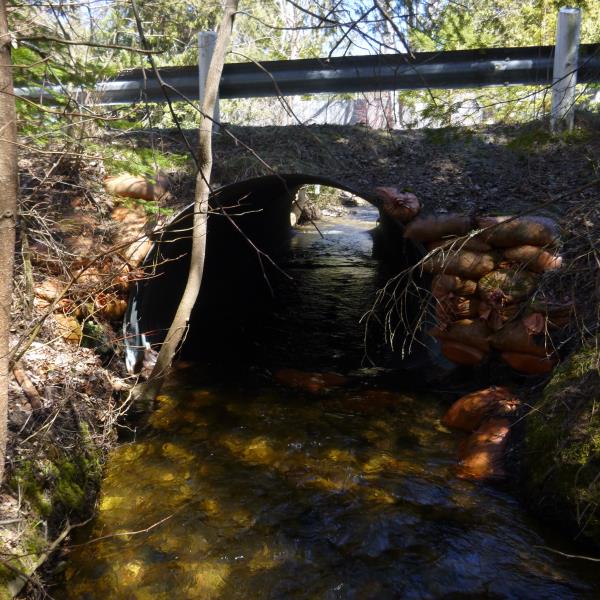

Inlet

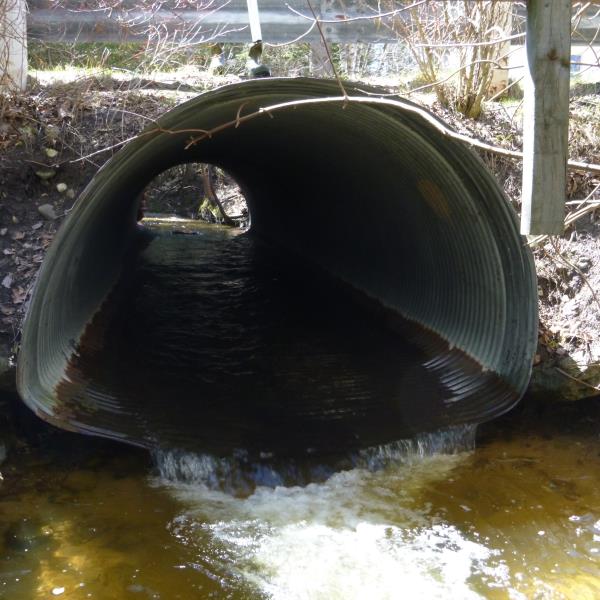

Outlet

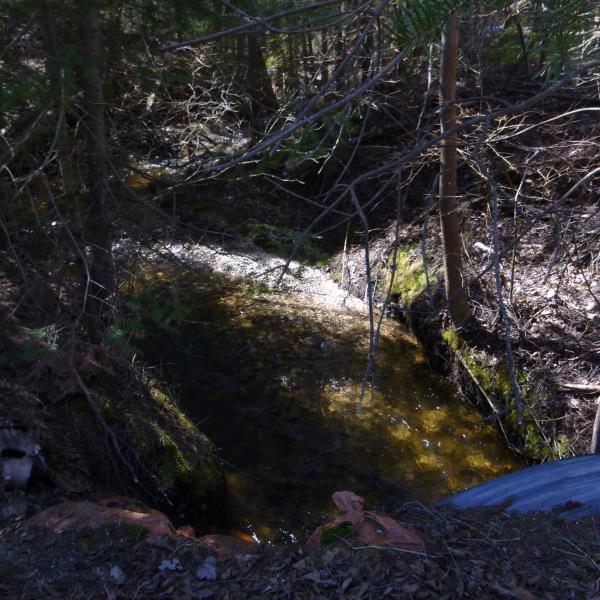

Upstream Conditions

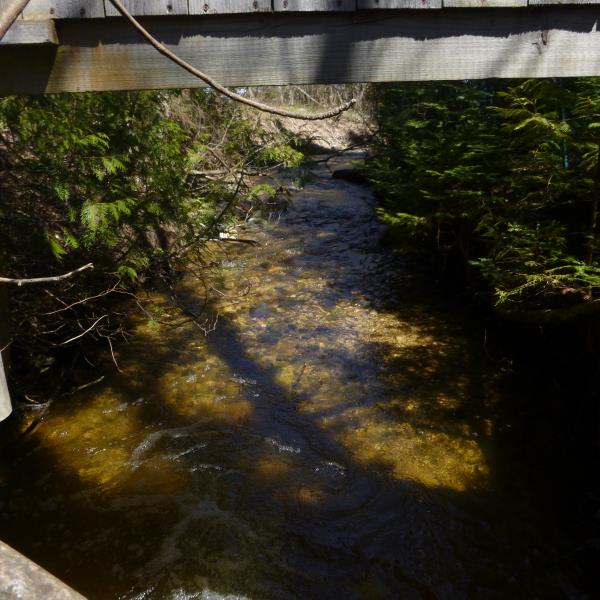

Downstream Conditions

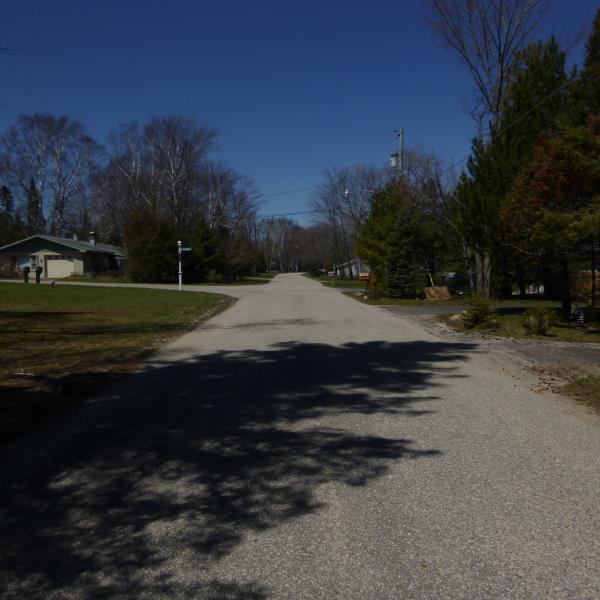

Road Approach - Left

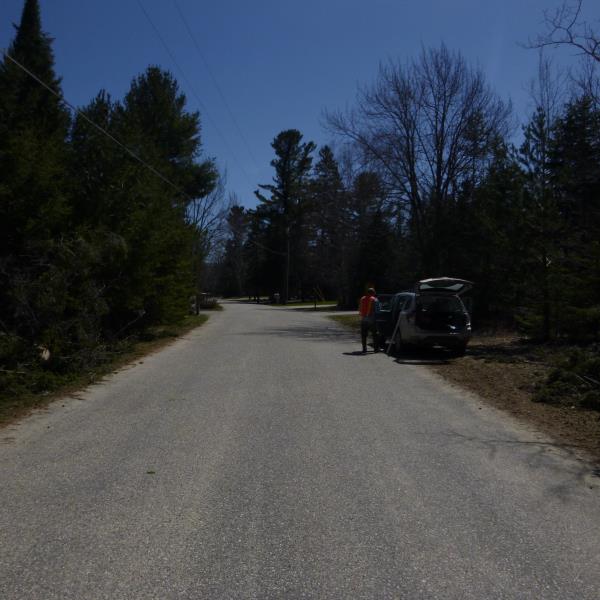

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 38 ft.
, Width 7 ft.
, Height 5.5 ft.
Perch Height: 1 ft.
Structure Inlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.3 ft./sec.
Structure Outlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.3 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 1.3 ft.
Bankfull Width: 15 ft.
Wetted Width: 10 ft.
Water Velocity: 2.6 ft./sec.
(Measured with Float Test)
Dominant Substrate: Sand
Road Information
Paved
Private Road
Road Condition: Good
Road Width at Culvert: 20 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.6 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1 ft.
Slope: More than 1:2
Length: 0 ft.
Vegetation: Heavy
Length: 0 ft.
Vegetation: Heavy
Erosion Information
Summary Information
Fish Passability 0
Fish Passage is an area of concern for this site.
Flow through crossing is too fast and too shallow for proper fish passage
A future visit to this site is recommended. This RSX is the closest to Lake Huron on this Creek
