Road Stream Crossing Site CLHW_MC-032
Mill Creek Watershed, Unnamed
US-23
Beaugrand Twp,
Cheboygan County
Information collected by:
Site Location
GPS Coordinates: 45.68309
, -84.53265
T38N
R2W
Sec 15
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Severity: Minor
Year Inventoried: 2016
Site ID

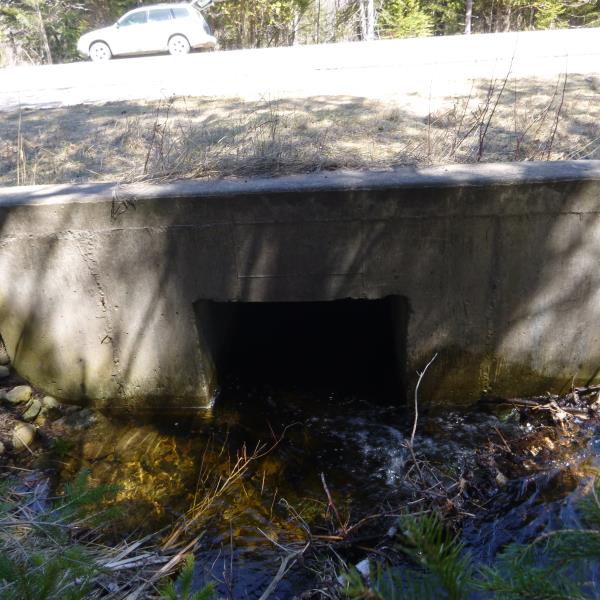

Inlet

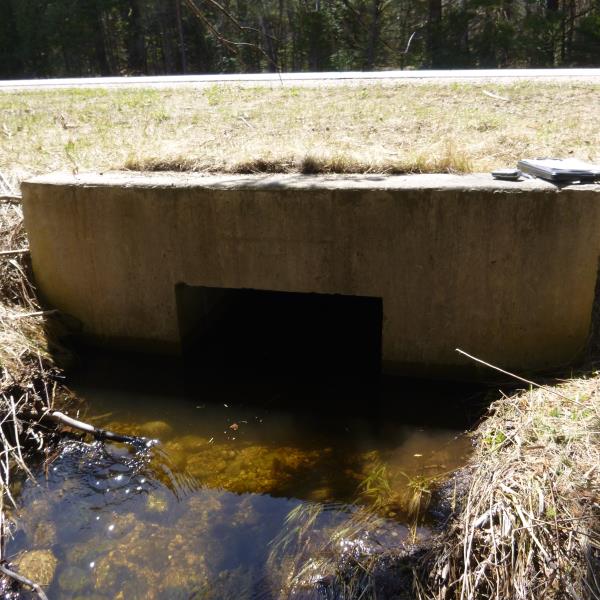

Outlet

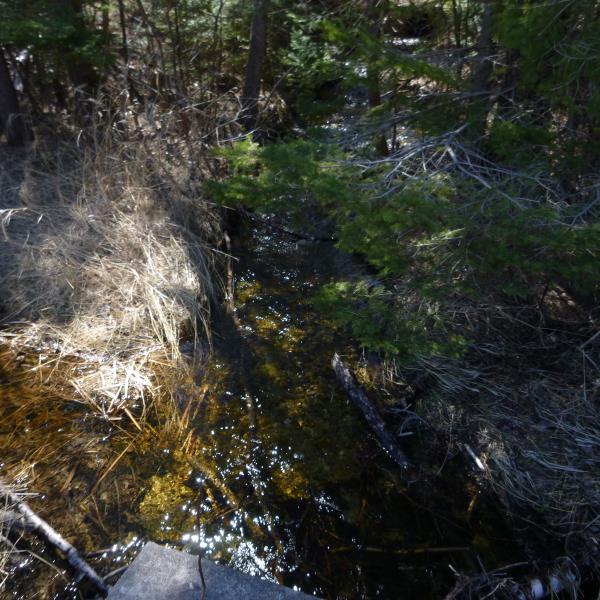

Upstream Conditions

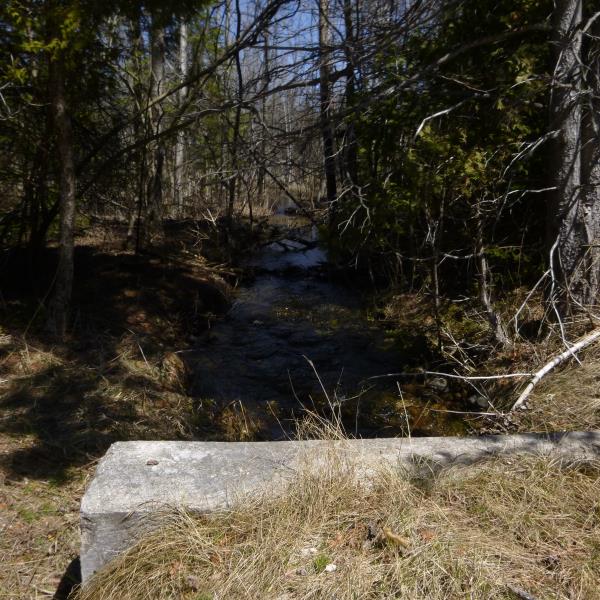

Downstream Conditions

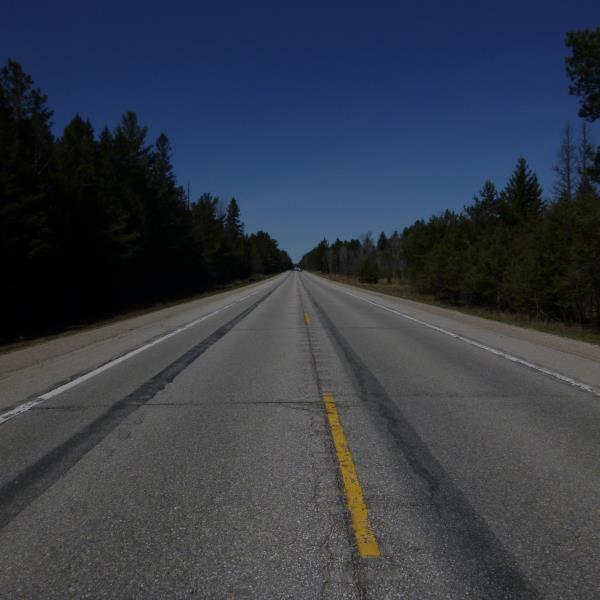

Road Approach - Left

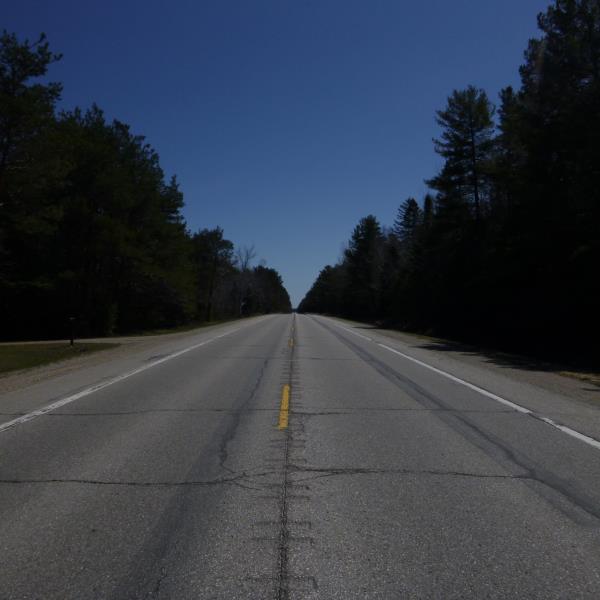

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Square/Rectangle
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 71 ft.
, Width 3 ft.
, Height 3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.6 ft./sec.
Structure Outlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.6 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.8 ft.
Bankfull Width: 10 ft.
Wetted Width: 7 ft.
Water Velocity: 1.9 ft./sec.
(Measured with Float Test)
Dominant Substrate: Gravel
Road Information
Paved
Federal Road
Road Condition: Fair
Road Width at Culvert: 34 ft.
Location of Low Point: Other
Runoff Path: Ditch
Fill Depth: 0 ft.
Fill Depth: 0 ft.
Length: 0 ft.
Vegetation: Heavy
Length: 0 ft.
Vegetation: Heavy
Erosion Information
Summary Information
Fish Passability 0.9
