Road Stream Crossing Site CLHW_MC-033
Mill Creek Watershed, Unnamed
North Central State Trail
Beaugrand Twp,
Cheboygan County
Information collected by:
Site Location
GPS Coordinates: 45.68284
, -84.53291
T38N
R2W
Sec 15
Owned by Private
Fish Passability 0
Perch Height: 0.5 ft.
Severity: Severe
Year Inventoried: 2016

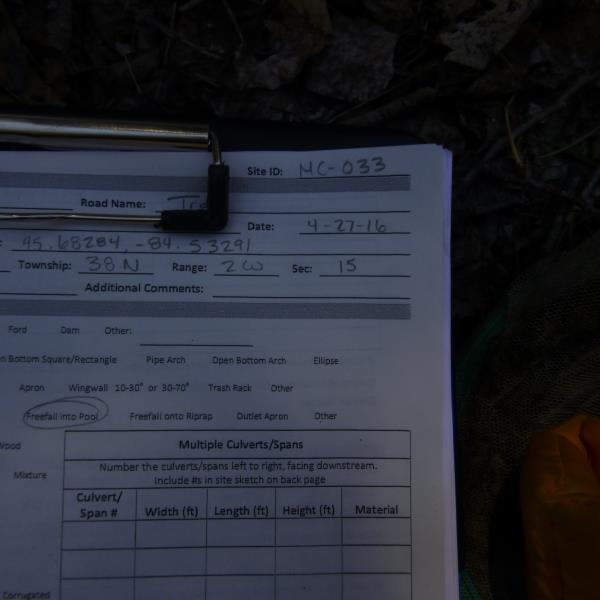

Site ID

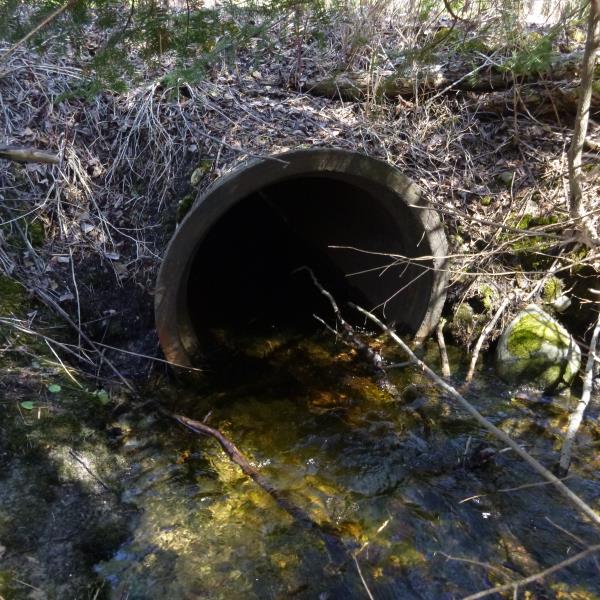

Inlet

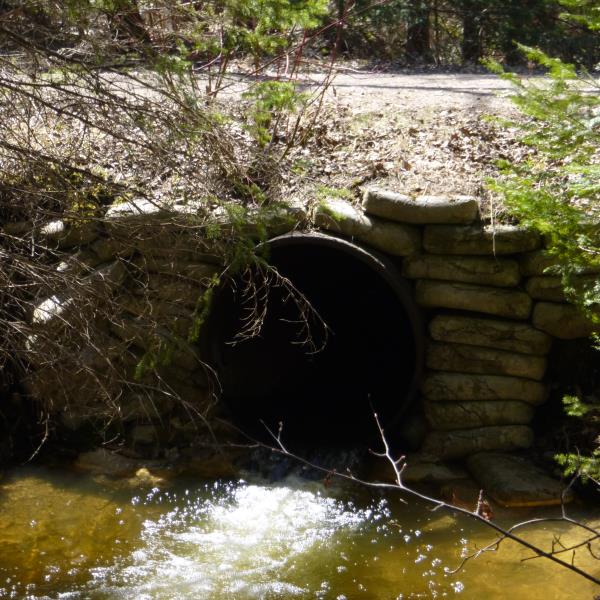

Outlet

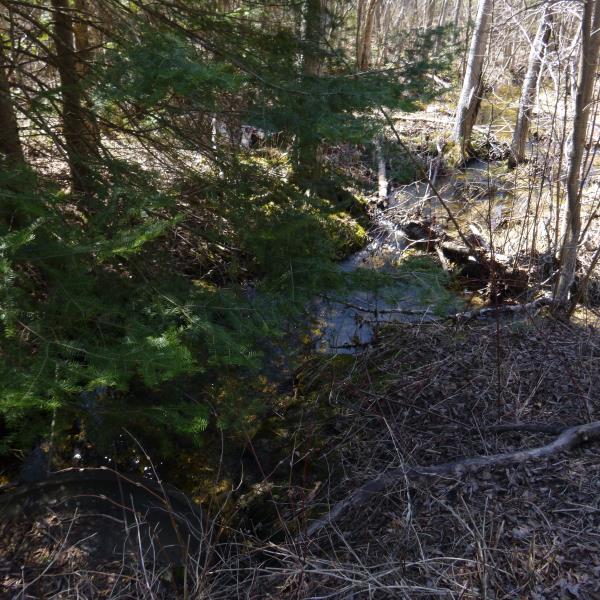

Upstream Conditions

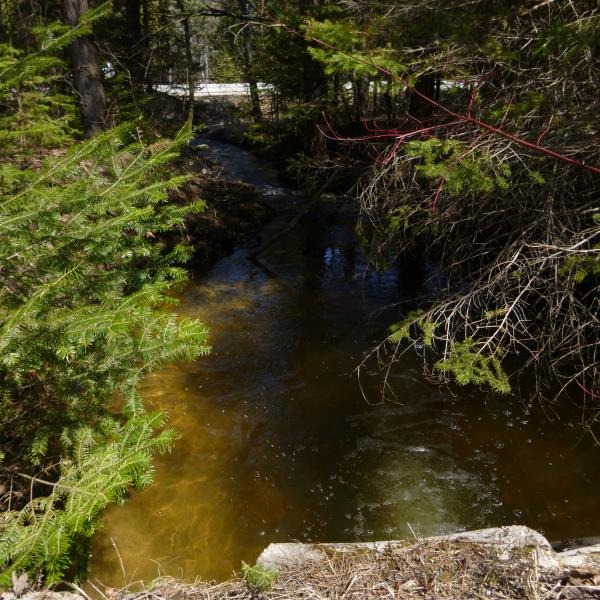

Downstream Conditions

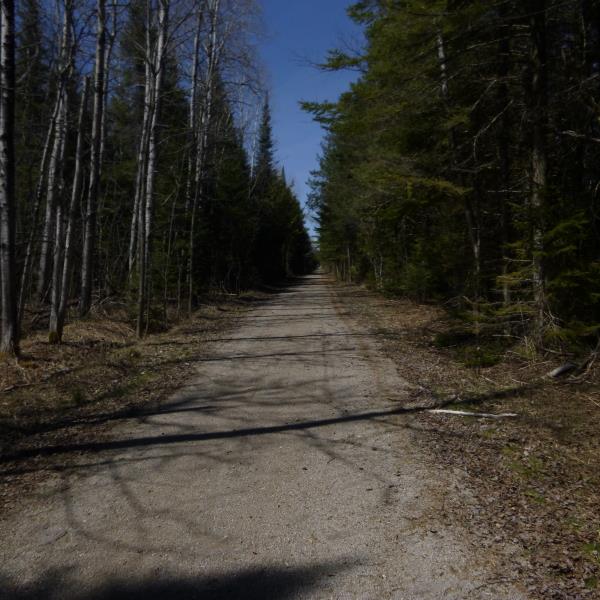

Road Approach - Left

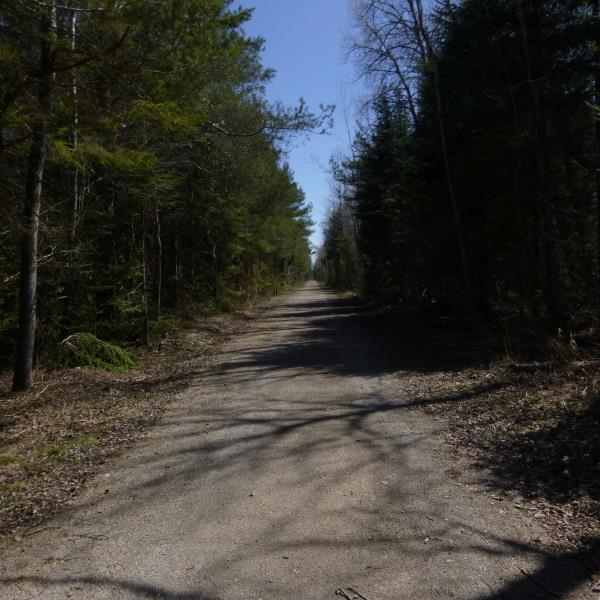

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 25 ft.
, Width 3 ft.
, Height 3 ft.
Perch Height: 0.5 ft.
Structure Inlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.8 ft./sec.
Structure Outlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.8 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Additional Comments
Walking/Biking Trail
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 15 ft.
, Width 14 ft.
, Depth 2.1 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.8 ft.
Bankfull Width: 10 ft.
Wetted Width: 7 ft.
Water Velocity: 1.9 ft./sec.
(Measured with Float Test)
Dominant Substrate: Gravel
Road Information
Gravel
Other Road
(Seasonal)
Road Condition: Good
Road Width at Culvert: 10 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.5 ft.
Slope: More than 1:2
Length: 0 ft.
Vegetation: Heavy
Length: 0 ft.
Vegetation: Heavy
Erosion Information
Summary Information
Fish Passability 0
