Road Stream Crossing Site CLHW_OR-009
Ocqueoc River Watershed, Ocqueoc River Floodwaters
W 634 Hwy
Bismarck Twp,
Presque Isle County
Information collected by:
Site Location
GPS Coordinates: 45.22895
, -83.9488
T33N
R4E
Sec 28
Owned by State
Structure is NOT Perched
Total Erosion: 0.133 tons/year
Severity: Moderate
Year Inventoried: 2016
Site ID

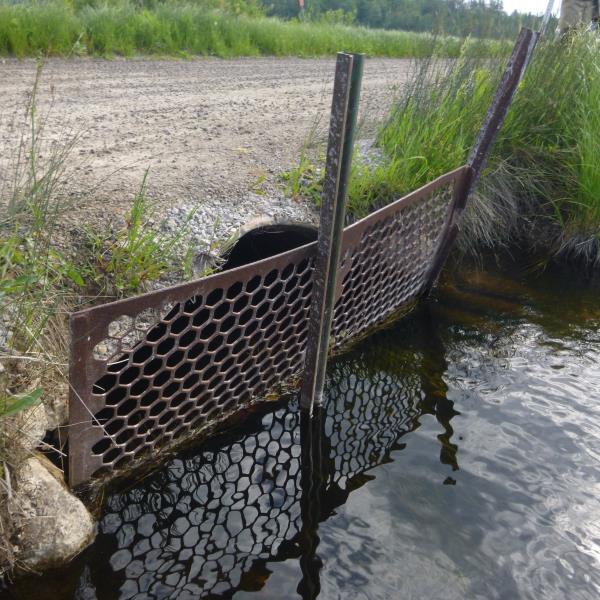

Inlet
Outlet

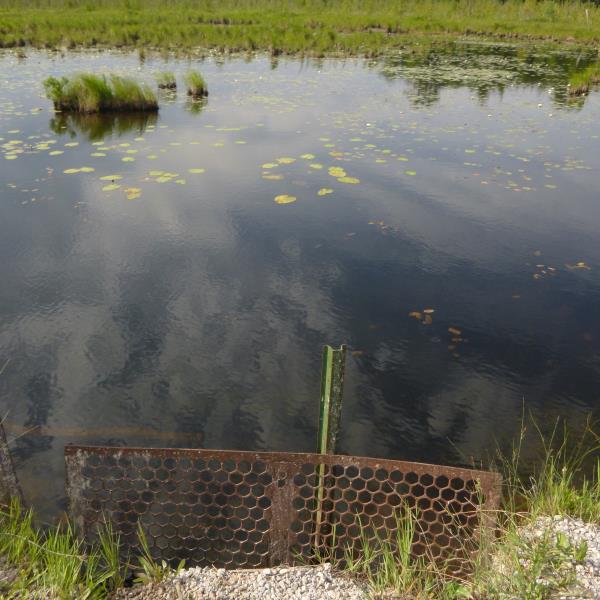

Upstream Conditions

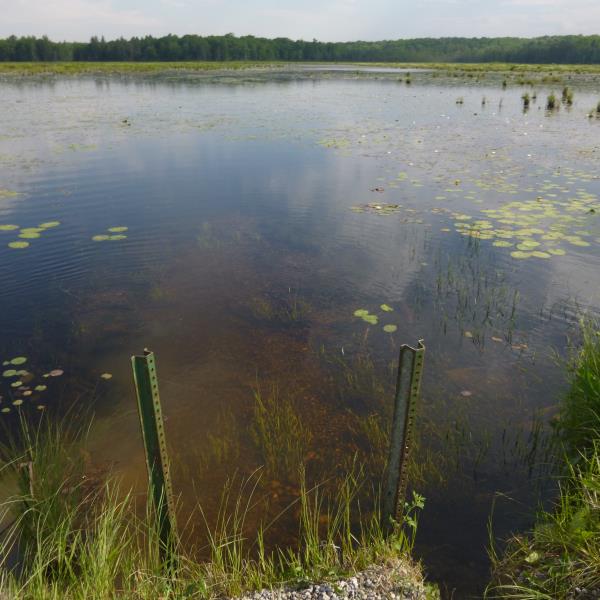

Downstream Conditions

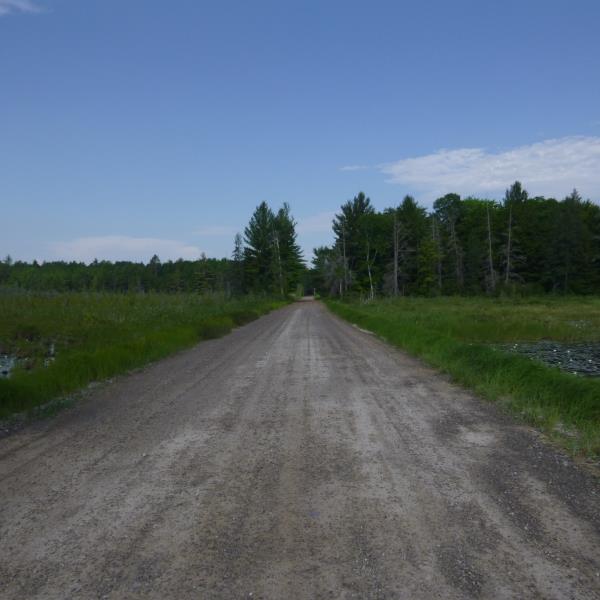

Road Approach - Left

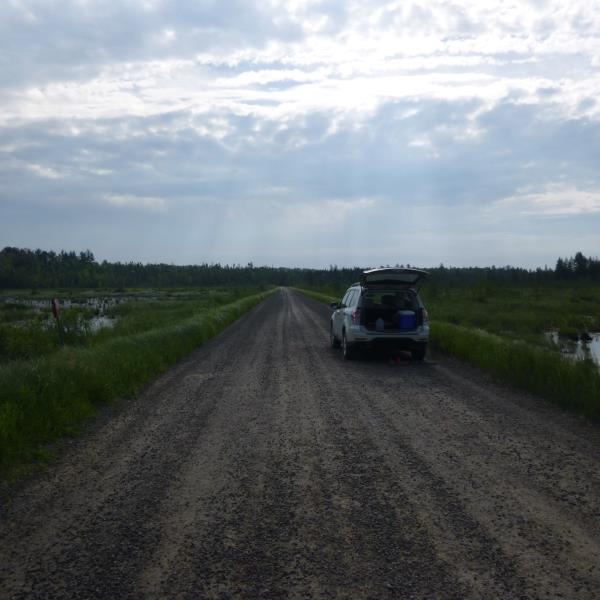

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Trash Rack
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Gravel
General Conditions: Poor
Structure Interior: corrugated
Structure is Rusted through
Dimensions of Structure: Length 21.5 ft.
, Width 5 ft.
, Height 3.6 ft.
Percentage Crushed:

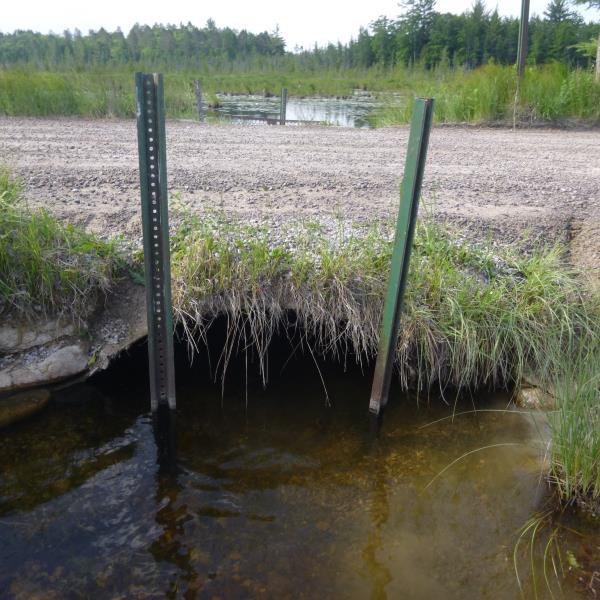

Inlet: 1% to 25%
Outlet: 1% to 25%
In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 2.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 1.5 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Additional Comments
Flooding/wetland area; not in river form anymore; no riffle available
Stream Information
Stream Flow: Less than Bankfull
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 17 ft.
Location of Low Point: Other
Runoff Path: Ditch
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0.133 tons/year
Extent of Erosion: Moderate
Erosion is occurring and corrective actions can be installed to address the problem.
Notes: Caused by rainfall and crowned roadway; could possibly build headwall
Location of Erosion | Erosion Dimensions | Eroded Material | Material Eroded | Total Erosion | ||
facing downstream | Length | Width | Depth | Reaching Stream? | (tons/year) | |
Right Downstream Embankment |
2.5 ft. |
2 ft. |
3 ft. |
yes |
Gravel |
0.0525 |
Left Downstream Embankment |
5 ft. |
2.5 ft. |
2.3 ft. |
yes |
Gravel |
0.0805 |
