Road Stream Crossing Site CLHW_OR-058
Ocqueoc River Watershed, Unnamed stream
Balch Rd
Bearinger Twp,
Presque Isle County
Information collected by:
Site Location
GPS Coordinates: 45.4906
, -84.14684
T36N
R2E
Sec 23
Owned by Private
Structure is NOT Perched
Total Erosion: 0.7194 tons/year
Severity: Minor
Year Inventoried: 2016
Site ID

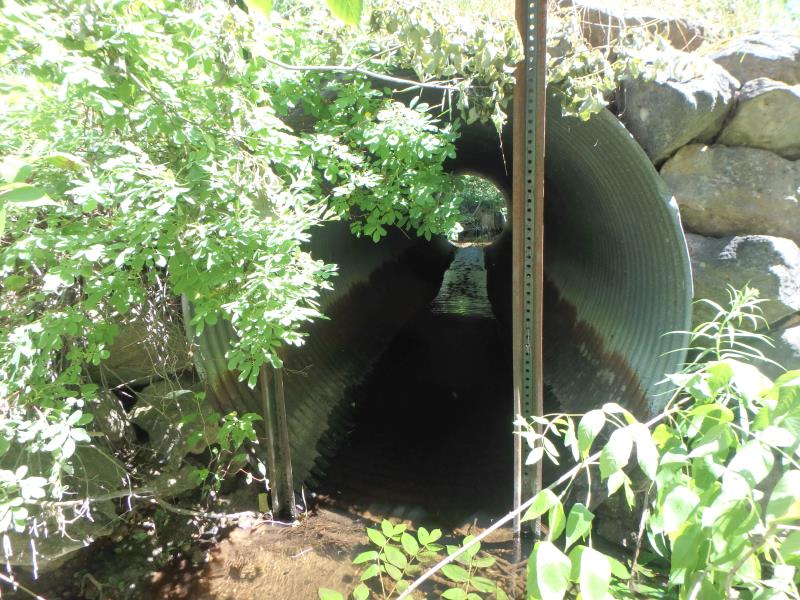

Inlet

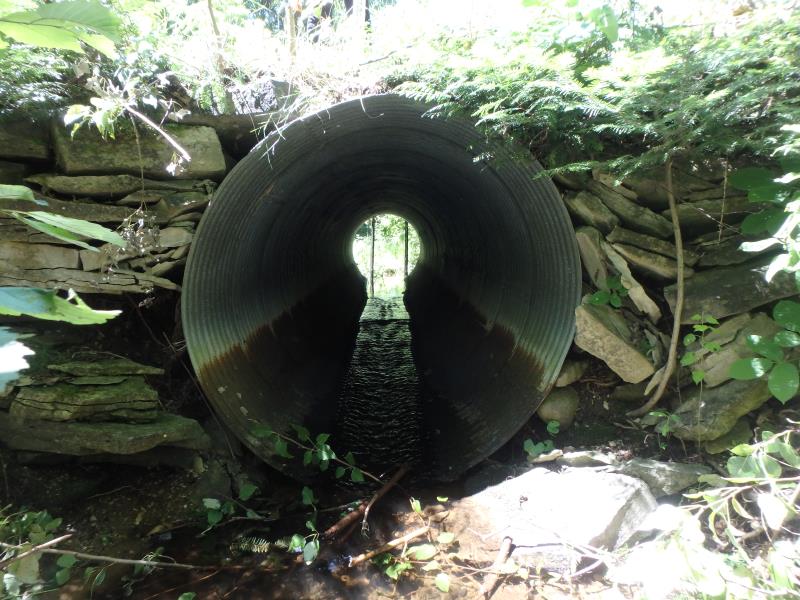

Outlet

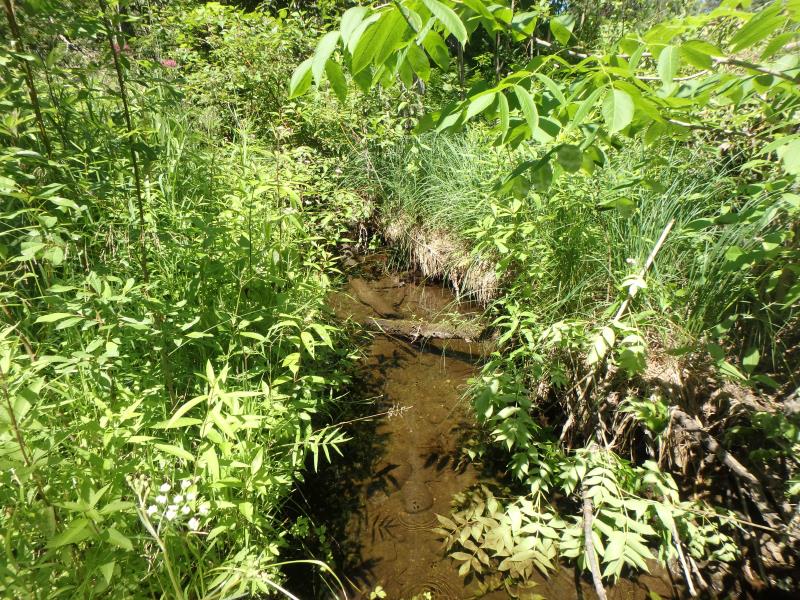

Upstream Conditions

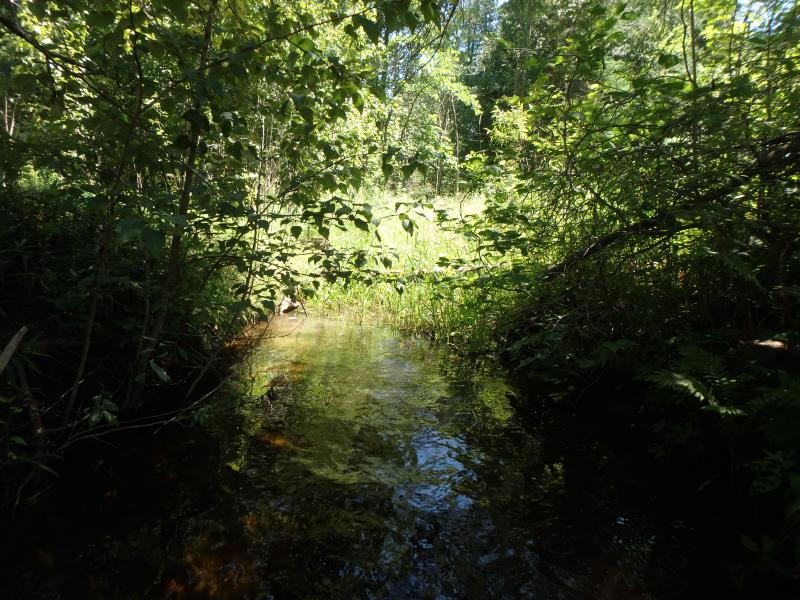

Downstream Conditions

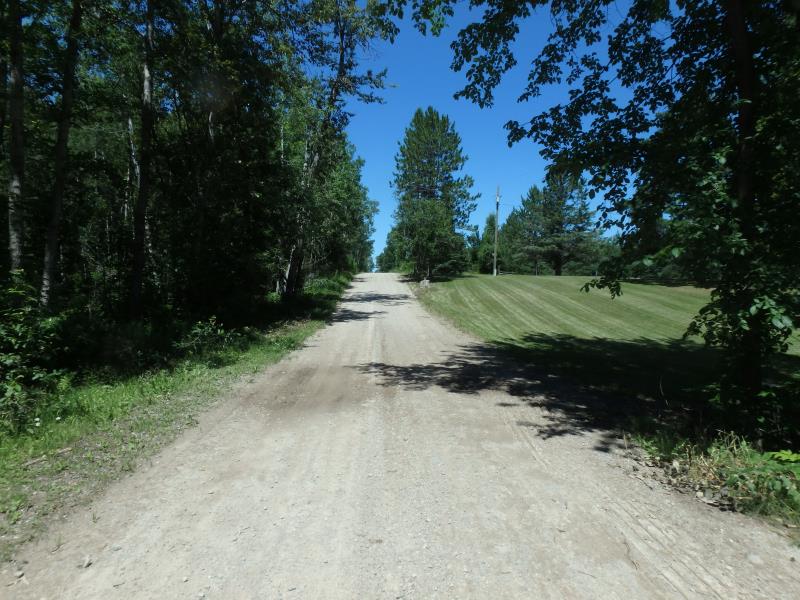

Road Approach - Left

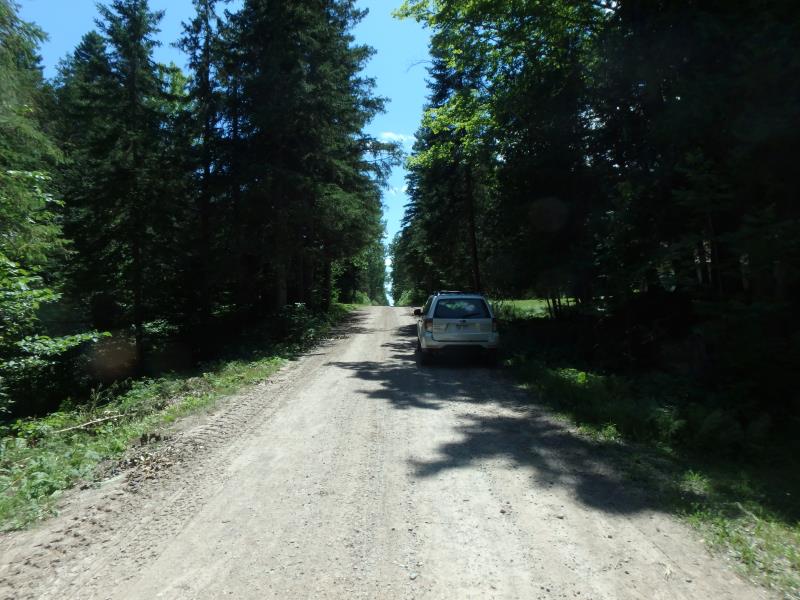

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 30 ft.
, Width 5 ft.
, Height 5 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.2 ft./sec.
Structure Outlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.2 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 24 ft.
, Width 10 ft.
, Depth 2.8 ft.
Road Information
Gravel
County Road
Road Condition: Fair
Road Width at Culvert: 16 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 0.8 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.3 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 233 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.437
Erosion: 0.4484 tons/year
Right Approach
Length: 153 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.402
Erosion: 0.271 tons/year
Erosion Information
Total Erosion at Crossing: 0.7194 tons/year
Summary Information
