Road Stream Crossing Site CLHW_OR-061
Ocqueoc River Watershed, Unnamed stream
Balch Rd
Bearinger Twp,
Presque Isle County
Information collected by:
Site Location
GPS Coordinates: 45.46525
, -84.13713
T36N
R2E
Sec 25
Owned by State
Structure is NOT Perched
Total Erosion: 0.4408 tons/year
Severity: Minor
Year Inventoried: 2016
Site ID

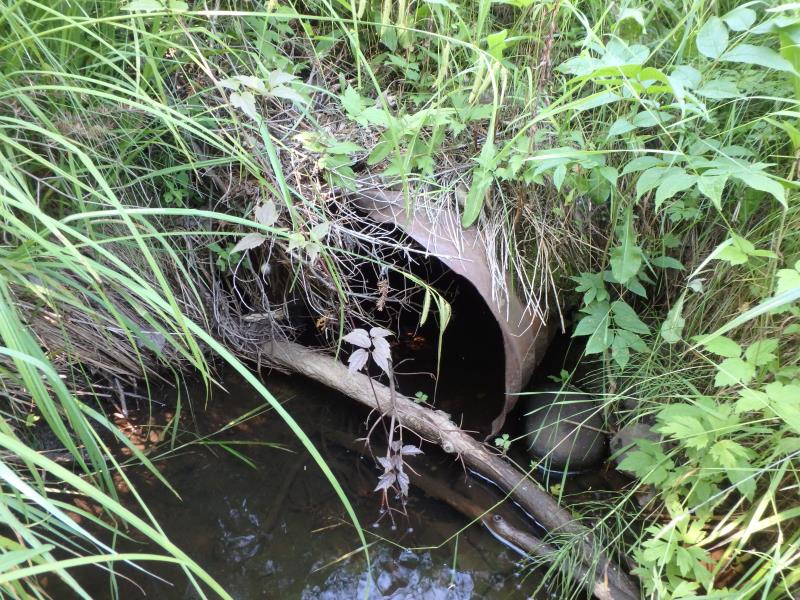

Inlet

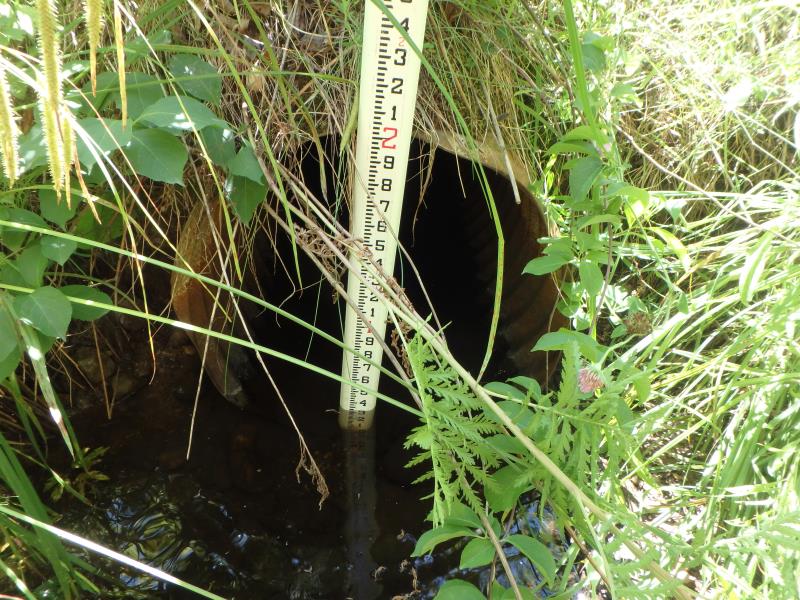

Outlet

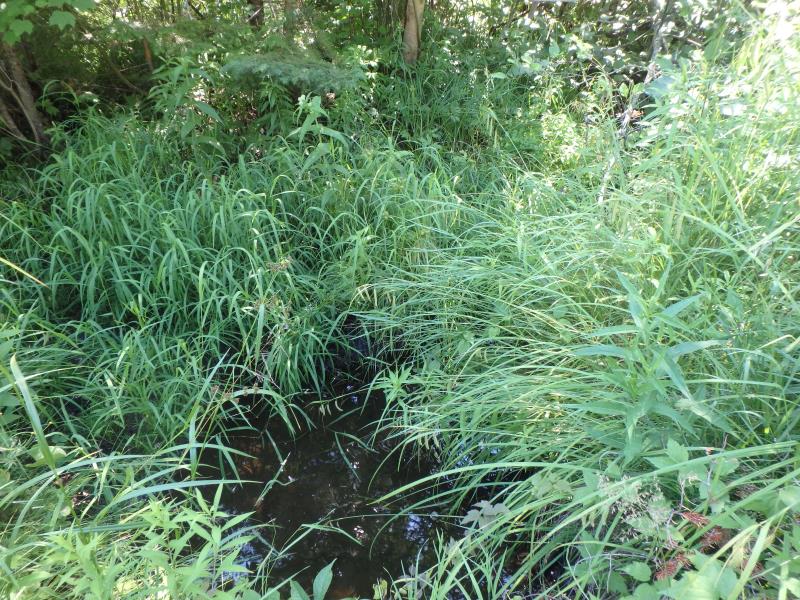

Upstream Conditions

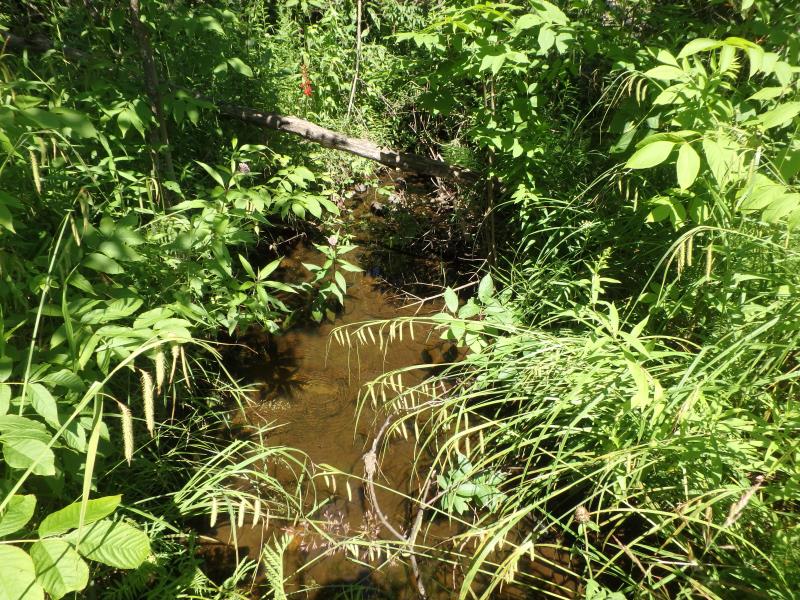

Downstream Conditions

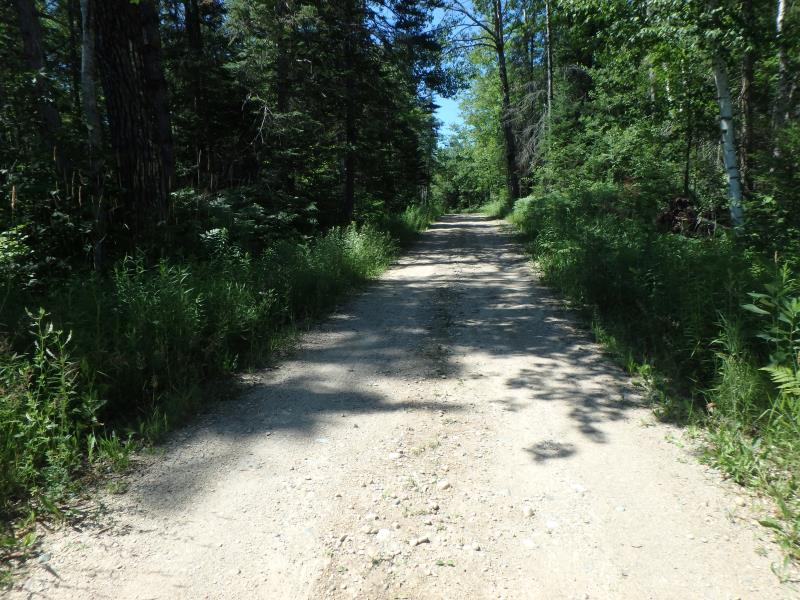

Road Approach - Left

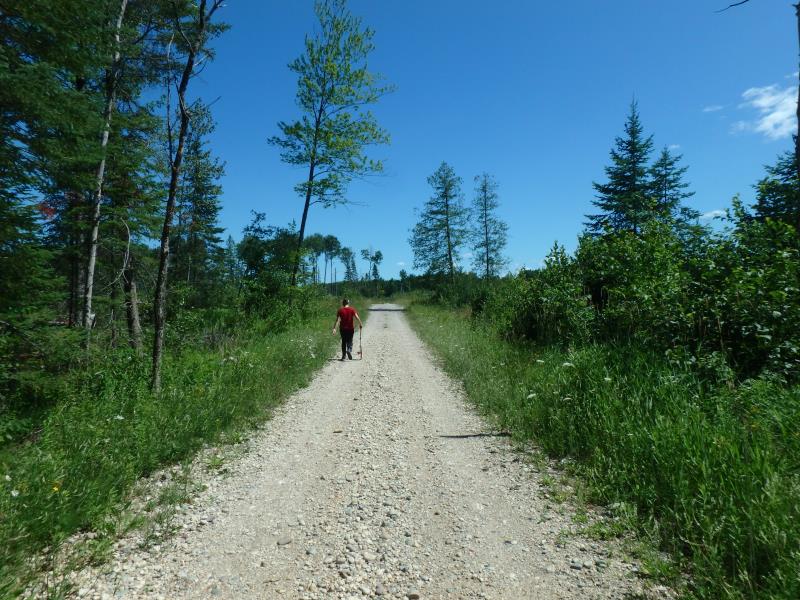

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Poor
Structure Interior: smooth
Structure is Rusted through
Dimensions of Structure: Length 24 ft.
, Width 2 ft.
, Height 2 ft.
Percentage Plugged:
Inlet: 26% to 50%
Outlet: 0%
In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Additional Comments
No water flow
Stream Information
Stream Flow: None
Road Information
Gravel
County Road
Road Condition: Fair
Road Width at Culvert: 11 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 150 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.4
Erosion: 0.1818 tons/year
Right Approach
Length: 199 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.429
Erosion: 0.2589 tons/year
Erosion Information
Total Erosion at Crossing: 0.4408 tons/year
Summary Information
