Road Stream Crossing Site TBW_TBAC117
Thunder Bay River Watershed, Bear Creek
Hubbard Lake Trail
Mitchell Twp,
Alcona County
Information collected by:
Site Location
GPS Coordinates: 44.75509
, -83.77195
T27N
R5E
Sec 01
Owned by Private
Fish Passability 0
Perch Height: 0.1 ft.
Total Erosion: 0 tons/year
Severity: Severe
Year Inventoried: 2017
Site ID

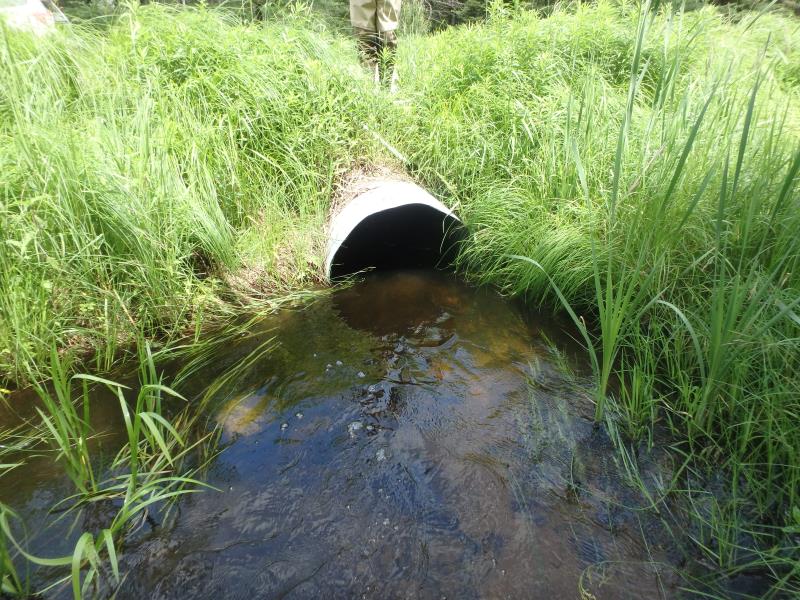

Inlet

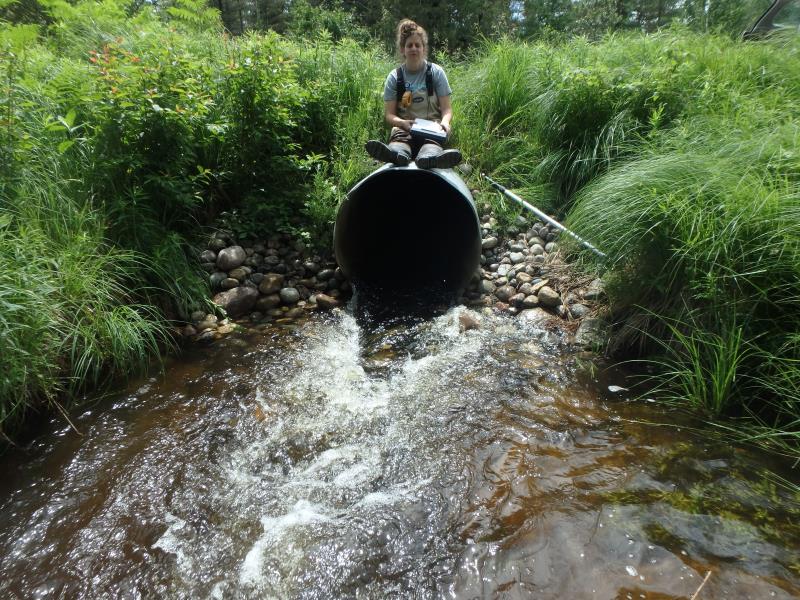

Outlet

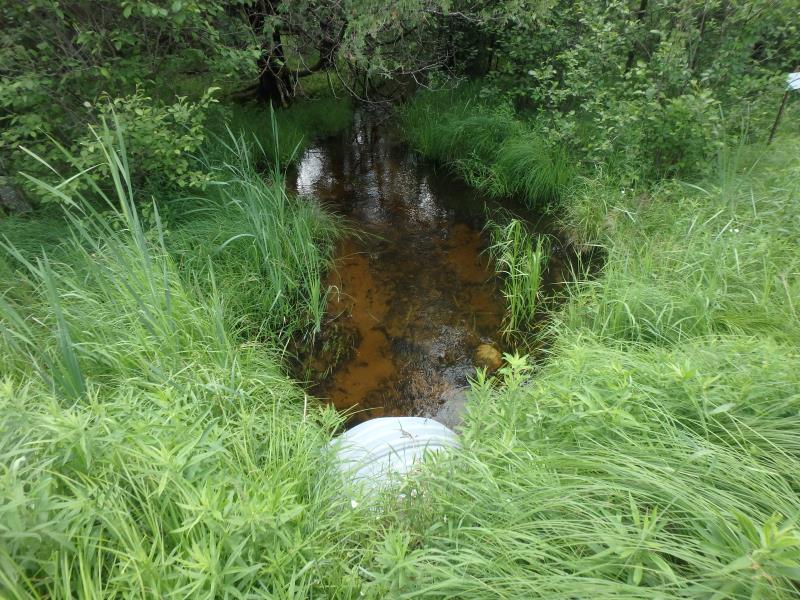

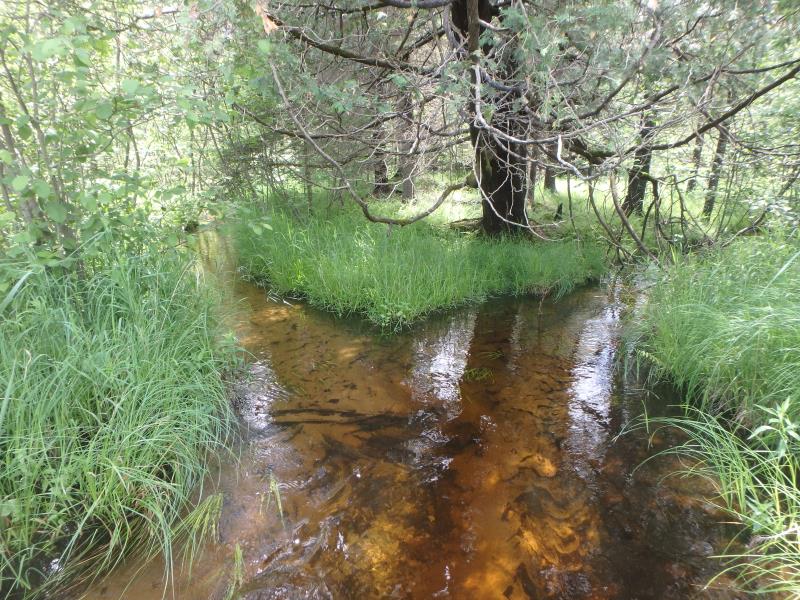

Upstream Conditions
Upstream Conditions

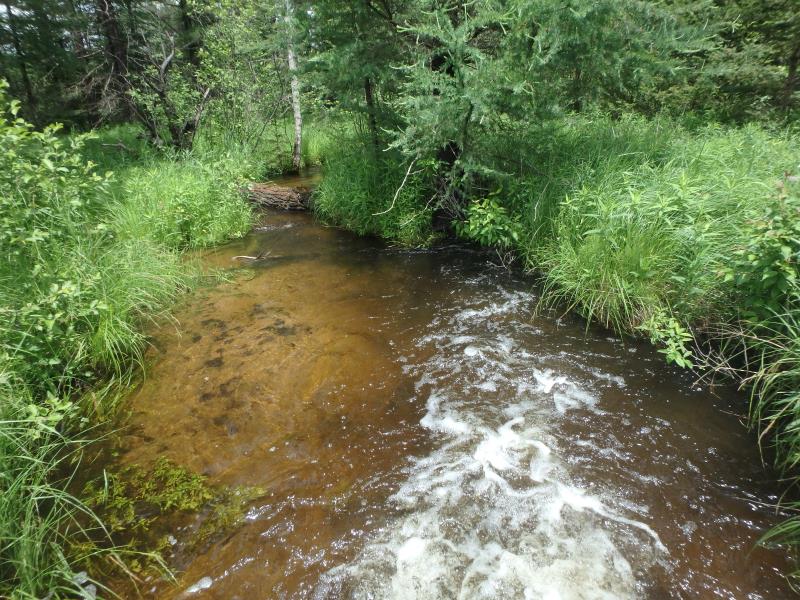

Downstream Conditions

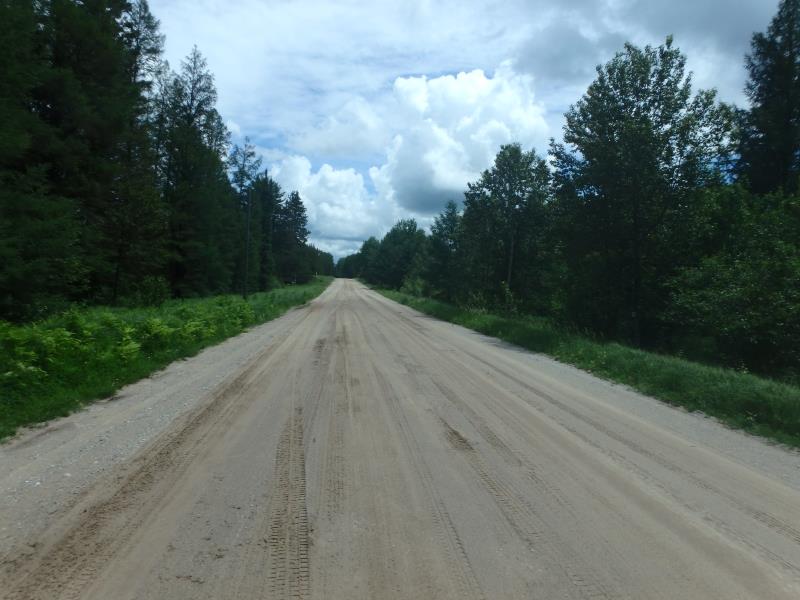

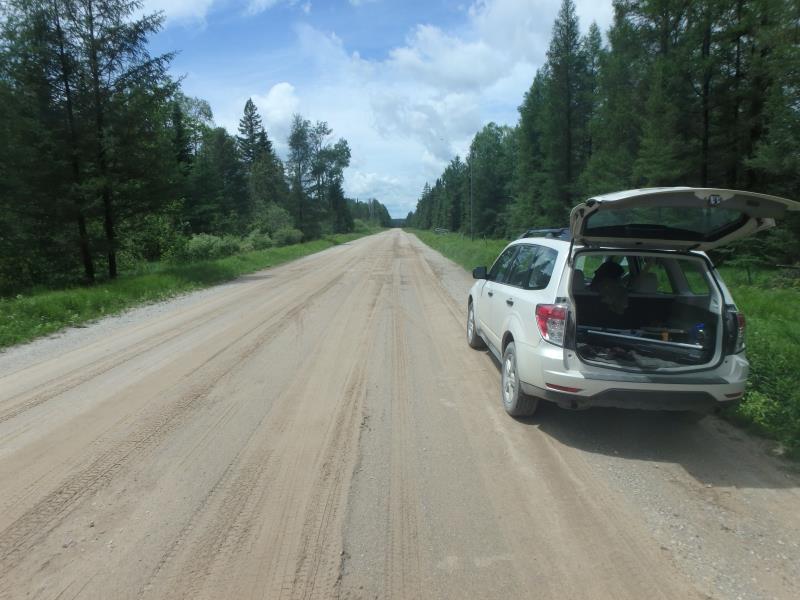

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 50 ft.
, Width 3 ft.
, Height 3 ft.
Perch Height: 0.1 ft.
Structure Inlet
Water Depth: 1.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.4 ft./sec.
Structure Outlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 8.3 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Bankfull
Scour Pool: Length 17 ft.
, Width 13 ft.
, Depth 2.4 ft.
Riffle Information
Water Depth: 2 ft.
Bankfull Width: 10 ft.
Wetted Width: 7 ft.
Water Velocity: 1.4 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Sand
County Road
Road Condition: Fair
Road Width at Culvert: 30 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 1.3 ft.
Slope: 1:2
Downstream
Fill Depth: 1.9 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 0 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.26
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 0
Fish Passage is an area of concern for this site.
VELOCITY
These non-native species were observerd at this site: Crown Vetch
