Road Stream Crossing Site TBW_TBAC83
Thunder Bay River Watershed, Indian Creek
M 65
Mitchell Twp,
Alcona County
Information collected by:
Site Location
GPS Coordinates: 44.84157
, -83.82451
T28N
R5E
Sec 03
Owned by Private
Fish Passability 0
Perch Height: 0.5 ft.
Total Erosion: 0.5841 tons/year
Severity: Severe
Year Inventoried: 2017
Site ID

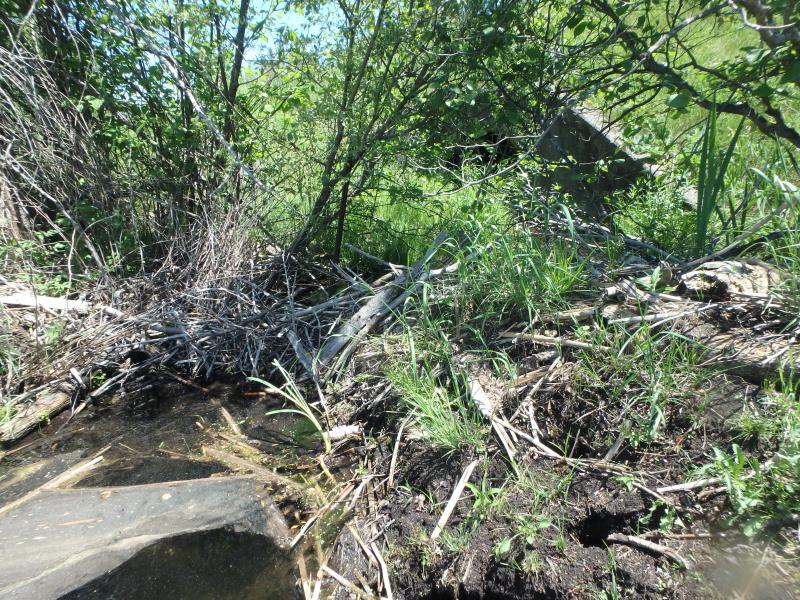

Inlet

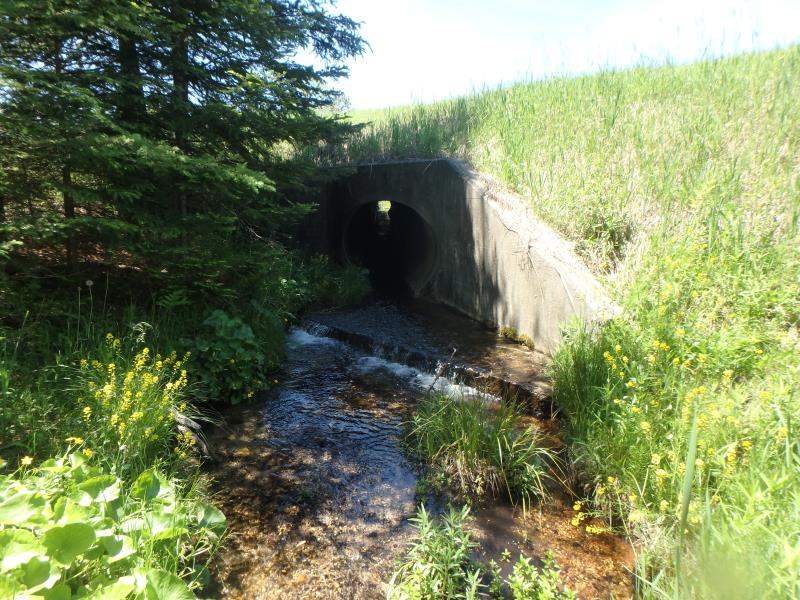

Outlet

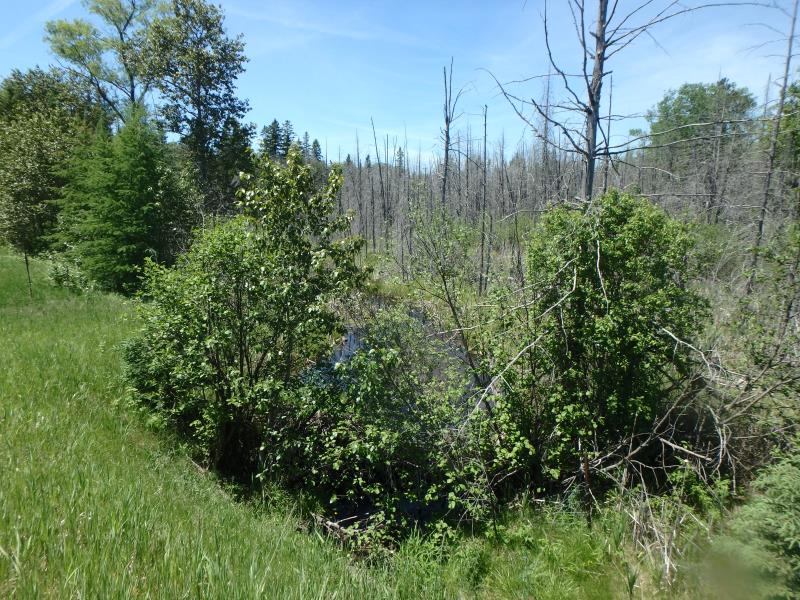

Upstream Conditions

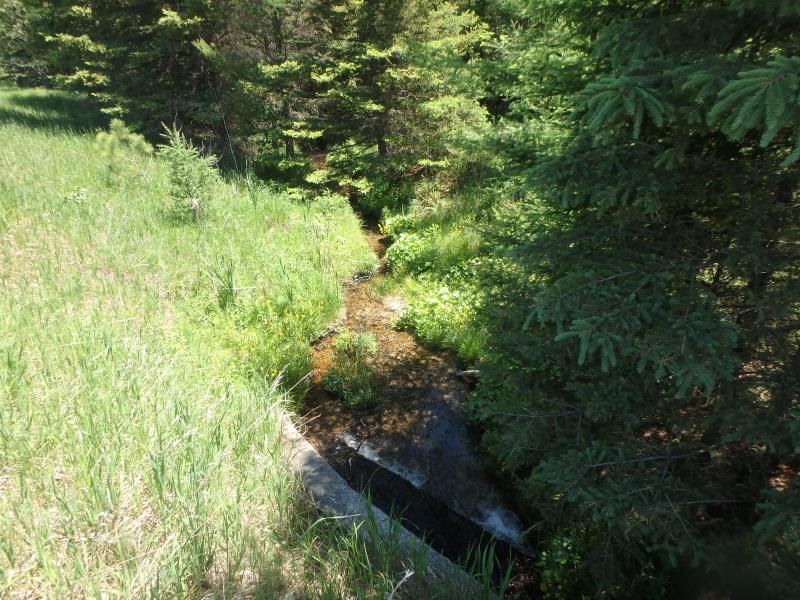

Downstream Conditions

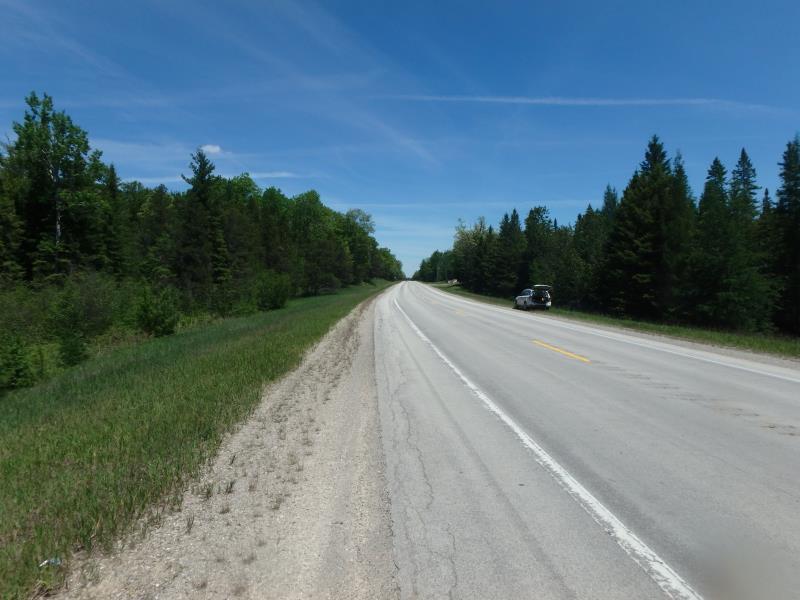

Road Approach - Left

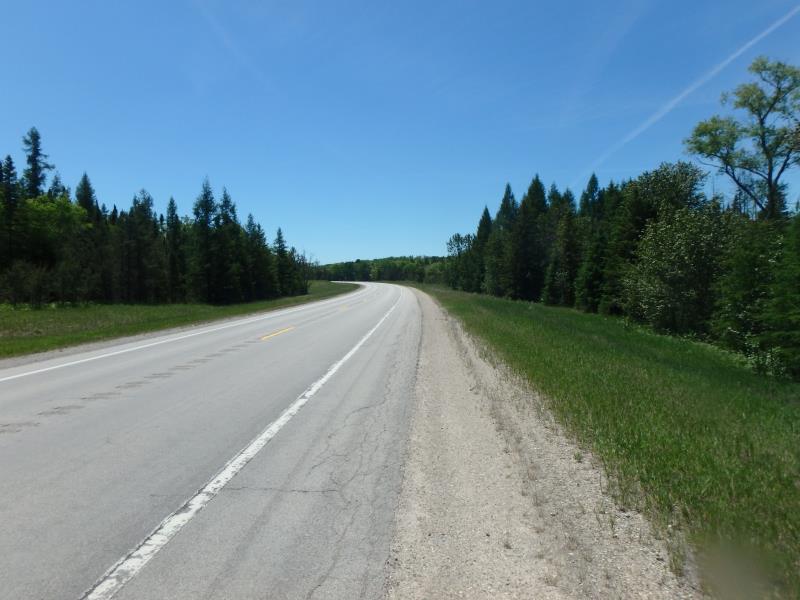

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Other
Outlet Type: Outlet Apron
Structure Material: Concrete
Structure Substrate: None
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 135 ft.
, Width 4 ft.
, Height 4 ft.
Perch Height: 0.5 ft.
Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.8 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.7 ft./sec.
*Water Velocities were measured 0.2 ft. below Surface
(with Meter)
Additional Comments
WING WALLS WERE DIFFERENT AT EACH END. EACH END HAD A 30 AND 70 DEGREE WALL. OUTLET APRON WAS PERCHED
Stream Information
Stream Flow: Less than Bankfull
Upstream Pond: Length 30 ft.
, Width 15 ft.
Riffle Information
Water Depth: 0.6 ft.
Bankfull Width: 8 ft.
Wetted Width: 4.9 ft.
Water Velocity: 0.4 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
State Road
Road Condition: Good
Road Width at Culvert: 31 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 6.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 5.5 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.5841 tons/year
Right Approach
Length: 0 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.26
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0.5841 tons/year
Extent of Erosion: Stabilized
Summary Information
Fish Passability 0
Fish Passage is an area of concern for this site.
VELOCITY
These non-native species were observerd at this site: Mullein
