Road Stream Crossing Site TBW_TBAP239
Thunder Bay River Watershed, King Creek
King Settlement Road
Wilson Twp,
Alpena County
Information collected by:
Site Location
GPS Coordinates: 45.052706
, -83.614156
T31N
R7E
Sec 29/30
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.0112 tons/year
Severity: Minor
Year Inventoried: 2017

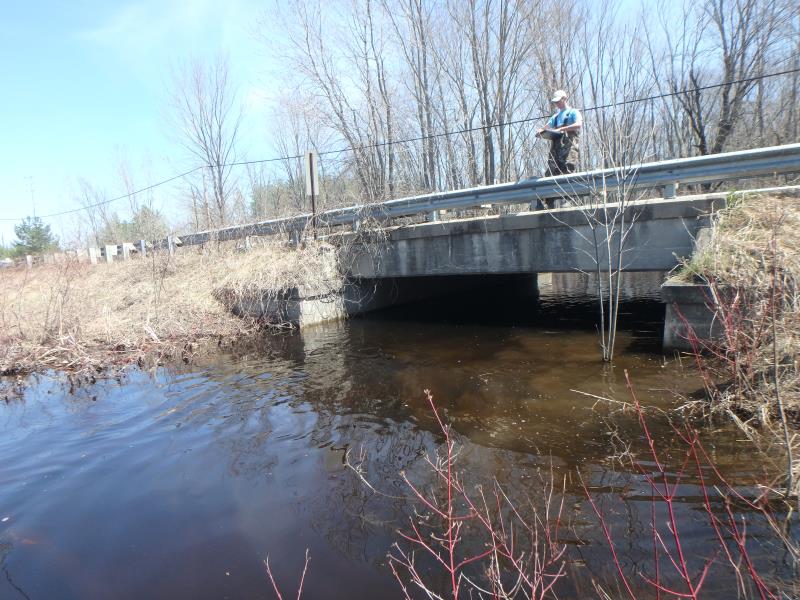

Inlet

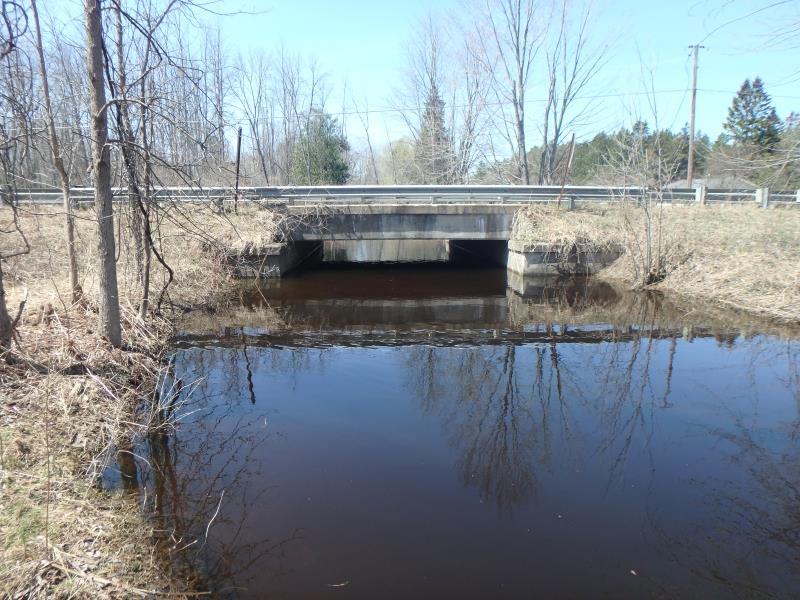

Outlet

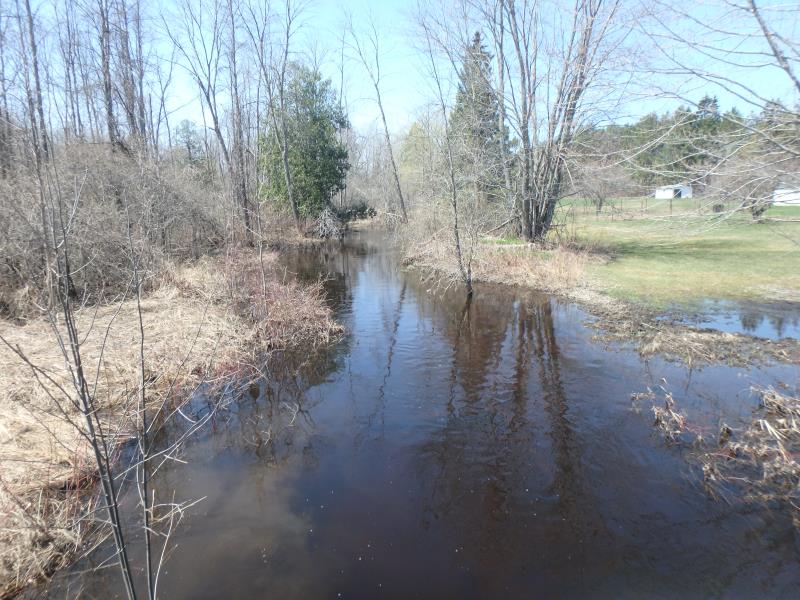

Upstream Conditions

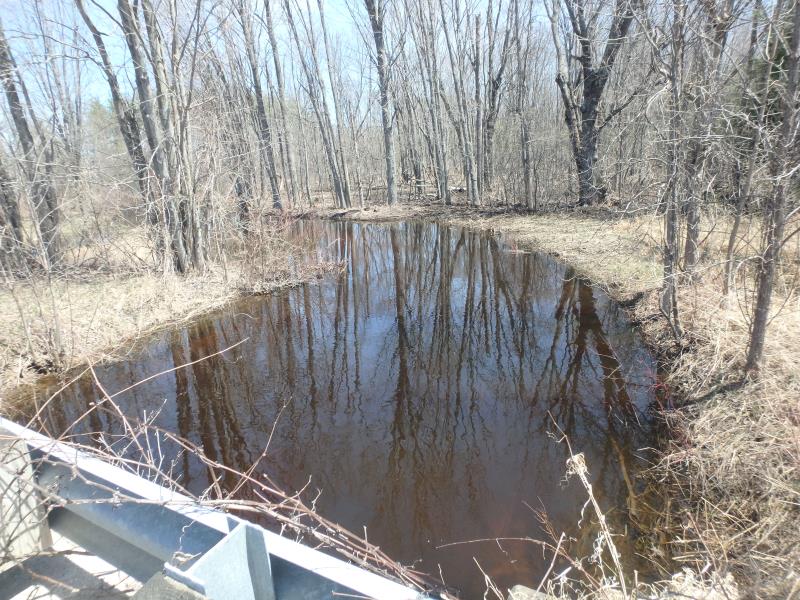

Downstream Conditions

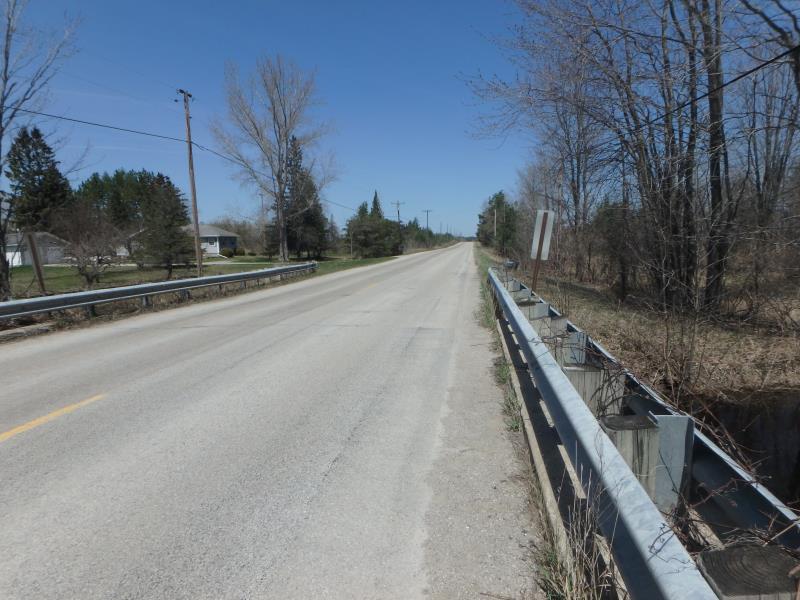

Road Approach - Left

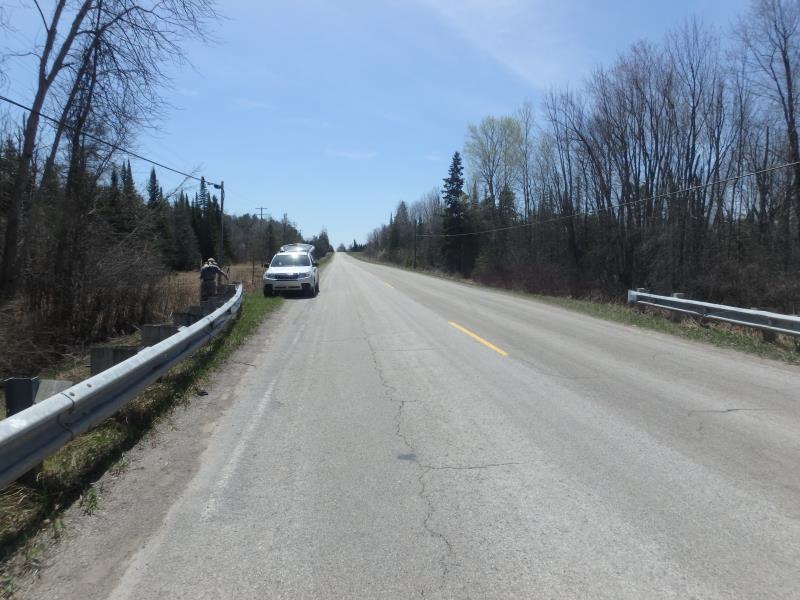

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Wingwall 10-30 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 30 ft.
, Width 19.6 ft.
, Height 6.3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.7 ft./sec.
Structure Outlet
Water Depth: 3.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.4 ft./sec.
*Water Velocities were measured 1 ft. below Surface
(with Meter)
Additional Comments
DEAD ASH FLOODPLAIN
Stream Information
Stream Flow: More than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 2.9 ft.
Bankfull Width: 26 ft.
Wetted Width: 29 ft.
Water Velocity: 1 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 24 ft.
Location of Low Point: Other
Runoff Path: Ditch
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 282 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0112 tons/year
Erosion Information
Total Erosion at Crossing: 0.0112 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 1
