Road Stream Crossing Site TBW_TBAP240
Thunder Bay River Watershed, King Creek
Taylor Hawkes Road
Wilson Twp,
Alpena County
Information collected by:
Site Location
GPS Coordinates: 45.031562
, -83.661572
T30N
R6E
Sec 01
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 8.1818 tons/year
Severity: Severe
Year Inventoried: 2017
Inlet
Outlet

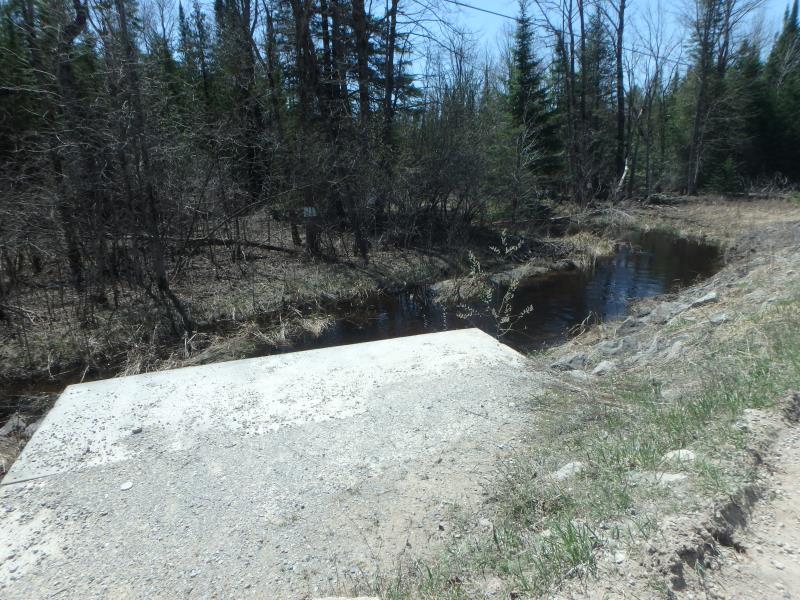

Upstream Conditions

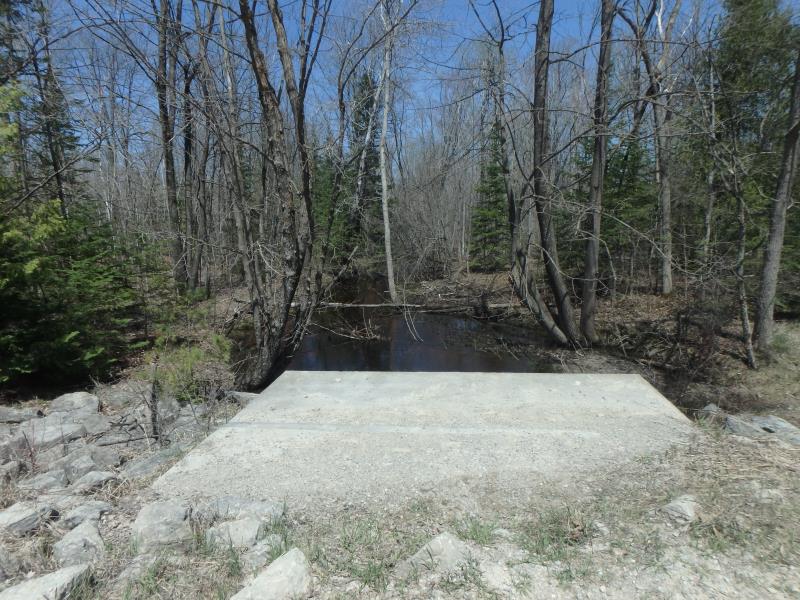

Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Mixture
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 68 ft.
, Width 15 ft.
, Height 5.5 ft.
Structure is NOT Perched

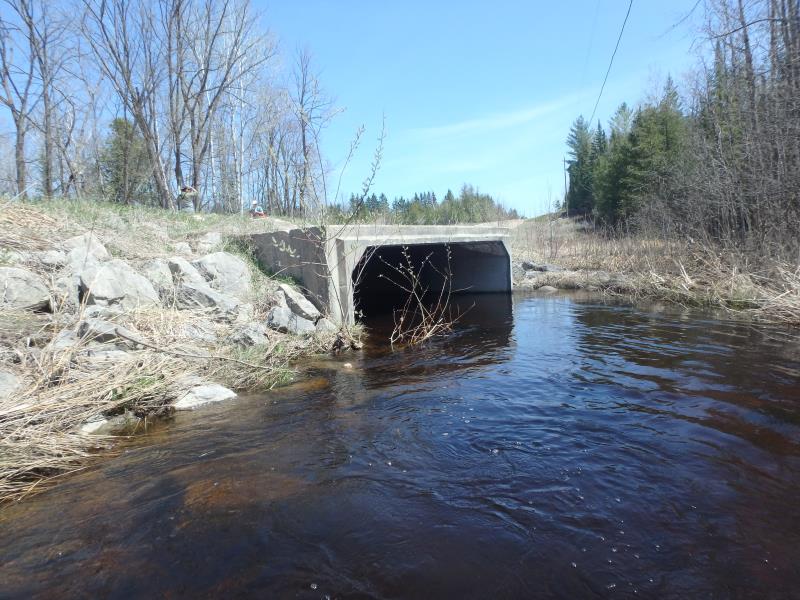

Structure Inlet
Water Depth: 2.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.7 ft./sec.

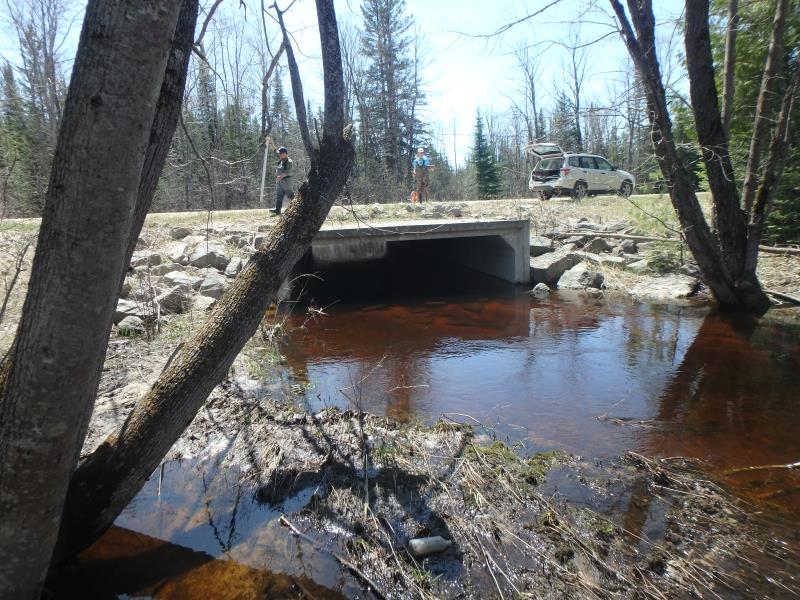

Structure Outlet
Water Depth: 2.45 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.6 ft./sec.
*Water Velocities were measured 1 ft. below Surface
(with Meter)
Stream Information
Stream Flow: More than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 2.3 ft.
Bankfull Width: 12.6 ft.
Wetted Width: 22.5 ft.
Water Velocity: 1.2 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Gravel
County Road
Road Condition: Fair
Road Width at Culvert: 32 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1 ft.
Slope: More than 1:2
Approaches

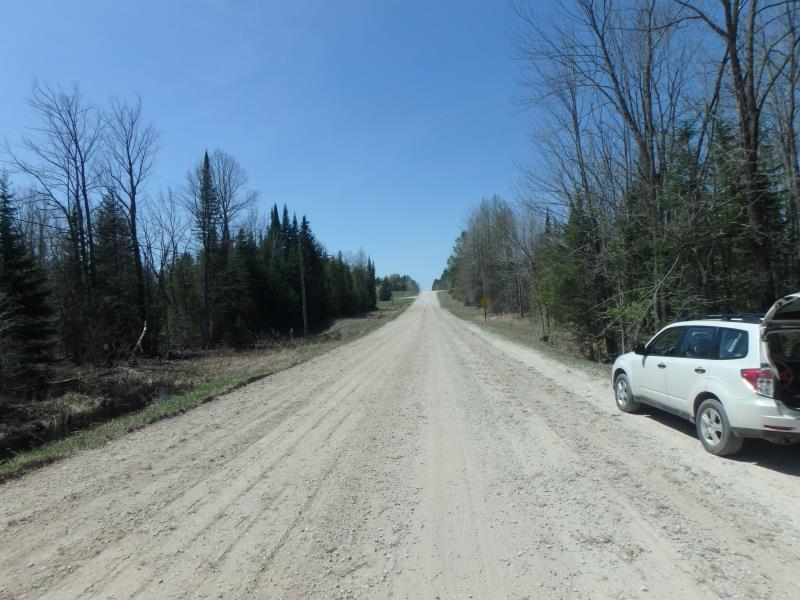

Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach

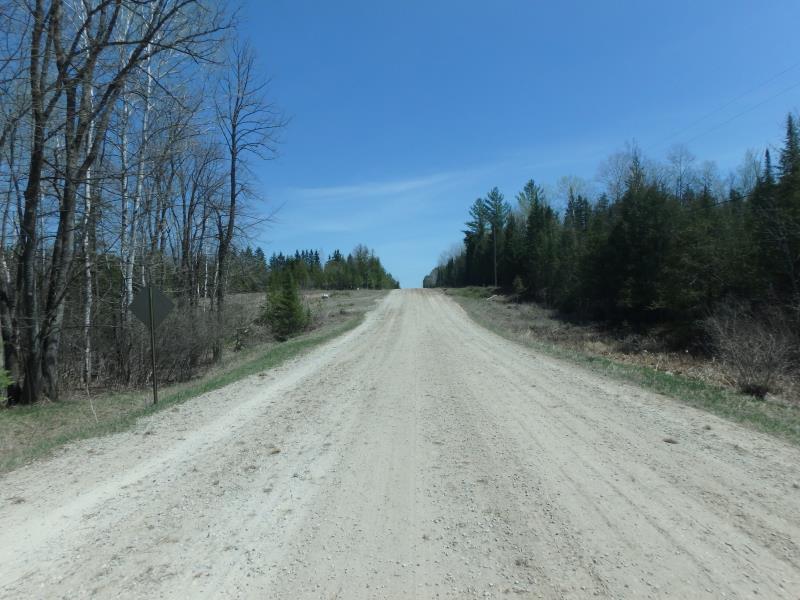

Length: 550 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 1.688
Erosion: 8.1818 tons/year
Erosion Information
Total Erosion at Crossing: 8.1818 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 1
