Road Stream Crossing Site TBW_TBAP242
Thunder Bay River Watershed, Bean Creek
Taylor Hawkes Road
Green Twp,
Alpena County
Information collected by:
Site Location
GPS Coordinates: 45.03151
, -83.703
T31N
R6E
Sec 33
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 5.0248 tons/year
Severity: Severe
Year Inventoried: 2017

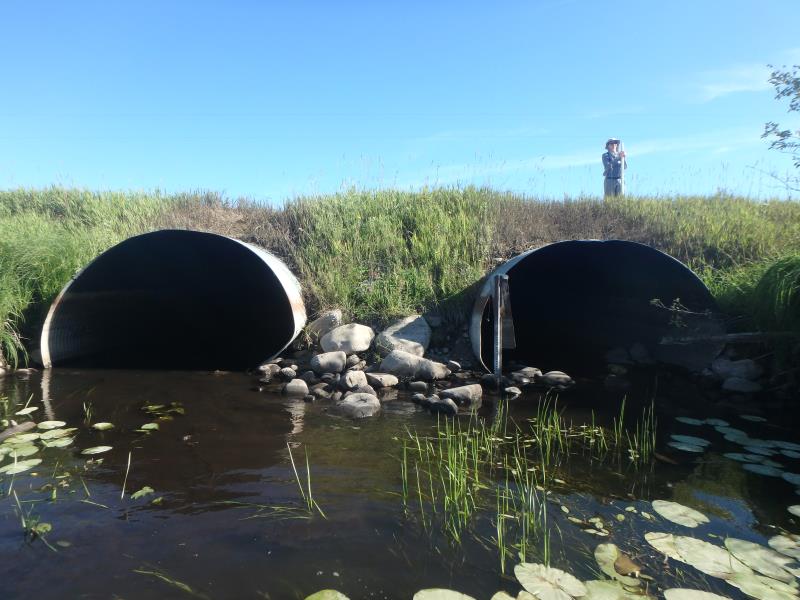

Inlet

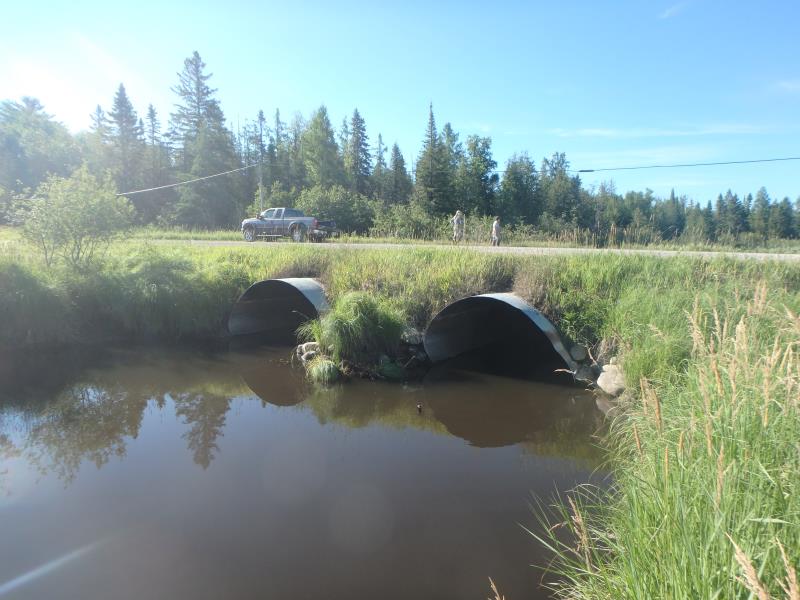

Outlet

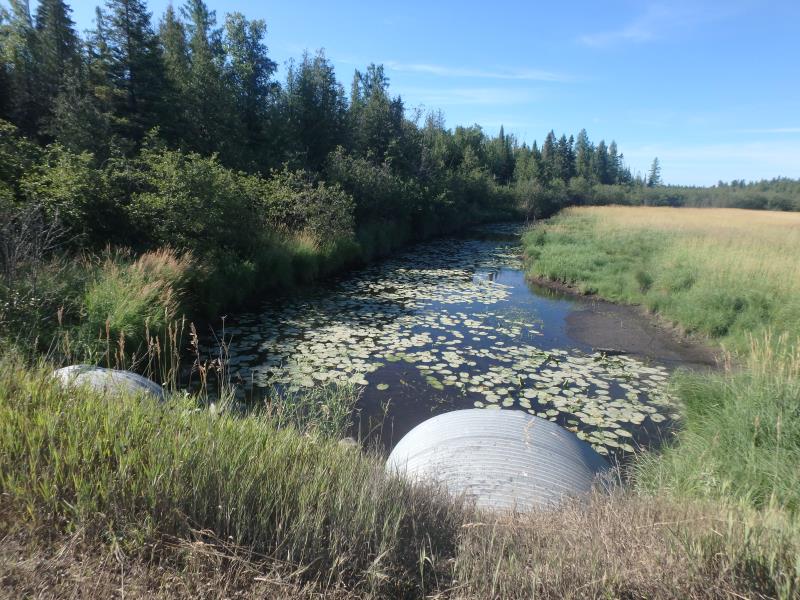

Upstream Conditions

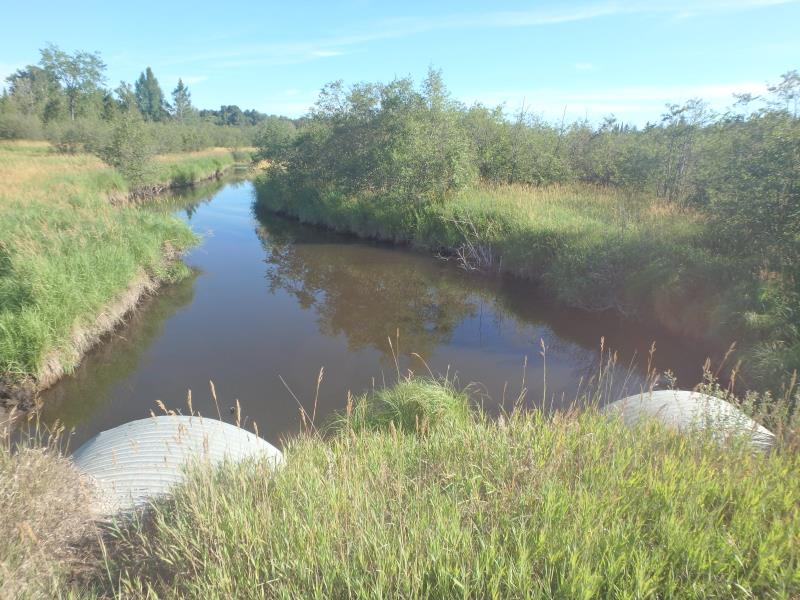

Downstream Conditions

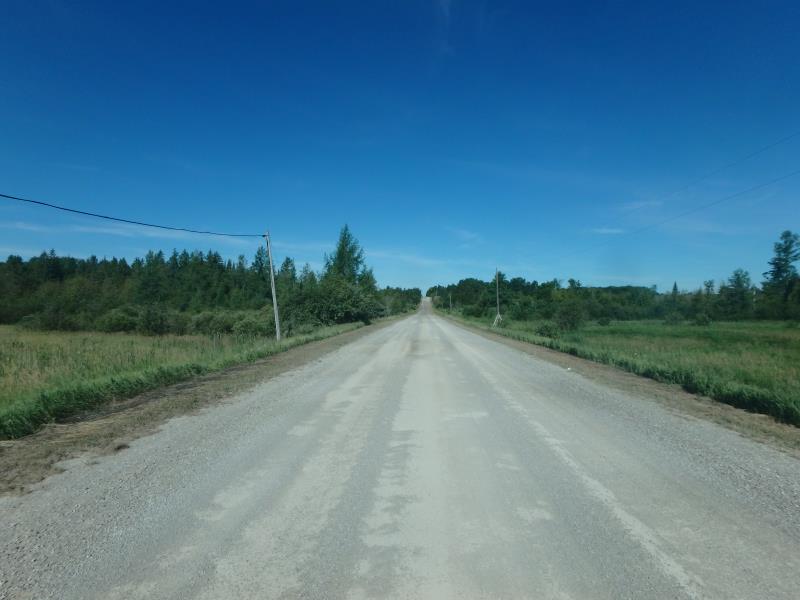

Road Approach - Left

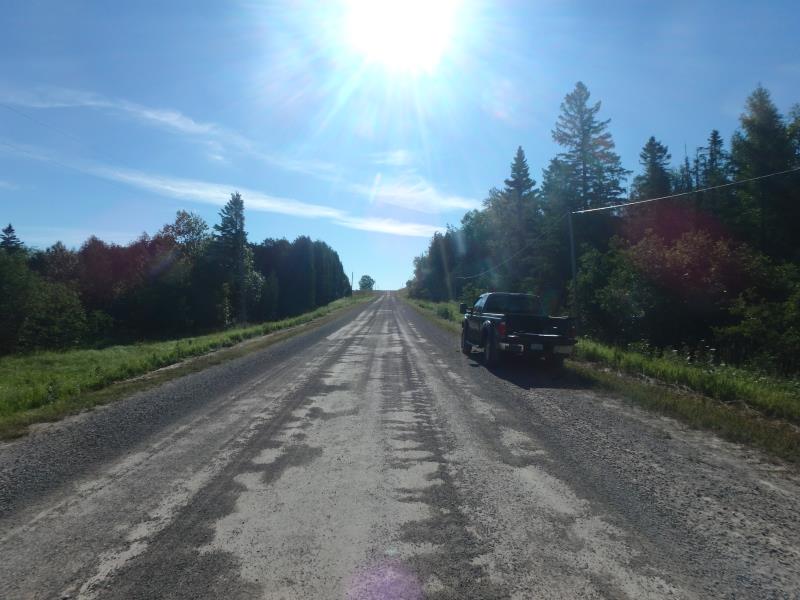

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Ellipse
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Rock
General Conditions: Fair
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
1 |
9.1 ft. |
60 ft. |
5.6 ft. |
Metal |
2 |
9.3 ft. |
60 ft. |
5.5 ft. |
Metal |
Structure Interior: corrugated
Dimensions of Structure: Length 60 ft.
, Width 9.1 ft.
, Height 5.6 ft.
Percentage Crushed:
Inlet: 0%
Outlet: 0%
In Pipe: 1% to 25%
Structure is NOT Perched
Structure Inlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 0.5 ft.
Water Velocity*: 0.6 ft./sec.
Structure Outlet
Water Depth: 1.6 ft.
Embedded Depth of Structure: 0.5 ft.
Water Velocity*: 0.3 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface
(with Meter)
Additional Comments
Slow and mucky
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 2.5 ft.
Bankfull Width: 30 ft.
Wetted Width: 26 ft.
Water Velocity: 0.1 ft./sec.
(Measured with Meter)
Dominant Substrate: Silt
Road Information
Gravel
County Road
Road Condition: Fair
Road Width at Culvert: 32 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.6 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.6 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 5.0248 tons/year
Erosion Information
Total Erosion at Crossing: 5.0248 tons/year
Extent of Erosion: Minor
Notes: No visible erosion. Slight potential for road material washing in.
Summary Information
Fish Passability 0.9
