Road Stream Crossing Site TBW_TBAP85
Thunder Bay River Watershed, Rayburn Creek
Beaver Shores Drive
Green Twp,
Alpena County
Information collected by:
Site Location
GPS Coordinates: 45.0591
, -83.78573
T30N
R5E
Sec 35
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0 tons/year
Severity: Moderate
Year Inventoried: 2017
Site ID

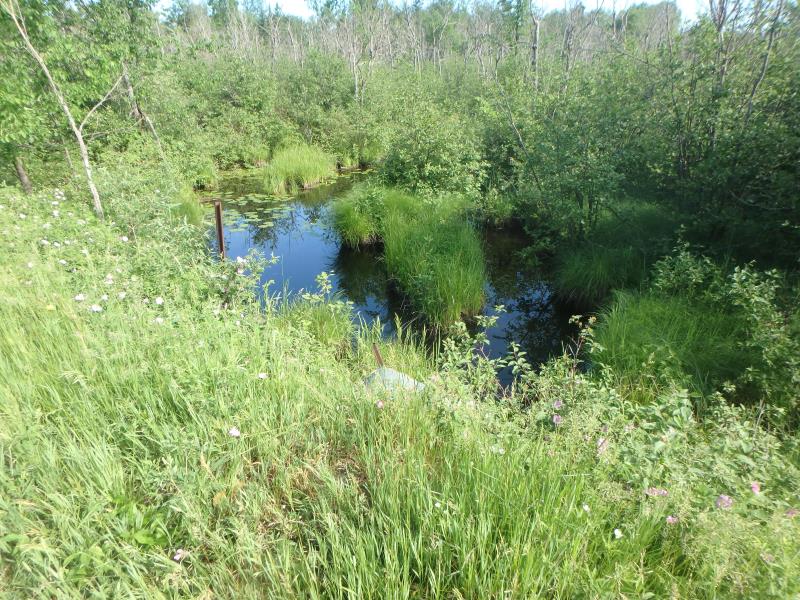

Inlet
Outlet
Upstream Conditions
Downstream Conditions

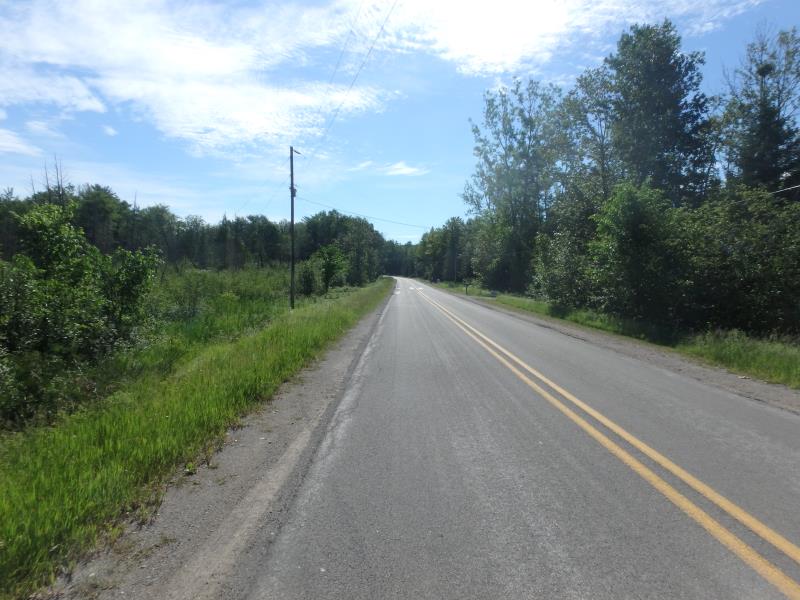

Road Approach - Left

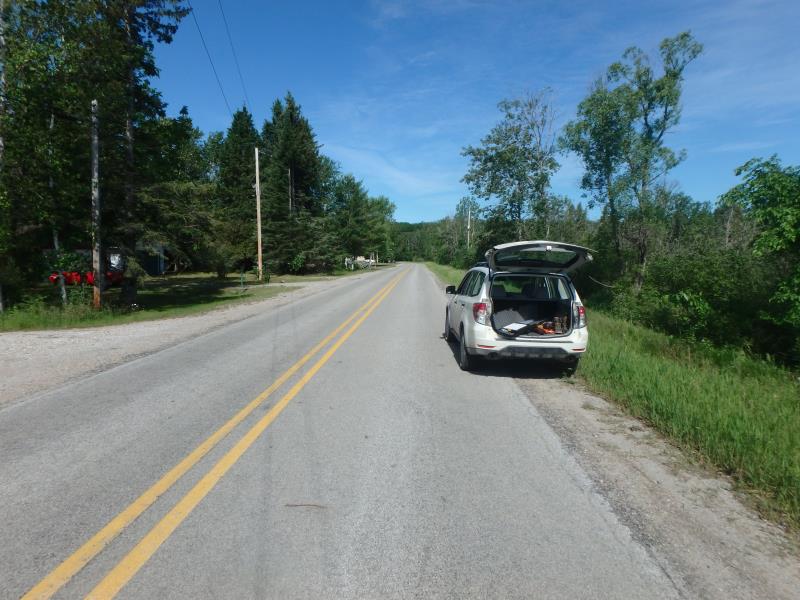

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Round
Inlet Type: Projecting

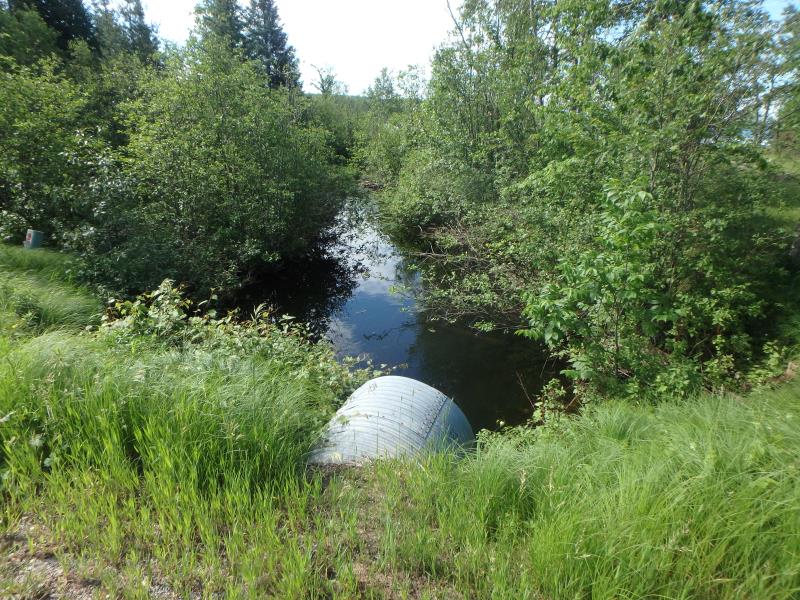

Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
1 |
4 ft. |
49 ft. |
4 ft. |
Metal |
2 |
4 ft. |
49 ft. |
4 ft. |
Metal |
Dimensions of Structure: Length 49 ft.
, Width 4 ft.
, Height 4 ft.
Structure is NOT Perched

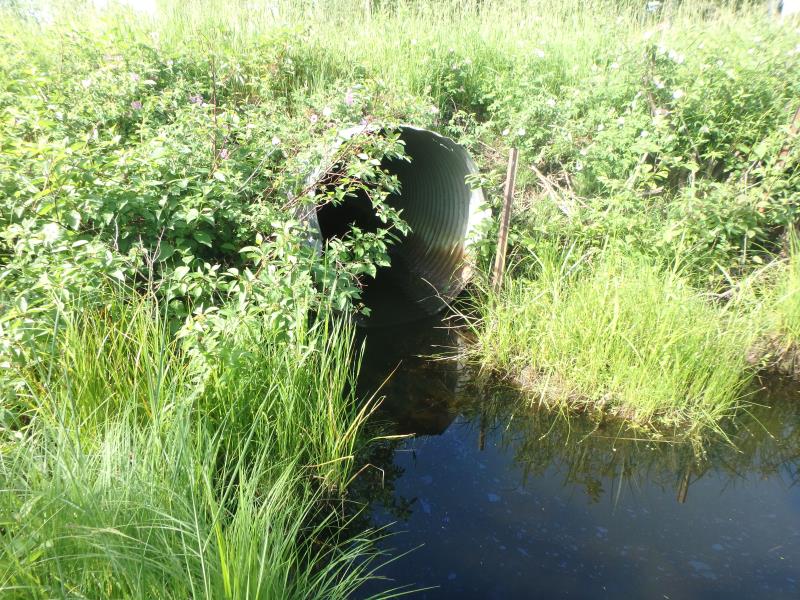

Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.4 ft./sec.

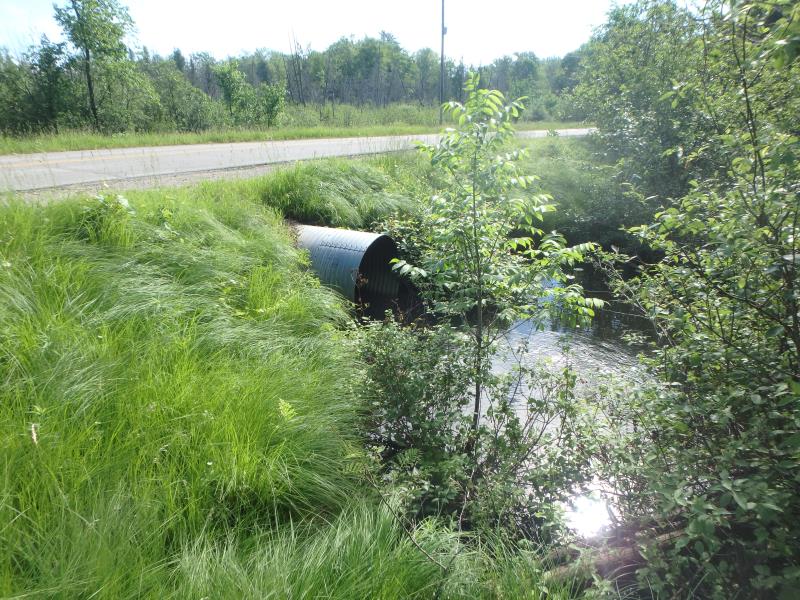

Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.4 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Additional Comments
CULVERT #2 IS MAIN FLOW, TOO MUCKY TO REACH RIFFLE, RIFFLE DEPTH IS AN ESTIMATION
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 3 ft.
Bankfull Width: 30 ft.
Wetted Width: 26 ft.
Water Velocity: 0 ft./sec.
(Measured with Meter)
Dominant Substrate: Organics
Road Information
Paved
Private Road
Road Condition: Good
Road Width at Culvert: 20 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0 tons/year
Extent of Erosion: Minor
Erosion is occurring and corrective actions can be installed to address the problem.
Summary Information
Fish Passability 0.5
Fish Passage is an area of concern for this site.
SHALLOW CULVERT
