Road Stream Crossing Site TBW_TBMO27
Thunder Bay River Watershed, Sheridan Creek
Scenic Route 3
Albert Twp,
Montmorency County
Information collected by:
Site Location
GPS Coordinates: 44.9363
, -84.25423
T29N
R01E
Sec 01
Owned by Private
Fish Passability 0
Structure is NOT Perched
Total Erosion: 4.4826 tons/year
Severity: Severe
Year Inventoried: 2017

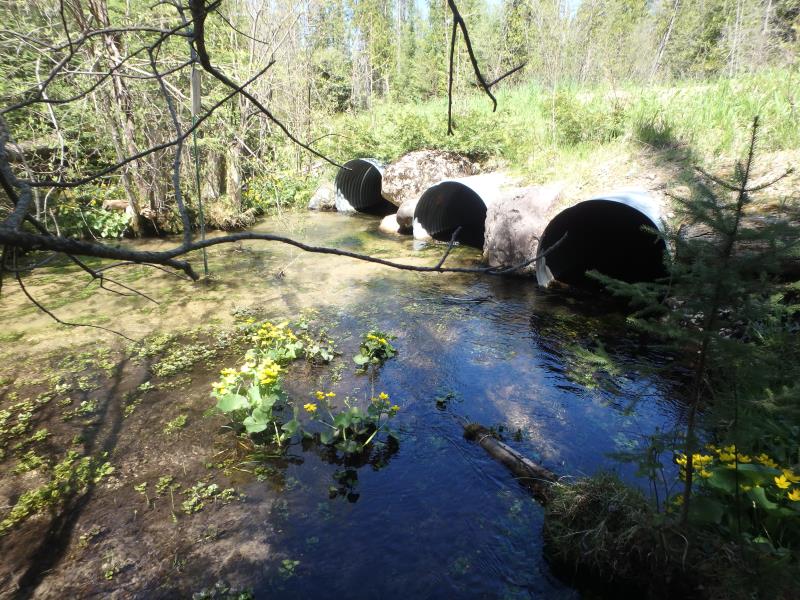

Inlet

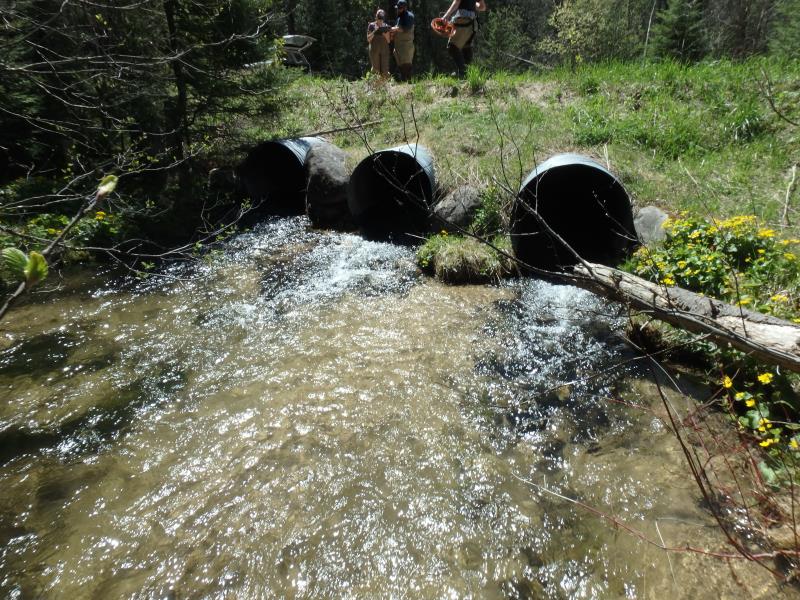

Outlet

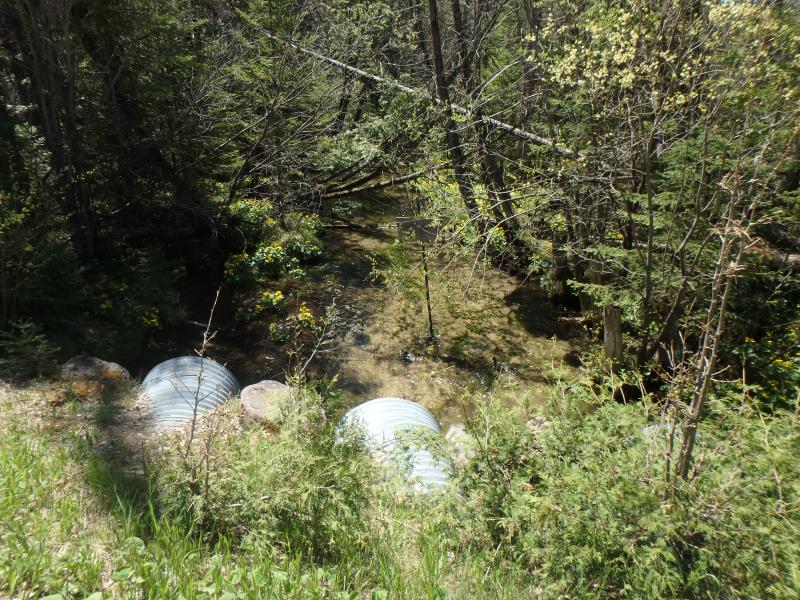

Upstream Conditions

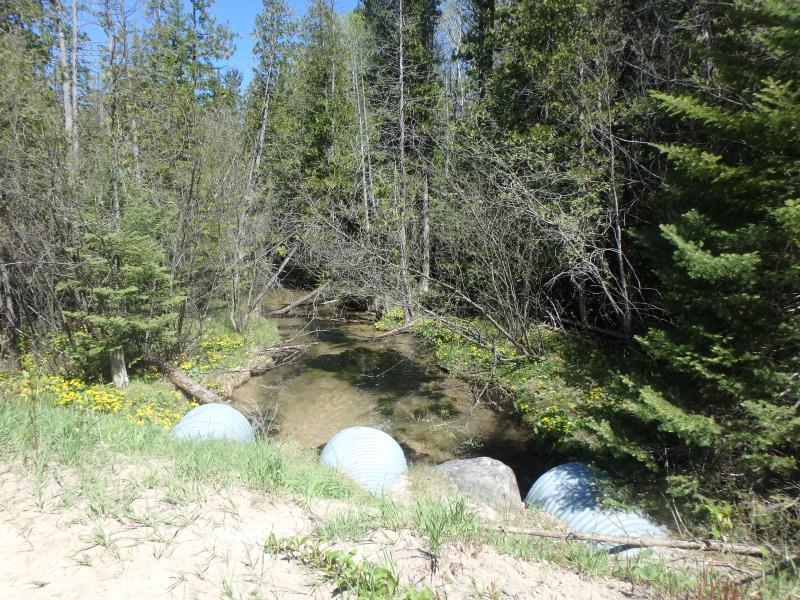

Downstream Conditions

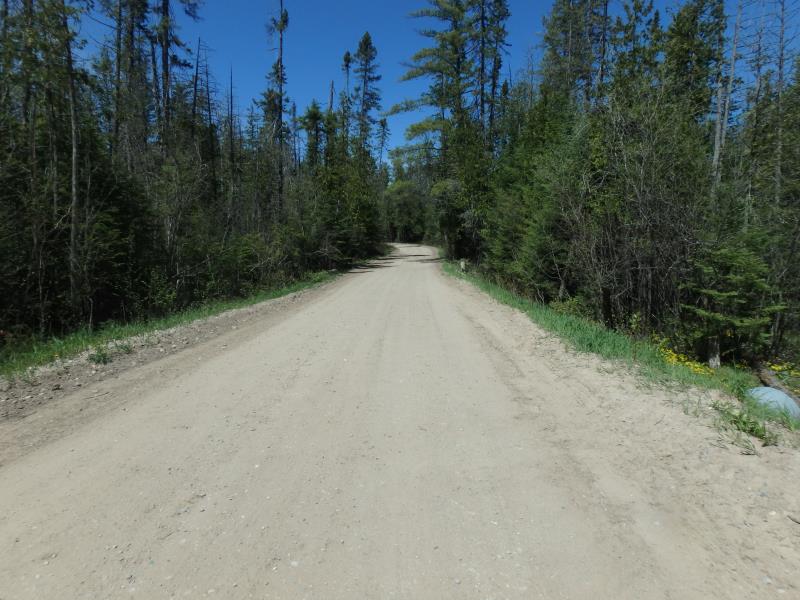

Road Approach - Left

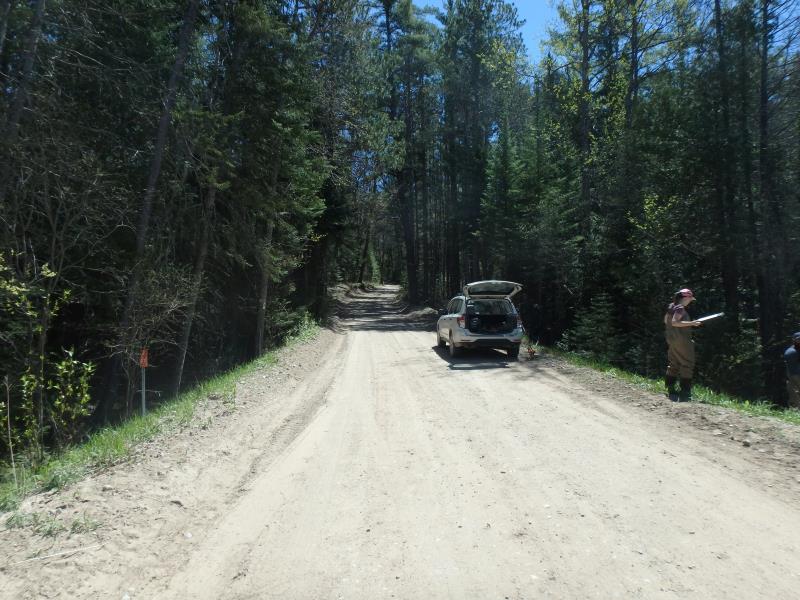

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 3
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
1 |
3.3 ft. |
49 ft. |
3.3 ft. |
Metal |
2 |
3.3 ft. |
49 ft. |
3.3 ft. |
Metal |
3 |
3.3 ft. |
49 ft. |
3.3 ft. |
Metal |
Structure Interior: corrugated
Dimensions of Structure: Length 49 ft.
, Width 3.3 ft.
, Height 3.3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.85 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.1 ft./sec.
Structure Outlet
Water Depth: 0.65 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 5.1 ft./sec.
*Water Velocities were measured 0.1 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 1.3 ft.
Bankfull Width: 11.3 ft.
Wetted Width: 11 ft.
Water Velocity: 1.3 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Sand
County Road
Road Condition: Good
Road Width at Culvert: 18 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 2.7 ft.
Slope: More than 1:2
Downstream
Fill Depth: 6 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Partial
LS Factor: 0.8
Erosion: 3.9669 tons/year
Right Approach
Length: 100 ft.
Slope: 6% to 10%
Vegetation: Partial
LS Factor: 1.04
Erosion: 0.5157 tons/year
Erosion Information
Total Erosion at Crossing: 4.4826 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 0
Fish Passage is an area of concern for this site.
VELOCITY
These non-native species were observerd at this site: Spotted Knapweed
