Road Stream Crossing Site TBW_TBMO39
Thunder Bay River Watershed, Fuller Creek
Mount Tom Road
Albert Twp,
Montmorency County
Information collected by:
Site Location
GPS Coordinates: 44.86273
, -84.17371
T29N
R2E
Sec 34
Owned by State
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 6.6179 tons/year
Severity: Severe
Year Inventoried: 2017
Inlet
Outlet

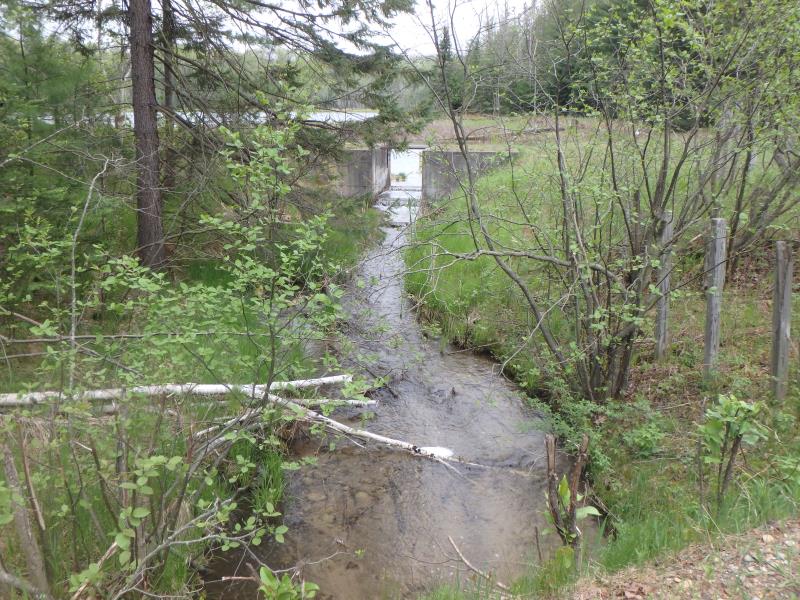

Upstream Conditions

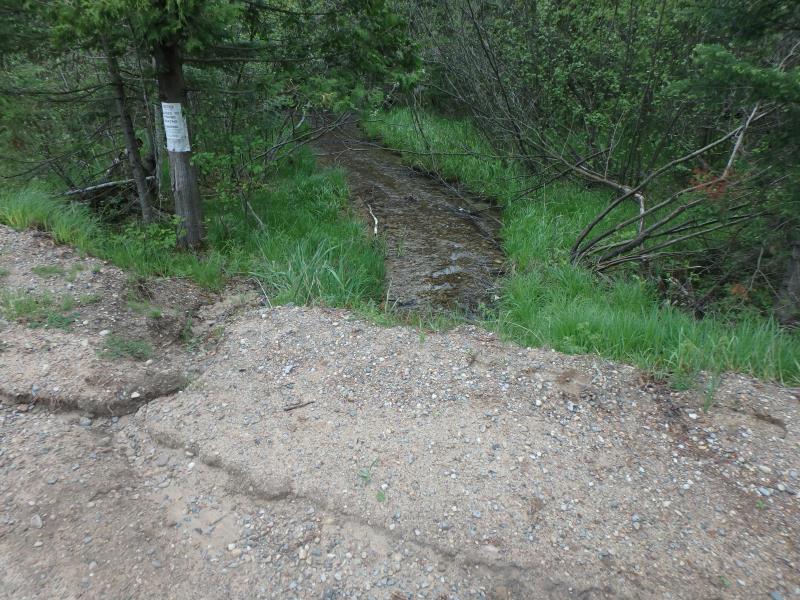

Downstream Conditions

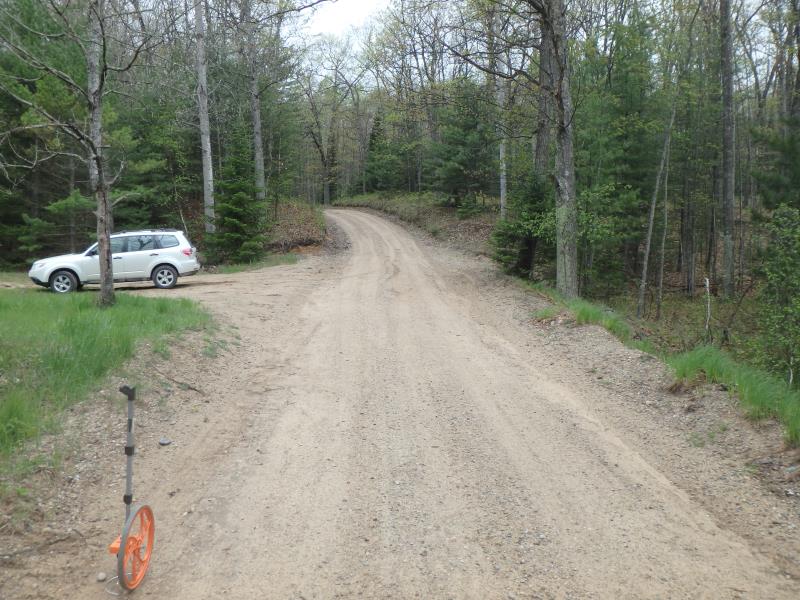

Road Approach - Left

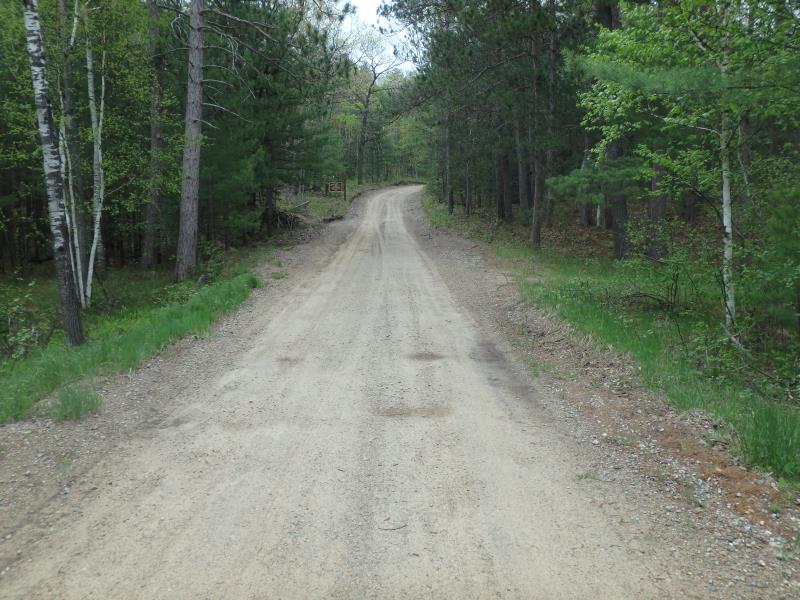

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 26 ft.
, Width 2.5 ft.
, Height 2.5 ft.
Percentage Plugged:
Inlet: 1% to 25%
Outlet: 0%
In Pipe: 0%
Structure is NOT Perched

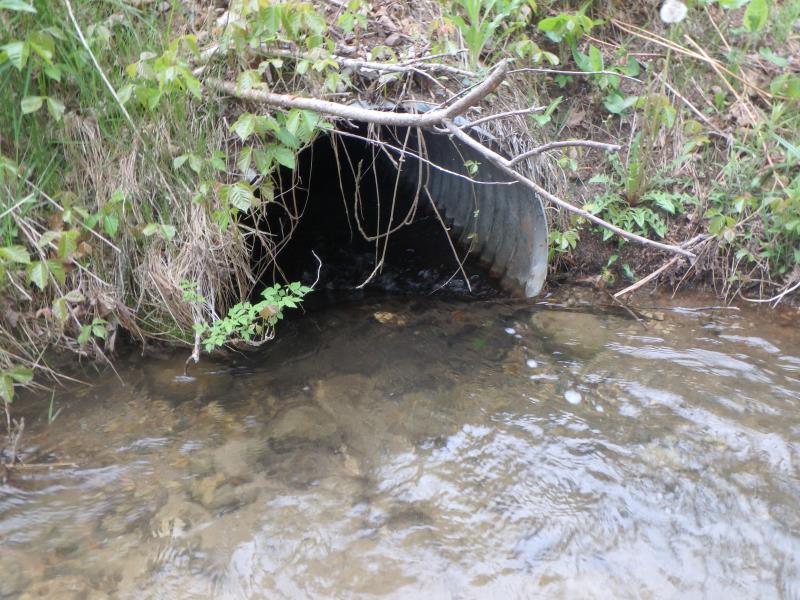

Structure Inlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 1.5 ft.
Water Velocity*: 1.1 ft./sec.

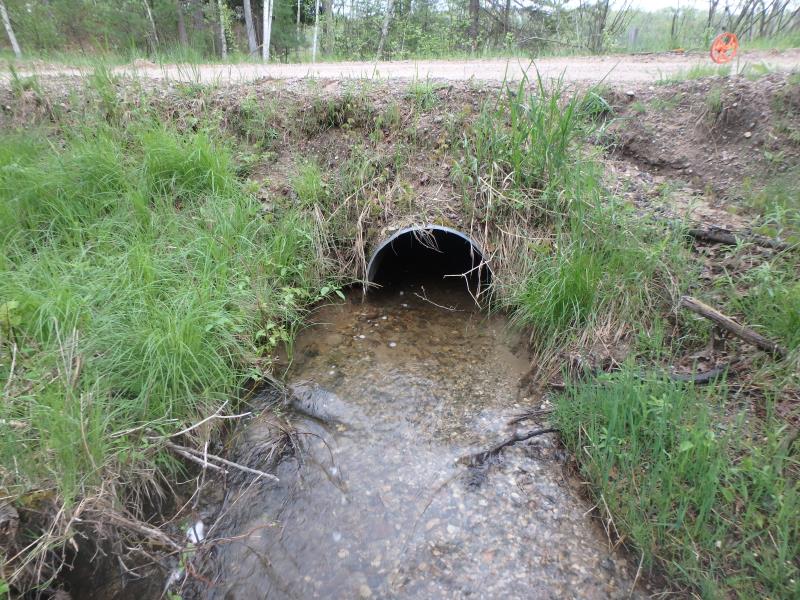

Structure Outlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.4 ft./sec.
*Water Velocities were measured 0.4 ft. below Surface
(with Meter)
Additional Comments
Dam immediately upstream
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 15.2 ft.
Wetted Width: 10 ft.
Water Velocity: 1.4 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Gravel
County Road
Road Condition: Poor
Road Width at Culvert: 15 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 2.6 ft.
Slope: Vertical
Downstream
Fill Depth: 2.3 ft.
Slope: Vertical
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Partial
LS Factor: 0.8
Erosion: 3.3058 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Partial
LS Factor: 0.8
Erosion: 3.3058 tons/year
Erosion Information
Total Erosion at Crossing: 6.6179 tons/year
Extent of Erosion: Minor
Erosion is occurring and corrective actions can be installed to address the problem.
Location of Erosion | Erosion Dimensions | Eroded Material | Material Eroded | Total Erosion | ||
facing downstream | Length | Width | Depth | Reaching Stream? | (tons/year) | |
Left Downstream Embankment |
9 ft. |
2 ft. |
0.7 ft. |
yes |
Gravelly Loam |
0.0063 |
Summary Information
Fish Passability 0.9
Fish Passage is an area of concern for this site.
Dam upstream
