Road Stream Crossing Site TBW_TBMO48
Thunder Bay River Watershed, Crooked Creek
Skyline Drive
Albert Twp,
Montmorency County
Information collected by:
Site Location
GPS Coordinates: 44.94192
, -84.17817
T29N
R2E
Sec 03
Owned by Private
State
Other
State
Other
Fish Passability 0
Perch Height: 5 ft.
Total Erosion: 2.038 tons/year
Severity: Severe
Year Inventoried: 2017

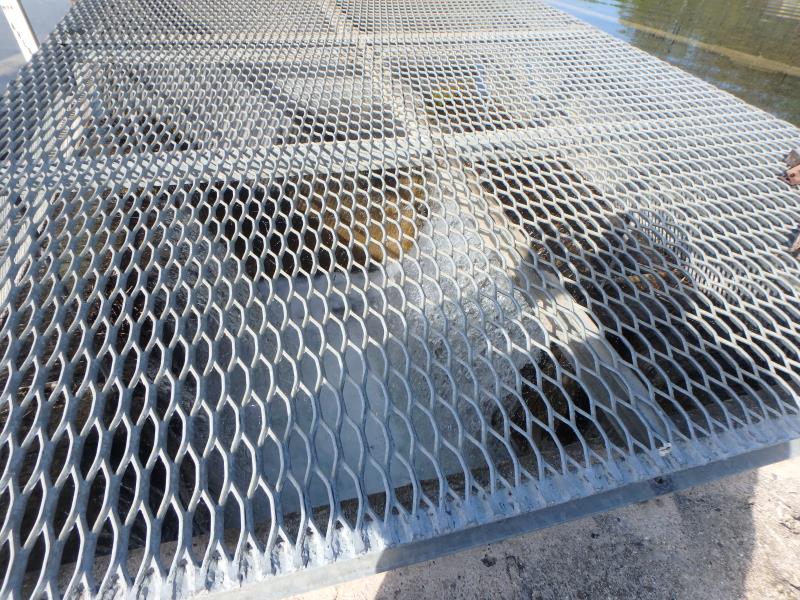

Inlet

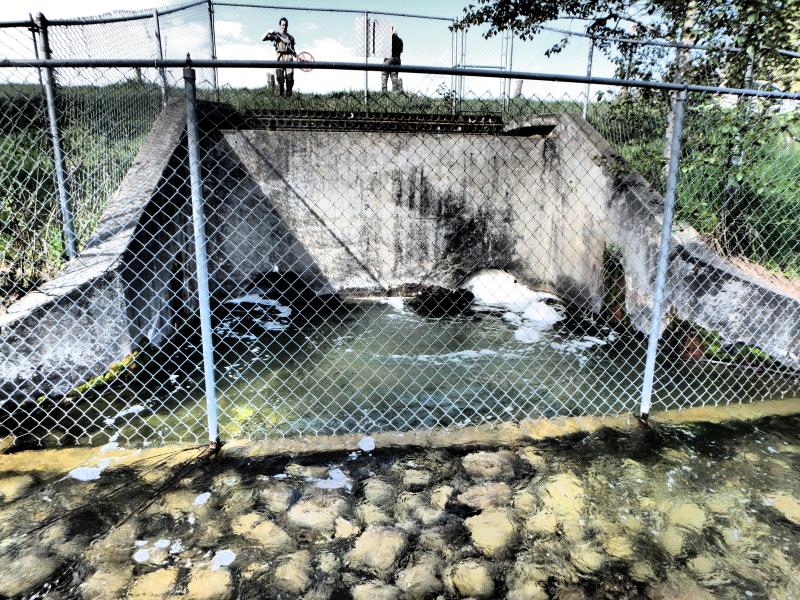

Outlet

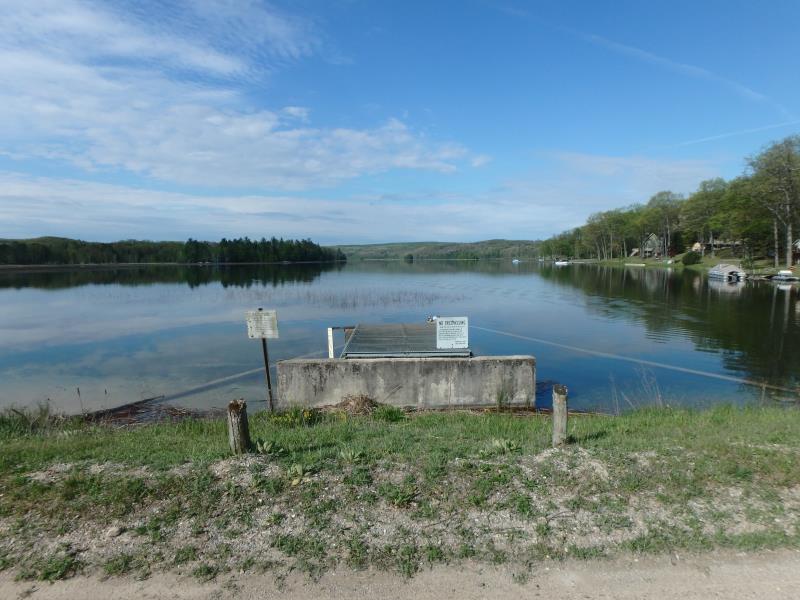

Upstream Conditions

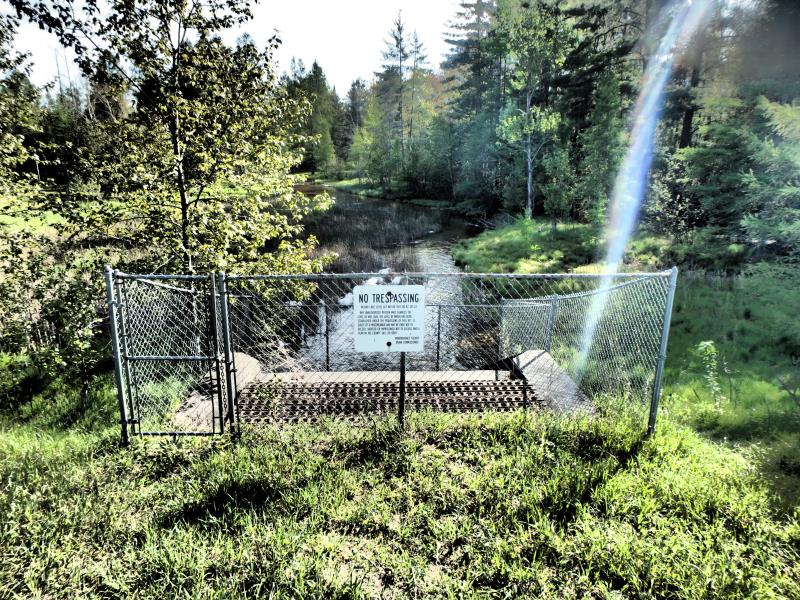

Downstream Conditions

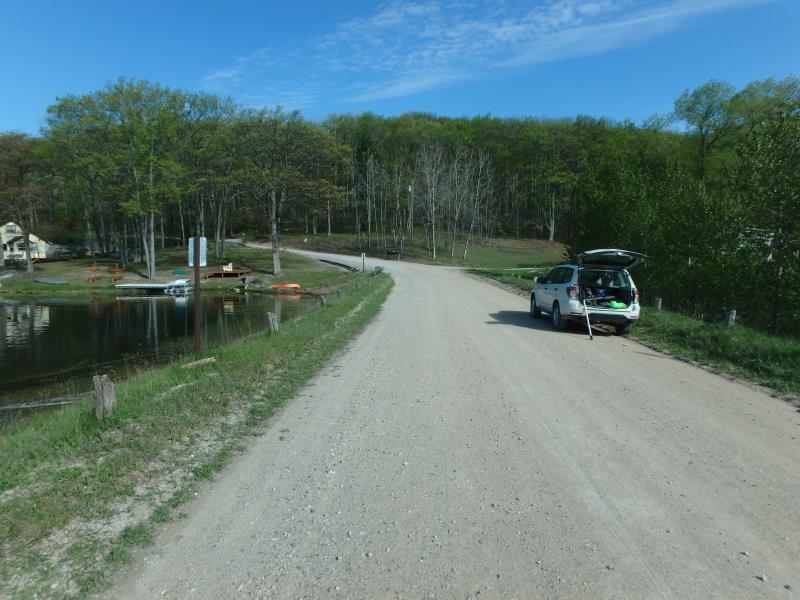

Road Approach - Left

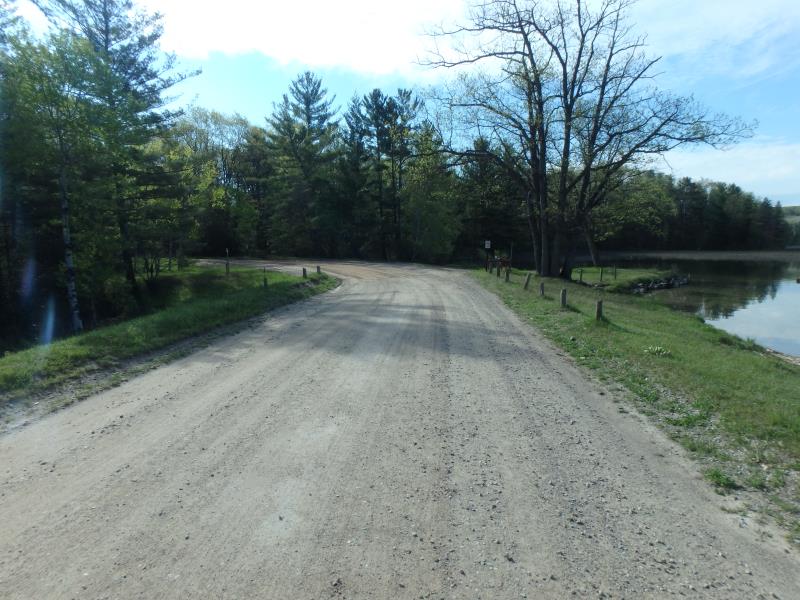

Road Approach - Right
Crossing Information
Type of Crossing: Dam
Structure Shape: Square/Rectangle
Inlet Type: Other
Outlet Type: Other
Structure Material: Concrete
Structure Substrate: None
General Conditions: Good
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
1 |
2 ft. |
58 ft. |
3 ft. |
Concrete |
2 |
2 ft. |
58 ft. |
3 ft. |
|
Dimensions of Structure: Length 58 ft.
, Width 2 ft.
, Height 3 ft.
Perch Height: 5 ft.
Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 6 ft./sec.
Structure Outlet
Water Depth: 3.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.1 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Additional Comments
COULD NOT ACCESS OUTLET FOR EXACT DIMENSIONS
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.855 ft.
Bankfull Width: 32 ft.
Wetted Width: 26 ft.
Water Velocity: 1.8 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 21 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 4 ft.
Slope: More than 1:2
Downstream
Fill Depth: 3 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 665 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.53
Erosion: 2.038 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 2.038 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 0
Fish Passage is an area of concern for this site.
