Road Stream Crossing Site TBW_TBMO57
Thunder Bay River Watershed, Lockwood Lake Creek
Beauregard Road
Loud Twp,
Montmorency County
Information collected by:
Site Location
GPS Coordinates: 44.9138
, -84.0245
T29N
R3E
Sec 12
Owned by Private
Fish Passability 0
Structure is NOT Perched
Total Erosion: 4.9102 tons/year
Severity: Severe
Year Inventoried: 2017

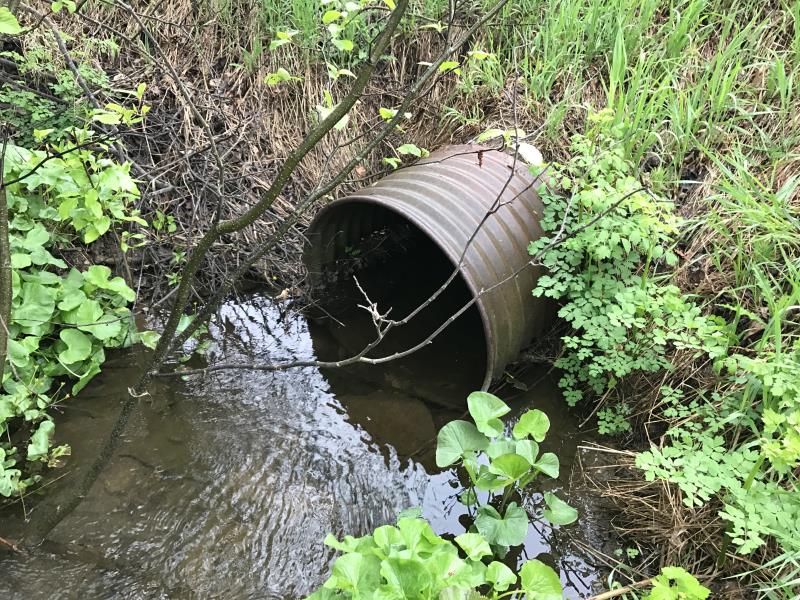

Inlet

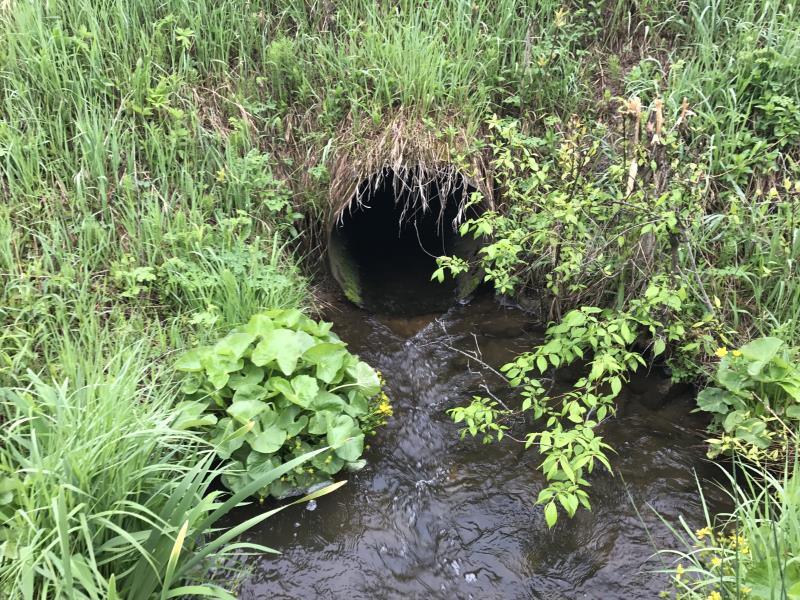

Outlet

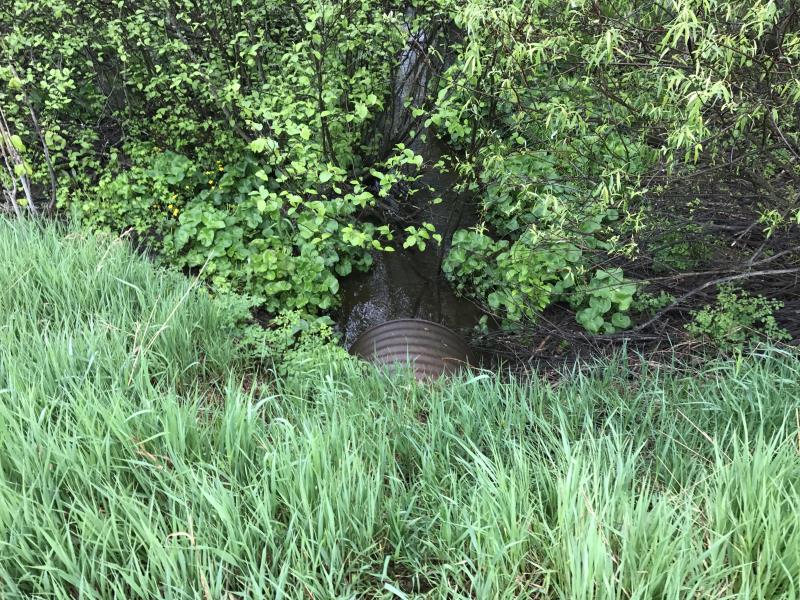

Upstream Conditions

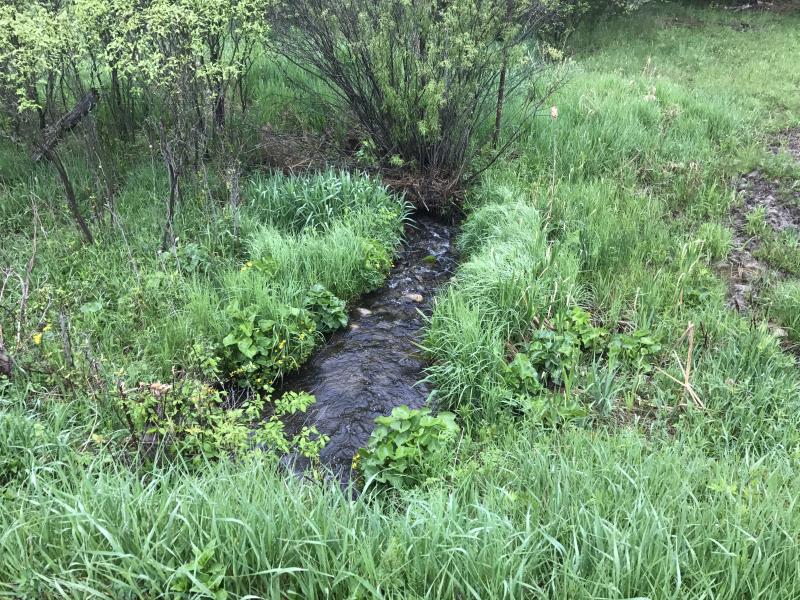

Downstream Conditions

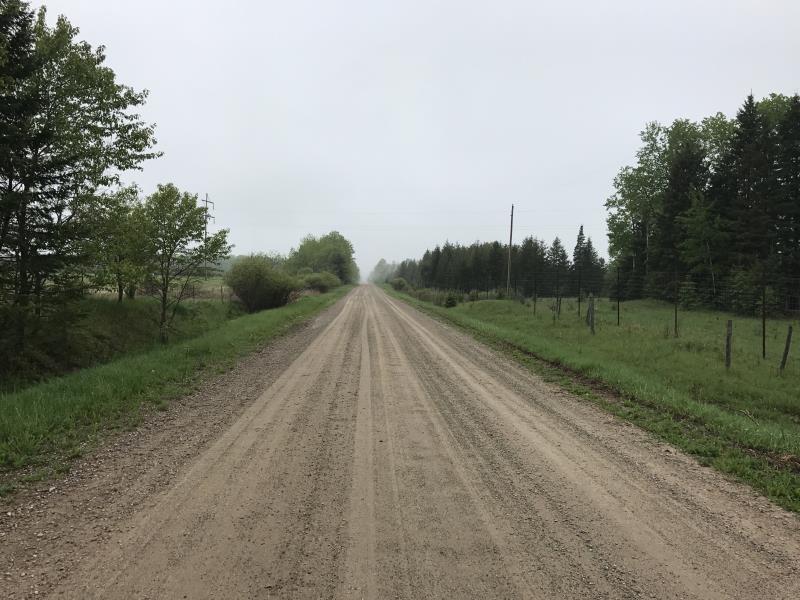

Road Approach - Left

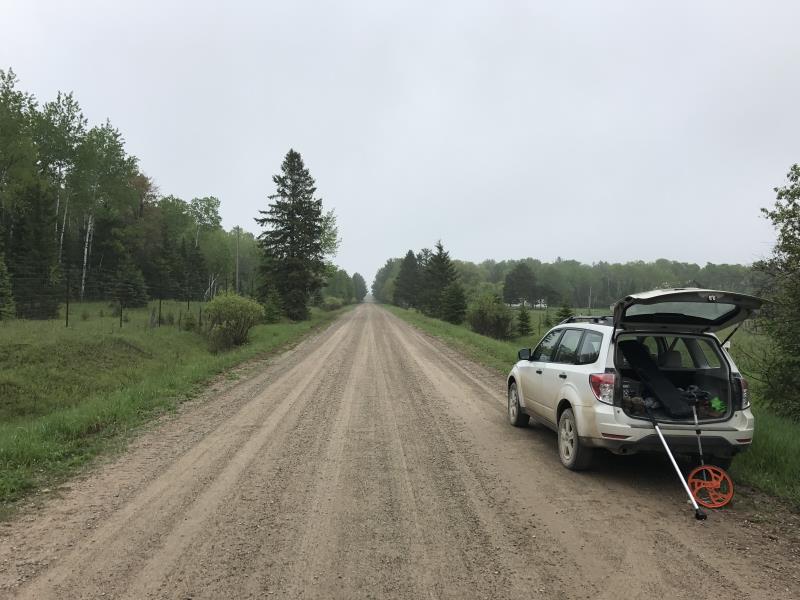

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Structure is Rusted through
Dimensions of Structure: Length 35 ft.
, Width 2.6 ft.
, Height 2.6 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.8 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 4.3 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface
(with Meter)
Additional Comments
PRIVATE HIGH FENCE HUNT CLUB DOWNSTREAM THAT HAD FENCE OPEN
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.45 ft.
Bankfull Width: 8.7 ft.
Wetted Width: 4.4 ft.
Water Velocity: 1.1 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Sand
County Road
Road Condition: Good
Road Width at Culvert: 19 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 3.3 ft.
Slope: More than 1:2
Downstream
Fill Depth: 3 ft.
Slope: 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 2.9835 tons/year
Right Approach
Length: 690 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.534
Erosion: 1.9268 tons/year
Erosion Information
Total Erosion at Crossing: 4.9102 tons/year
Extent of Erosion: Minor
Erosion is occurring and corrective actions can be installed to address the problem.
Summary Information
Fish Passability 0
Fish Passage is an area of concern for this site.
VELOCITY
A future visit to this site is recommended. RUSTED CULVERT
