Road Stream Crossing Site GTBAY_NC002
East Bay Shoreline & Tributaries Watershed, Unnamed Creek
Old Dixie Hwy
Norwood Twp,
Charlevoix County
Information collected by:
Site Location
GPS Coordinates: 45.209532
, -85.375047
T33N
R9W
Sec 35
Owned by Private
Perch Height: 1.2 ft.
Total Erosion: 0.3967 tons/year
Severity: Minor
Year Inventoried: 2020

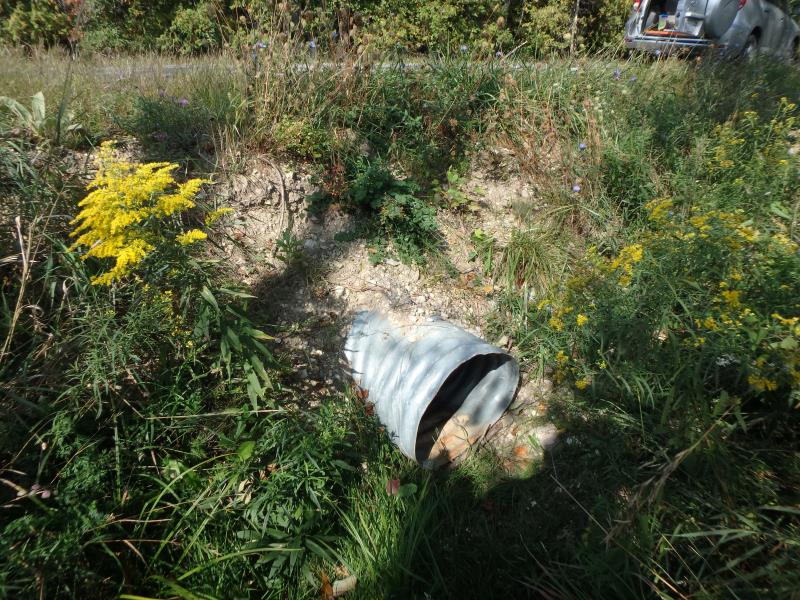

Inlet

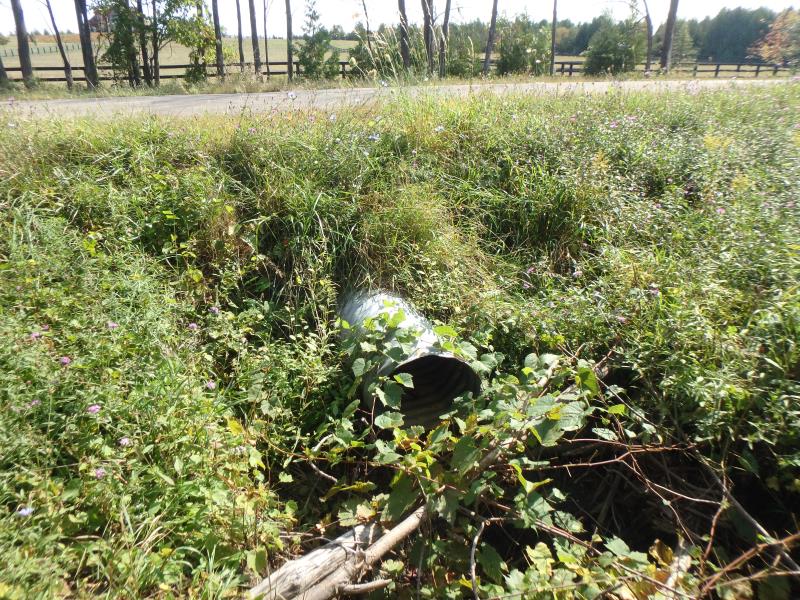

Outlet

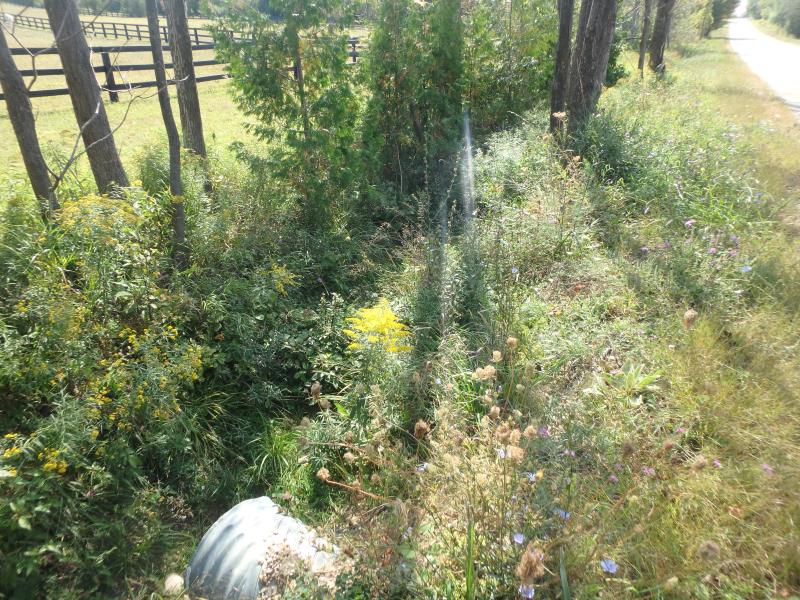

Upstream Conditions

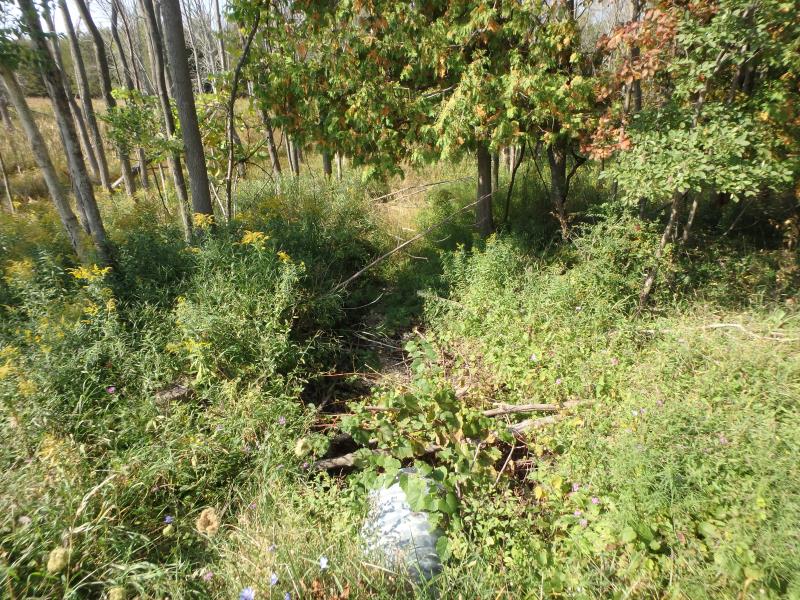

Downstream Conditions

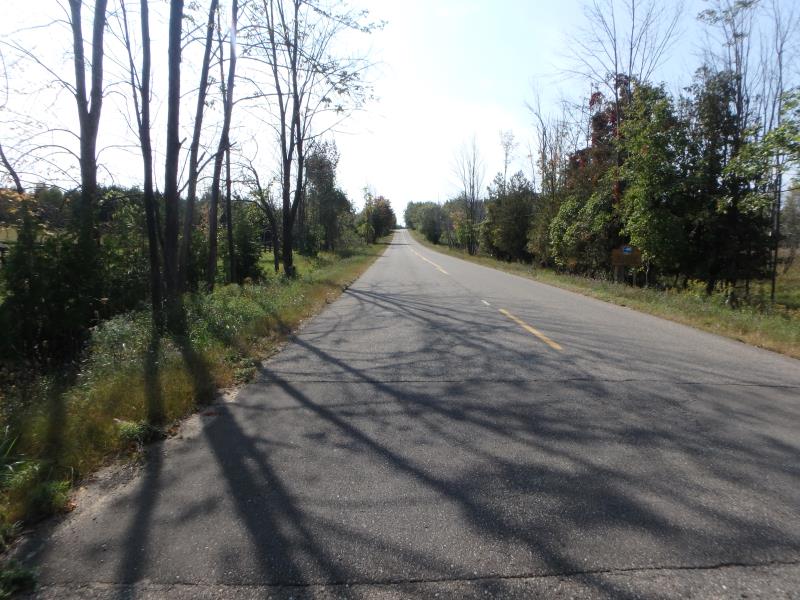

Road Approach - Left

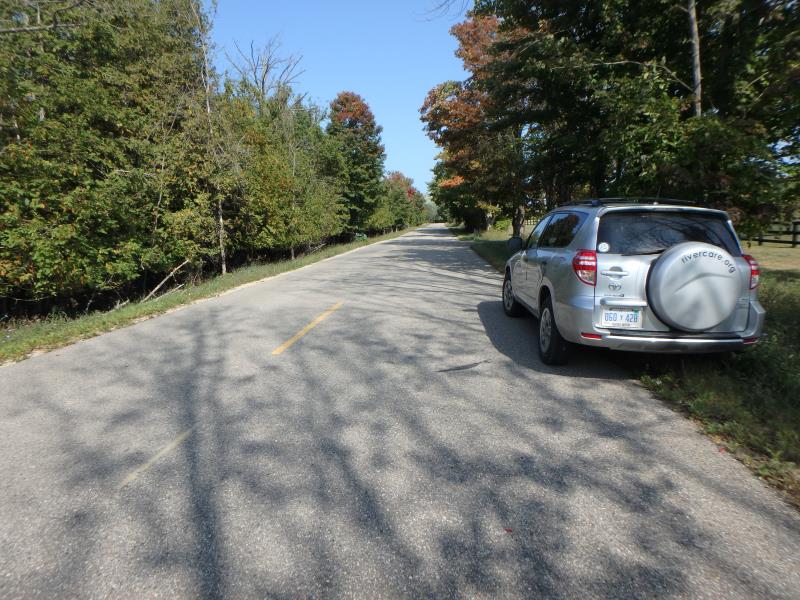

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Structure Shape: Ellipse
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 44 ft.
, Width 1.7 ft.
, Height 1.3 ft.
Perch Height: 1.2 ft.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Stream Information
Stream Flow: None
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 24 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.5 ft.
Slope: 1:1
Downstream
Fill Depth: 2.5 ft.
Slope: 1:2
Approaches
Left Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 0.1983 tons/year
Right Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 0.1983 tons/year
Erosion Information
Total Erosion at Crossing: 0.3967 tons/year
Summary Information
These non-native species were observerd at this site: Spotted Knapweed
