Road Stream Crossing Site GTBAY_PA003
East Bay Shoreline & Tributaries Watershed, Paradine Creek
US-31
Milton Twp,
Antrim County
Information collected by:
Site Location
GPS Coordinates: 44.952784
, -85.377106
T30N
R9W
Sec 34
Owned by Federal
Private
Private
Total Erosion: 0.5124 tons/year
Severity: Minor
Year Inventoried: 2020

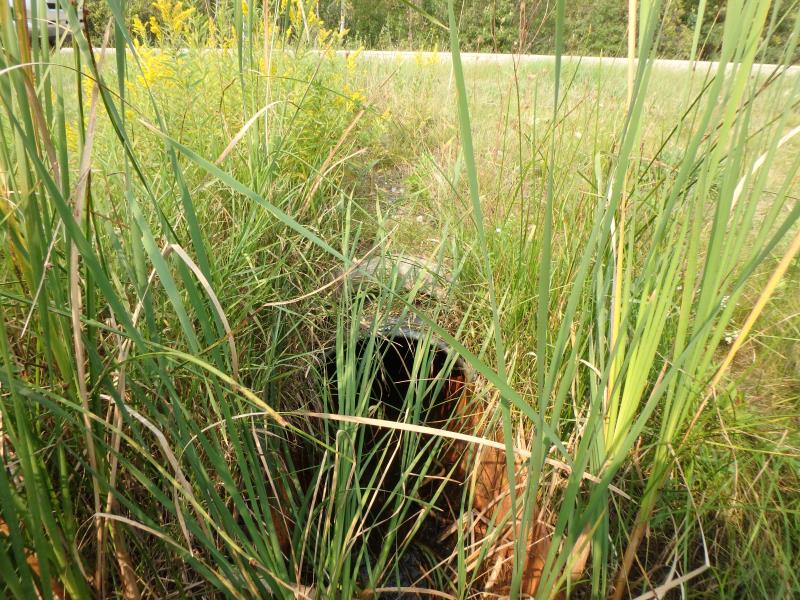

Inlet

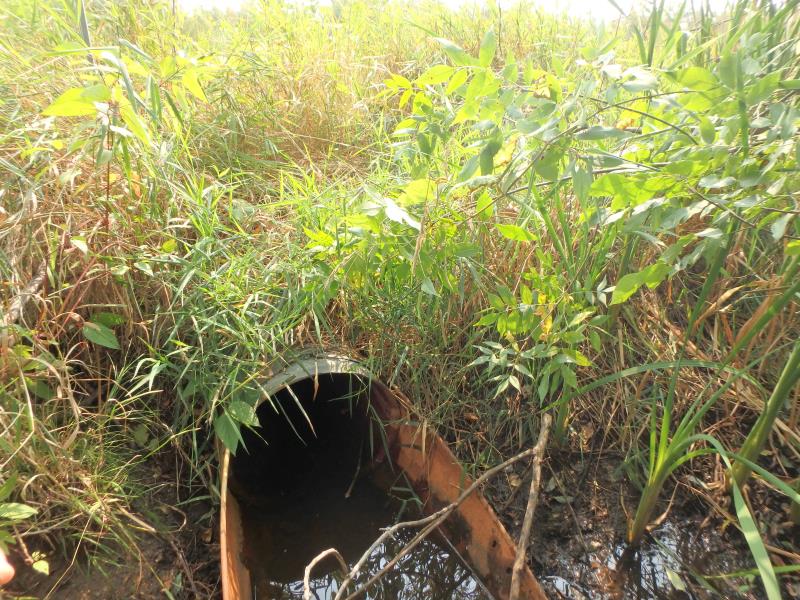

Outlet

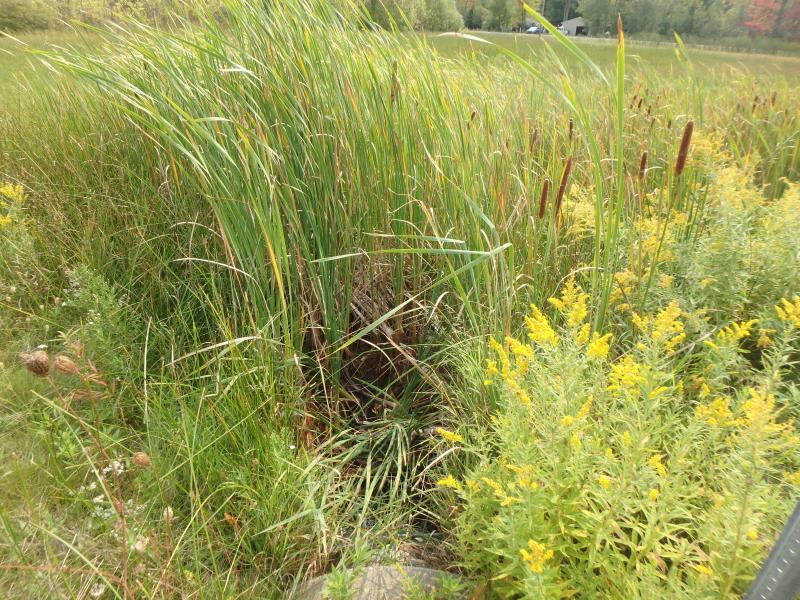

Upstream Conditions

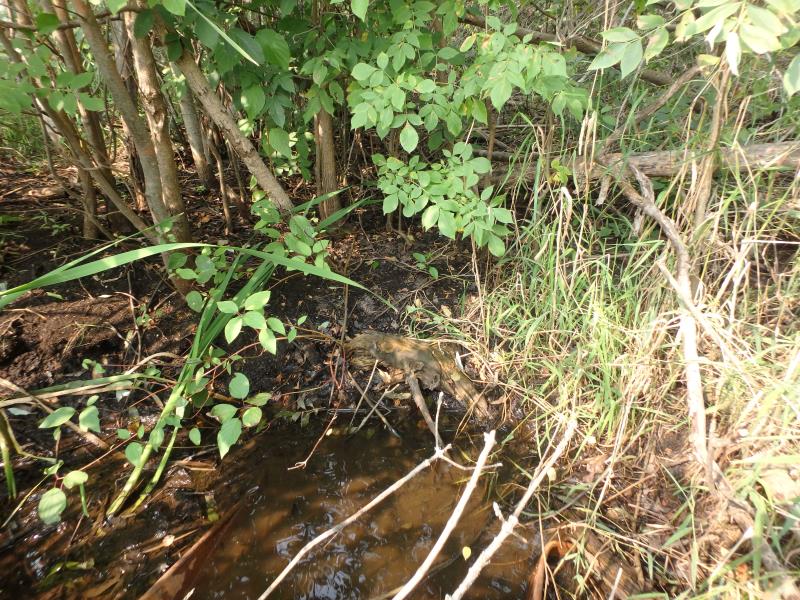

Downstream Conditions

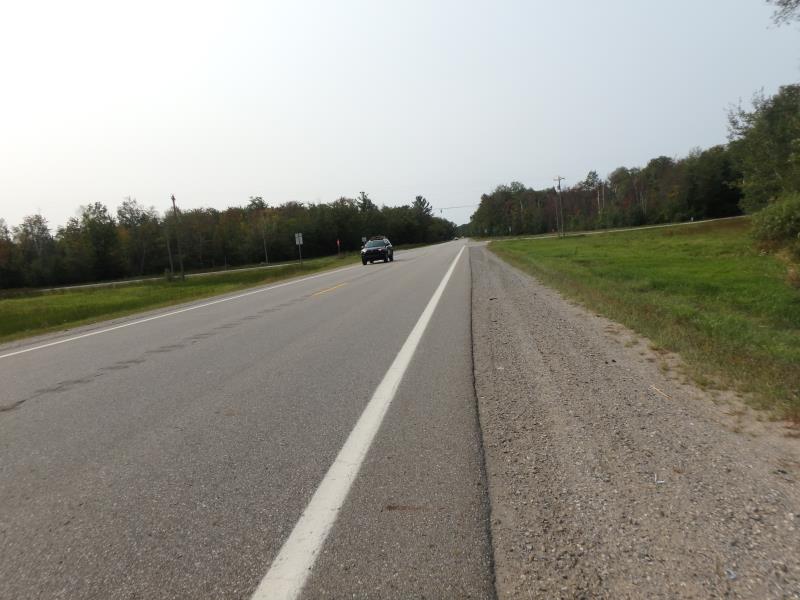

Road Approach - Left

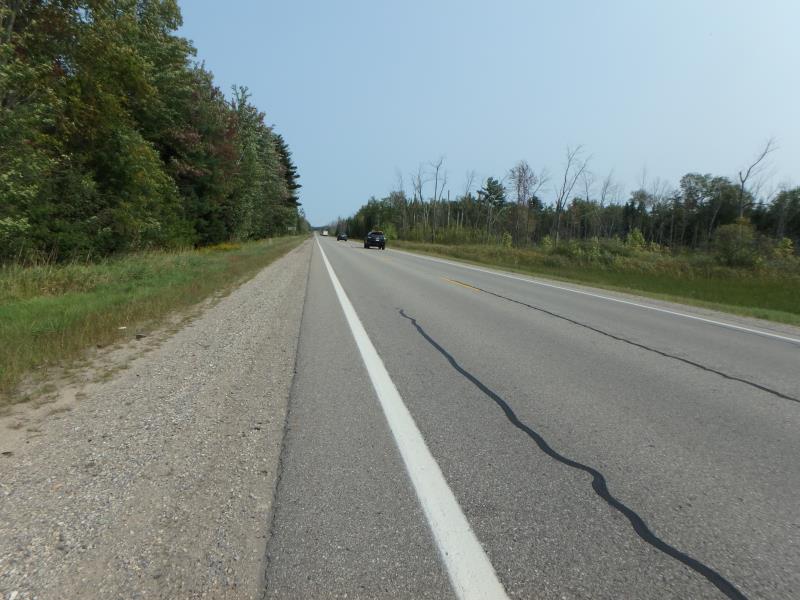

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Structure Shape: Round
Inlet Type: Apron
Outlet Type: Outlet Apron
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 80 ft.
, Width 2 ft.
, Height 2 ft.
Structure Inlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Stream Information
Stream Flow: None
Road Information
Paved
Federal Road
Road Condition: Good
Road Width at Culvert: 31 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.1 ft.
Slope: More than 1:2
Downstream
Fill Depth: 3.2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 0.2562 tons/year
Right Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 0.2562 tons/year
Erosion Information
Total Erosion at Crossing: 0.5124 tons/year
Summary Information
These non-native species were observerd at this site: Queen Anne's Lace, Bull Thistle
