Road Stream Crossing Site GTBAY_U003
East Bay Shoreline & Tributaries Watershed, Unnamed
US-31/Munson Ave
Acme Twp,
Grand Traverse County
Information collected by:
Site Location
GPS Coordinates: 44.745963
, -85.534219
T27N
R10W
Sec 09
Owned by Private
Fish Passability 1
Total Erosion: 0.597 tons/year
Severity: Moderate
Year Inventoried: 2020
Inlet

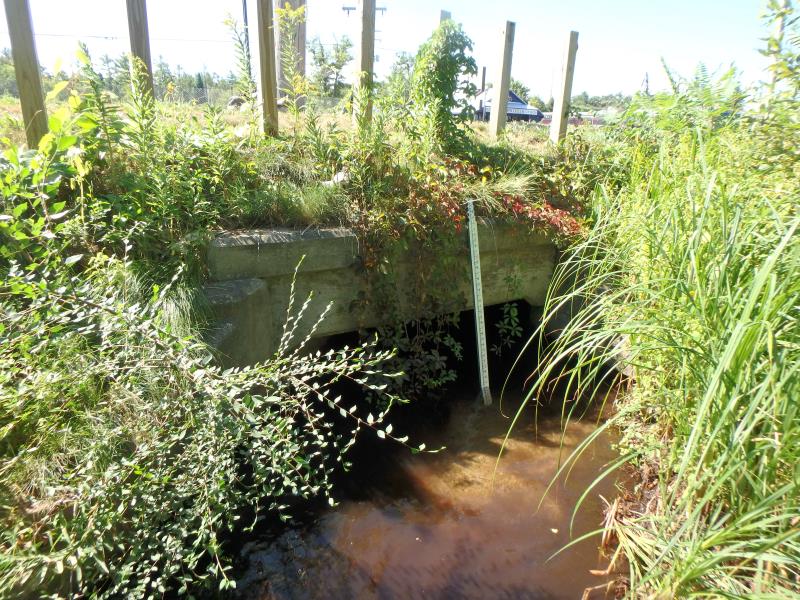

Outlet
Upstream Conditions

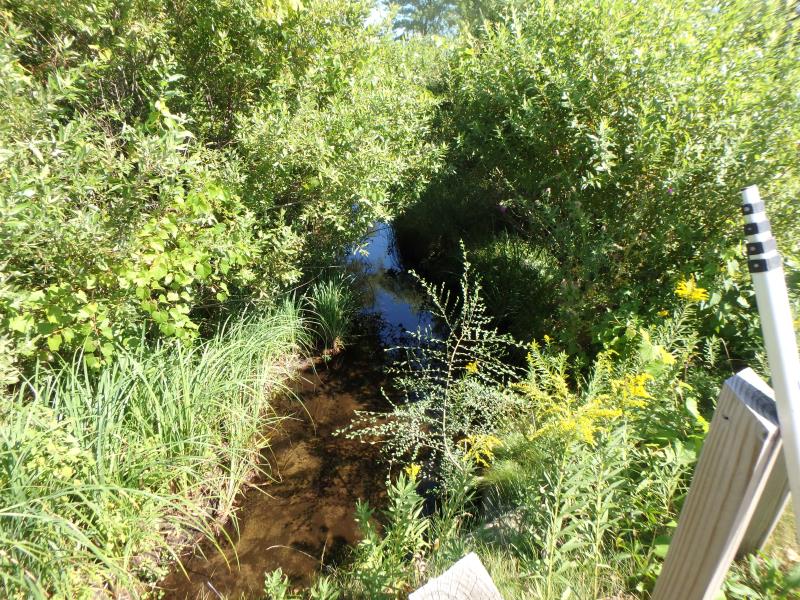

Downstream Conditions

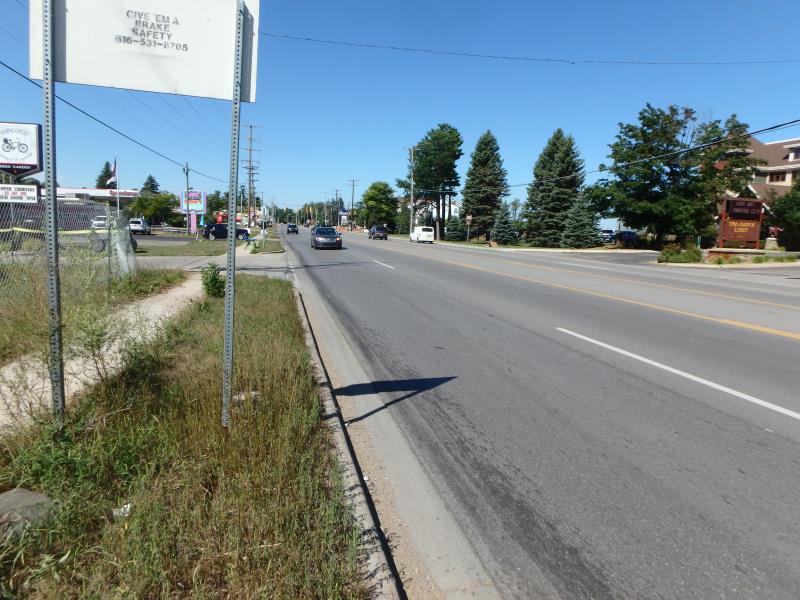

Road Approach - Left

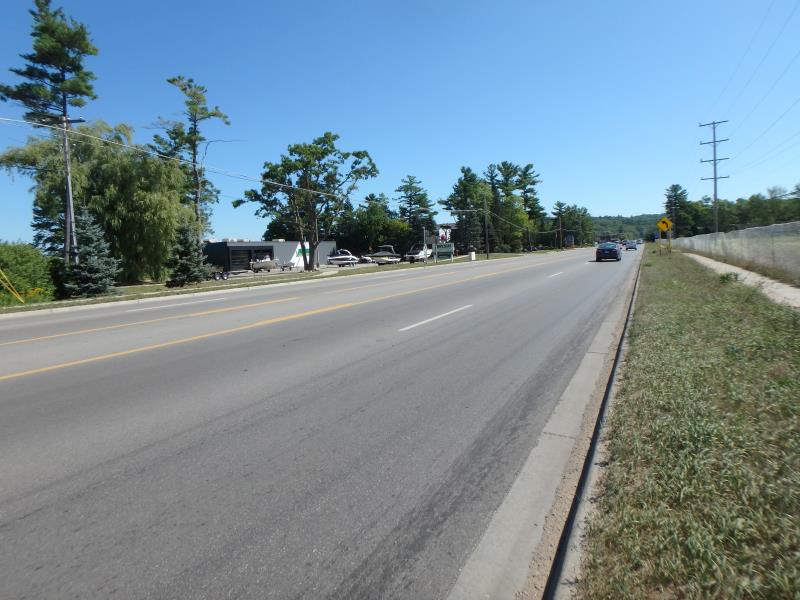

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Wingwall 30-70 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 96 ft.
, Width 5.5 ft.
, Height 1.9 ft.
Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface
(with Meter)
Additional Comments
Change Passability score to 1. Erosion still an area of concern for this site because of recent construction upsteam causing heavy sedimentation
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.7 ft.
Bankfull Width: 7.1 ft.
Wetted Width: 6.6 ft.
Water Velocity: 0.5 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
Federal Road
Road Condition: Good
Road Width at Culvert: 56 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 2.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.5 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0.0046 tons/year
Right Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Partial
LS Factor: 0.64
Erosion: 0.5924 tons/year
Erosion Information
Total Erosion at Crossing: 0.597 tons/year
Summary Information
Fish Passability 1
