Road Stream Crossing Site GTBAY_YC006
Yuba Creek Watershed, Yuba Creek
Brackett Rd
Acme Twp,
Grand Traverse County
Information collected by:
Site Location
GPS Coordinates: 44.787153
, -85.464339
T28N
R10W
Sec 25
Owned by Private
Fish Passability 0
Severity: Severe
Year Inventoried: 2020

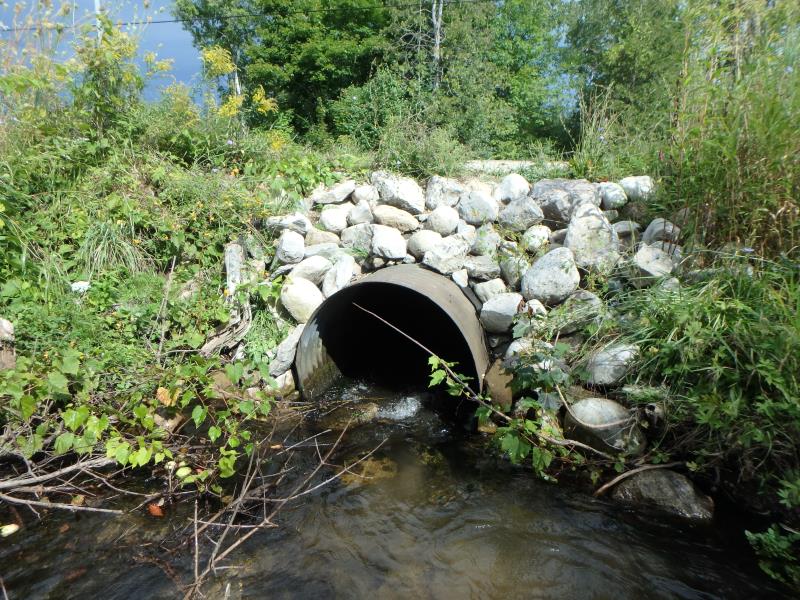

Inlet
Outlet
Upstream Conditions
Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 38 ft.
, Width 3.5 ft.
, Height 3.5 ft.
Structure Inlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.7 ft./sec.
Structure Outlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.4 ft./sec.
*Water Velocities were measured 0.6 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 40 ft.
, Width 26 ft.
, Depth 3.2 ft.
Riffle Information
Water Depth: 0.7 ft.
Bankfull Width: 13.7 ft.
Wetted Width: 12.1 ft.
Water Velocity: 0.8 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
County Road
Road Condition: Fair
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.7 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.1 ft.
Slope: More than 1:2
Length: 25 ft.
Slope: Less Than 1%
Vegetation: Partial
Length: 260 ft.
Slope: 1% to 5%
Vegetation: Partial
Erosion Information
Summary Information
Fish Passability 0
