Road Stream Crossing Site PLT-P-5

Platte River Watershed, North Branch of Platte River

Hooker Rd

Platte Twp, Benzie County

GPS Coordinates: 44.70948 , -86.02429

T27 R14 Sec 29

Road Width at Culvert: 24 ft.

Road Surface: Paved

Maintenance: seasonal

Low Point: Other

Existing Drainage Control? yes

Any Failings? no

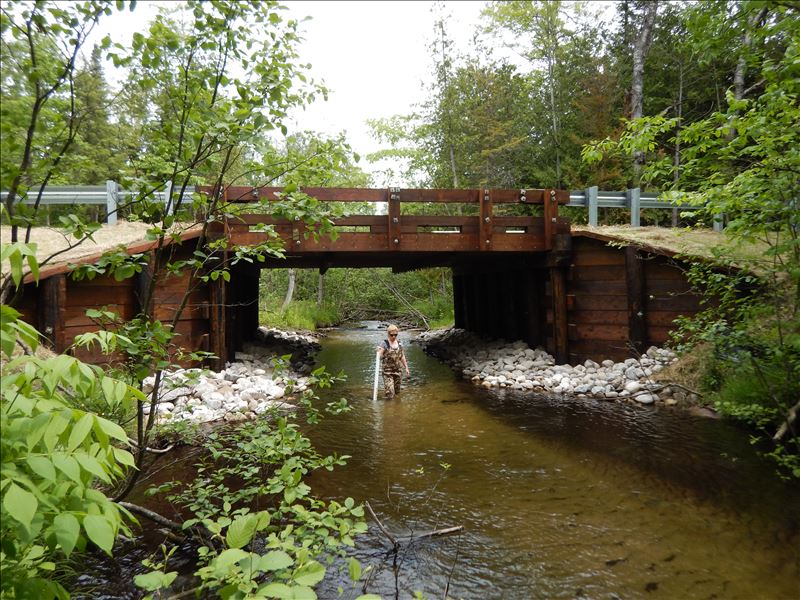

Type of Crossing: Bridge (single culvert)

Is this crossing constricted? no

Are there adjacent wetlands? yes

Length: 300 ft.

Slope: 1-5%

Vegetation: partial

Length: 50 ft.

Slope: 0%

Vegetation: partial

Length: 26 ft.

Diameter: 9.7 ft.

Flow: clear

Fill Depth: 0 ft.

Embankment Slope: 1:2

Fill Depth: 0 ft.

Embankment Slope: 1:2

Stream Width: 24 ft.

Stream Depth: 1 in.

Stream Current: moderate

Stream Substrate: sand,gravel

Stream Width: 24 ft.

Stream Depth: 1.2 in.

Stream Current: moderate

Stream Substrate: gravel

Is there Streambank erosion beside the crossing? no

Is there embankment erosion? no

Is there erosion at the culvert outlet? no

Is there erosion at the shoulder and/or ditch? no

Is there pooling at the outlet? yes

Is there sand over the crossing? no



Action Recommended? no

Add pavement? no

Pave Left Approach: 0 Lineal Feet

Pave Right Approach: 0 Lineal Feet

Add paved raised edge? no

Number of erosion control structures: 0

Number of sediment basins: 0

Number of diversion outlets: 0

Increase fill? no

Replace culvert(s)? yes

Extend culvert(s)? no

Lineal feet to extend: 0



Total Points:0
