Road Stream Crossing Site EUP_6337397747
Pine River Watershed, Trout Brook
S biscuit rd
Chippewa County
Information collected by:
Superior Watershed Partnership
Site Location
GPS Coordinates: 46.211464628,-84.697956238
T 044NN R 003W Sec 17
Fish Passability: Barrier at Most Flows
Structure is NOT Perched
Total Erosion: 1 tons/year
Date Inventoried: 6/24/2020
Crossing Information*
Type of Crossing: Culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Moderate deterioration from corrosion or abrasion (small rust flakes or indication that rust is slightly deeper than the surface level) or cracking or spalling or chipping (few minor cracks or localized chipping in the concrete). OR minor shape changes (described above).
Structure Interior: Corrugated
Is Structure Rusted through? No
Dimensions of Structure: Length 50 ft. Width 5 ft. Height 5 ft.
Percentage Plugged: None or 0%
Percentage Crushed: None or 0%
Structure is NOT Perched

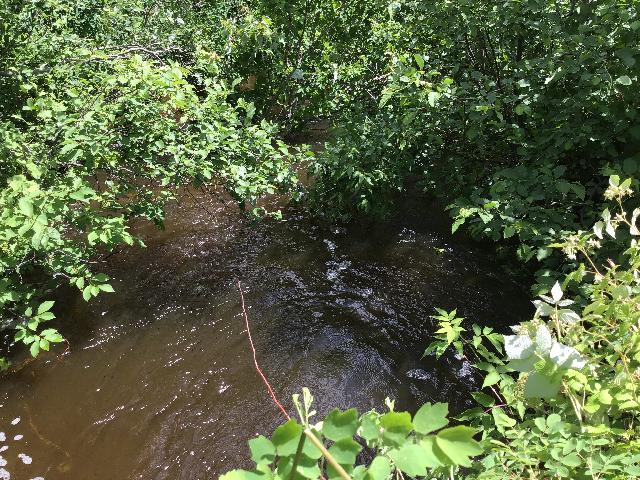

Structure Inlet
Water Depth: 2.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.94 ft./sec.
Structure Outlet
Water Depth: 2.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.94 ft./sec.
*Water Velocities were measured at the surface (via Float Test).
Stream Information
Stream Flow: > Bankfull – Water has filled the stream channel and is flowing onto the floodplain.
Is Scour Pool Present? No
Is Upstream Ponding Present? Yes
Pond: Length 24 ft., Width 30 ft.
Riffle Information
Water Depth: 3.5 ft.
Bankfull Width: 11 ft.
Wetted Width: 17 ft.
Water Velocity: 1.43 ft./sec. (measured via Float Test)
Dominant Substrate: Sand – particles are smaller than a pinhead and feel gritty between fingers
Road Information
Road Surface: Gravel
Owner: Township
Road Condition: New Pavement or Well Graded, Same condition as initial placement.
Road Width at Culvert: 19 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 3 ft.
Slope: Moderate, 2:1, 22.5°, or 41%
Downstream
Fill Depth: 4 ft.
Slope: Moderate, 2:1, 22.5°, or 41%
Approaches
Left Approach
Length: 198 ft.
Slope: 1-5%
Vegetation: Heavy, Ditch is fully vegetated or rip-rapped with no signs of erosion.
Erosion Estimate: 0.44 tons/year
Right Approach
Length: 242 ft.
Slope: 1-5%
Vegetation: Heavy, Ditch is fully vegetated or rip-rapped with no signs of erosion.
Erosion Estimate: 0.56 tons/year
Erosion Information
Estimate of Total Erosion at Crossing: 1 tons/year
Location of Erosion | Erosion Dimensions | Eroded Material | Material Eroded | Extent of Erosion | Estimated Erosion | ||
facing downstream | Length | Width | Depth | Reaching Stream? | (tons/year) | ||
Left Downstream Embankment | 4 ft. | 2 ft. | 3 ft. | Yes | Loam | Stabilized (corrective actions recommended) | 0 |
Summary Information
Fish Passability: Barrier at Most Flows
Is a future visit to this site recommended? Yes, To check water velocity prior to rain.
Were any non-native species observerd at this site? Yes, Gypsy moth larvae and nest.
*These data are maintained in the Michigan DNR Road Stream Crossing Inventory.
