Road Stream Crossing Site EUP_SI03
Saint Marys River Watershed, McFarland Creek
E Seppi Road
Chippewa County
Information collected by:
Site Location
GPS Coordinates: 46.5062264,-84.2132649
T 048N R 002 Sec 32
Fish Passability: Barrier at High Flows
Structure is NOT Perched
Total Erosion: 1.73 tons/year
Overall Score: 19
Severity: Moderate
Date Inventoried: 6/29/2021

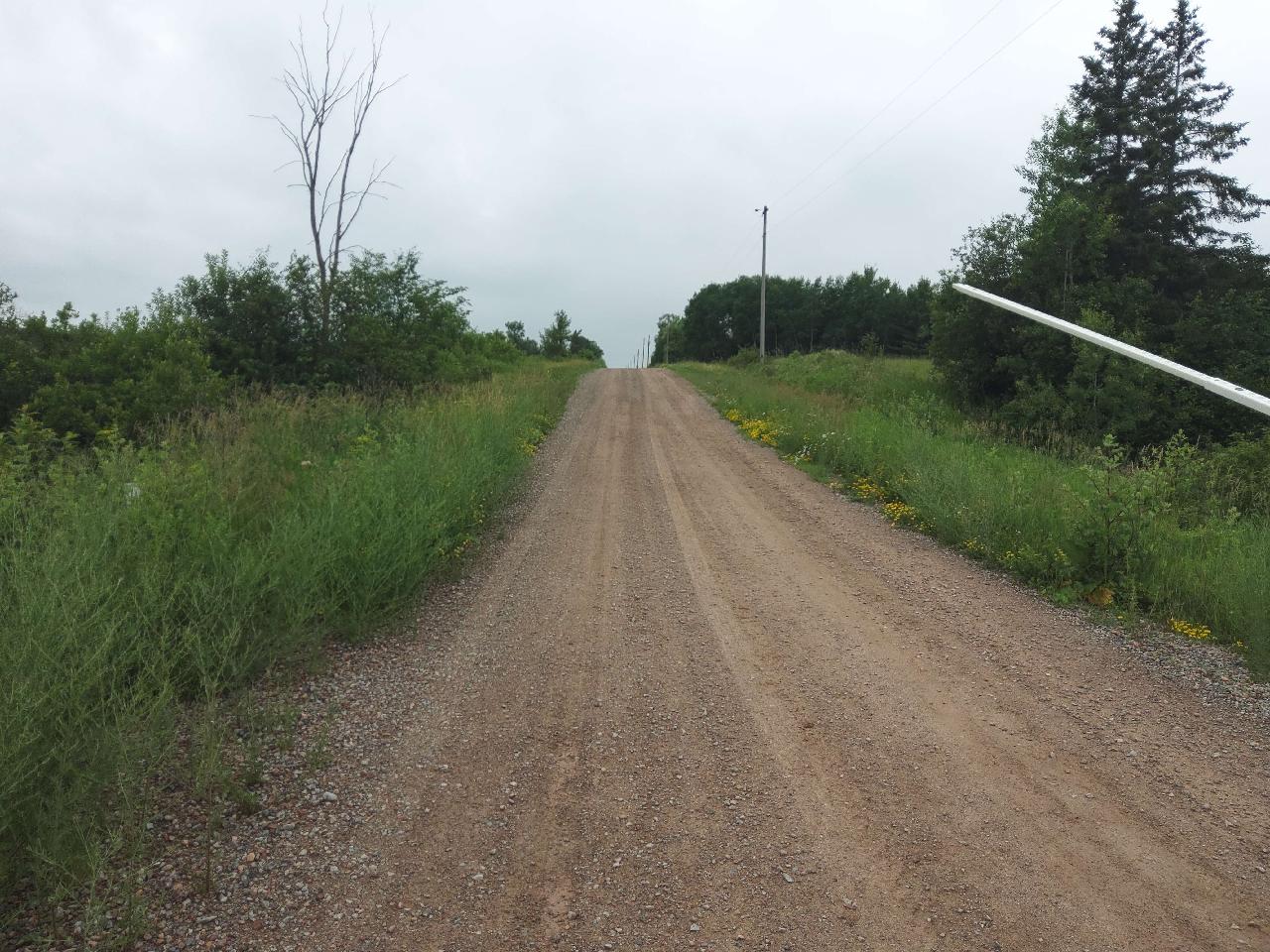

Road Approach - Left

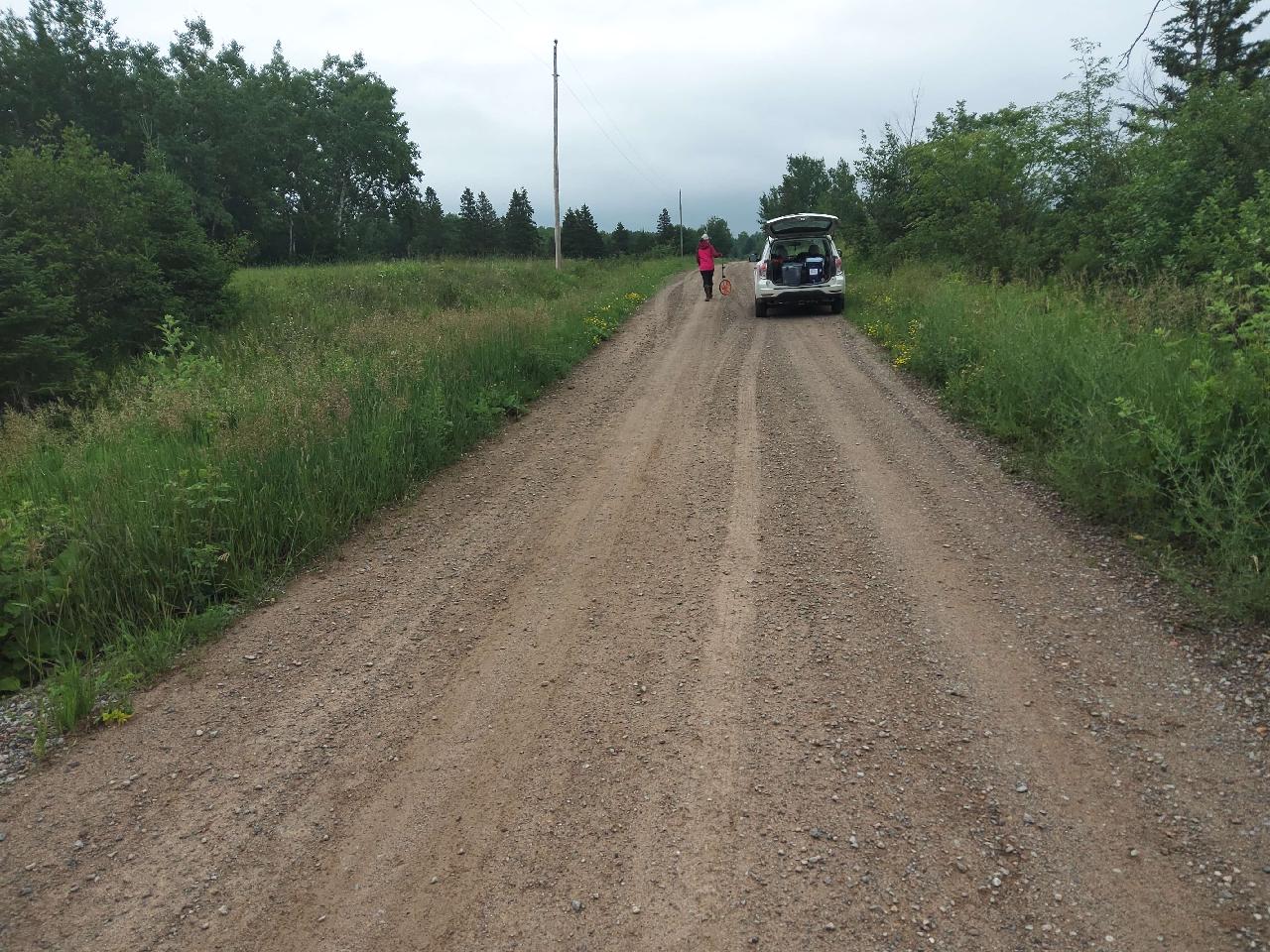

Road Approach - Right

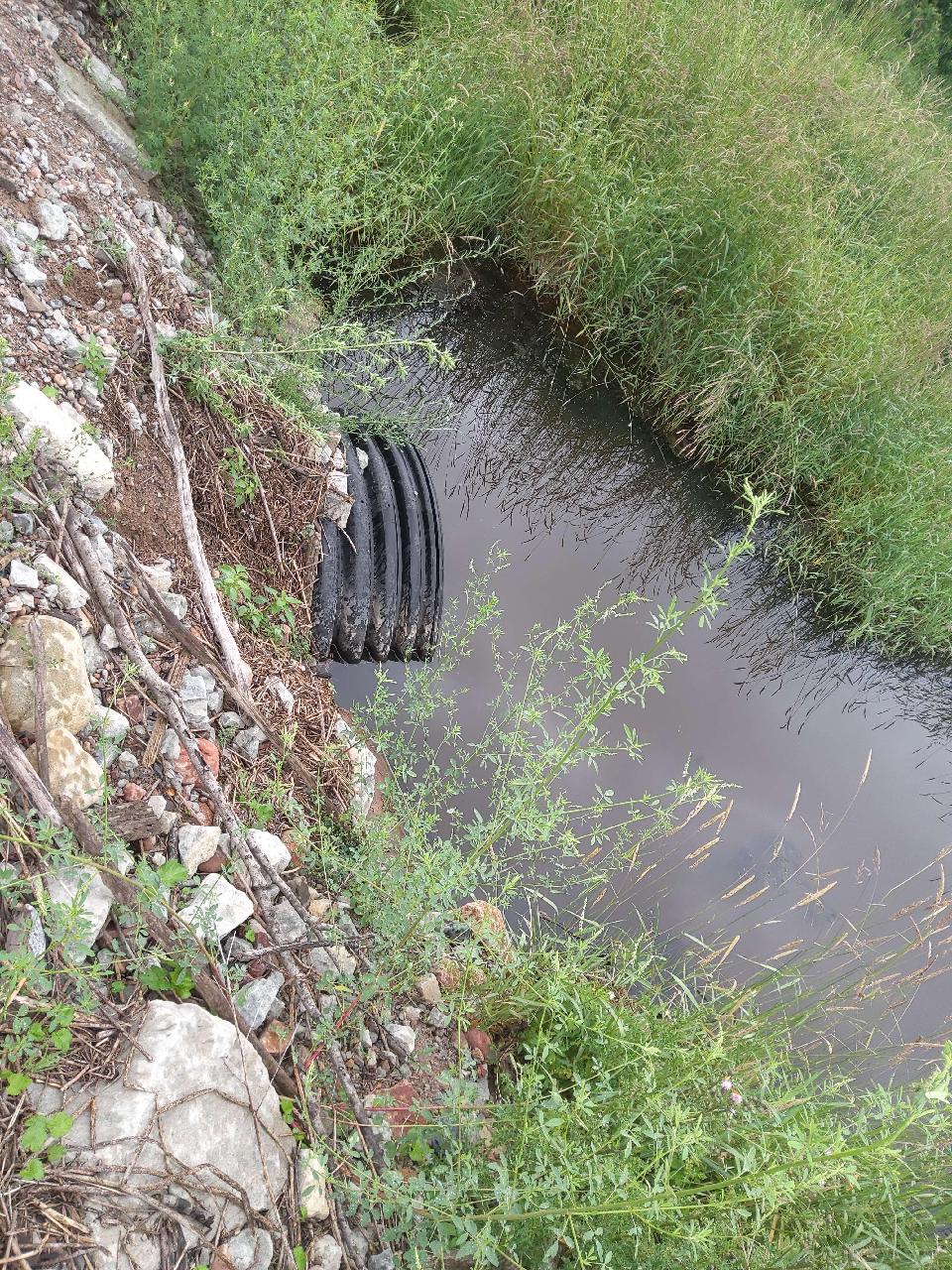

Inlet

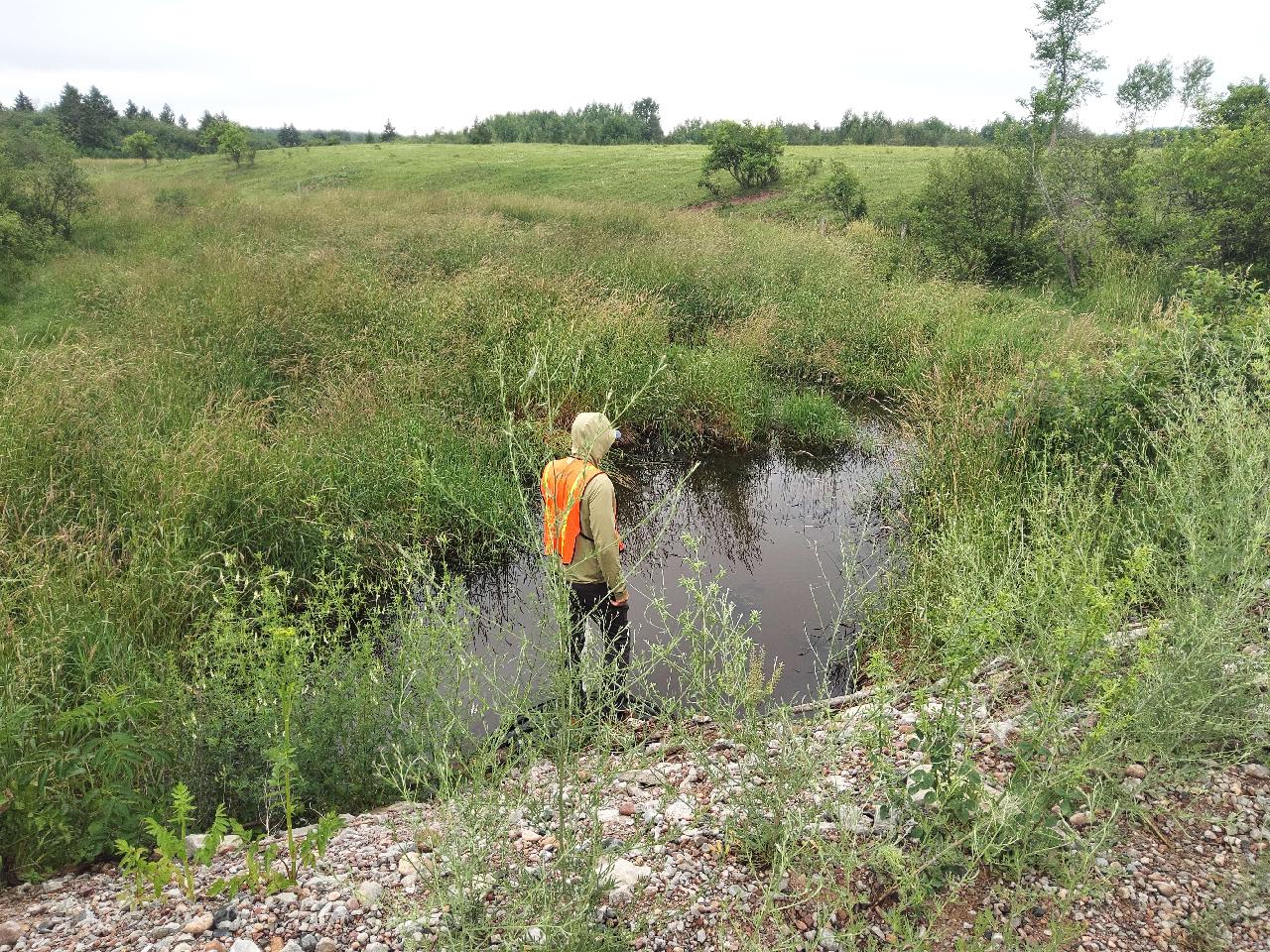

Upstream Conditions

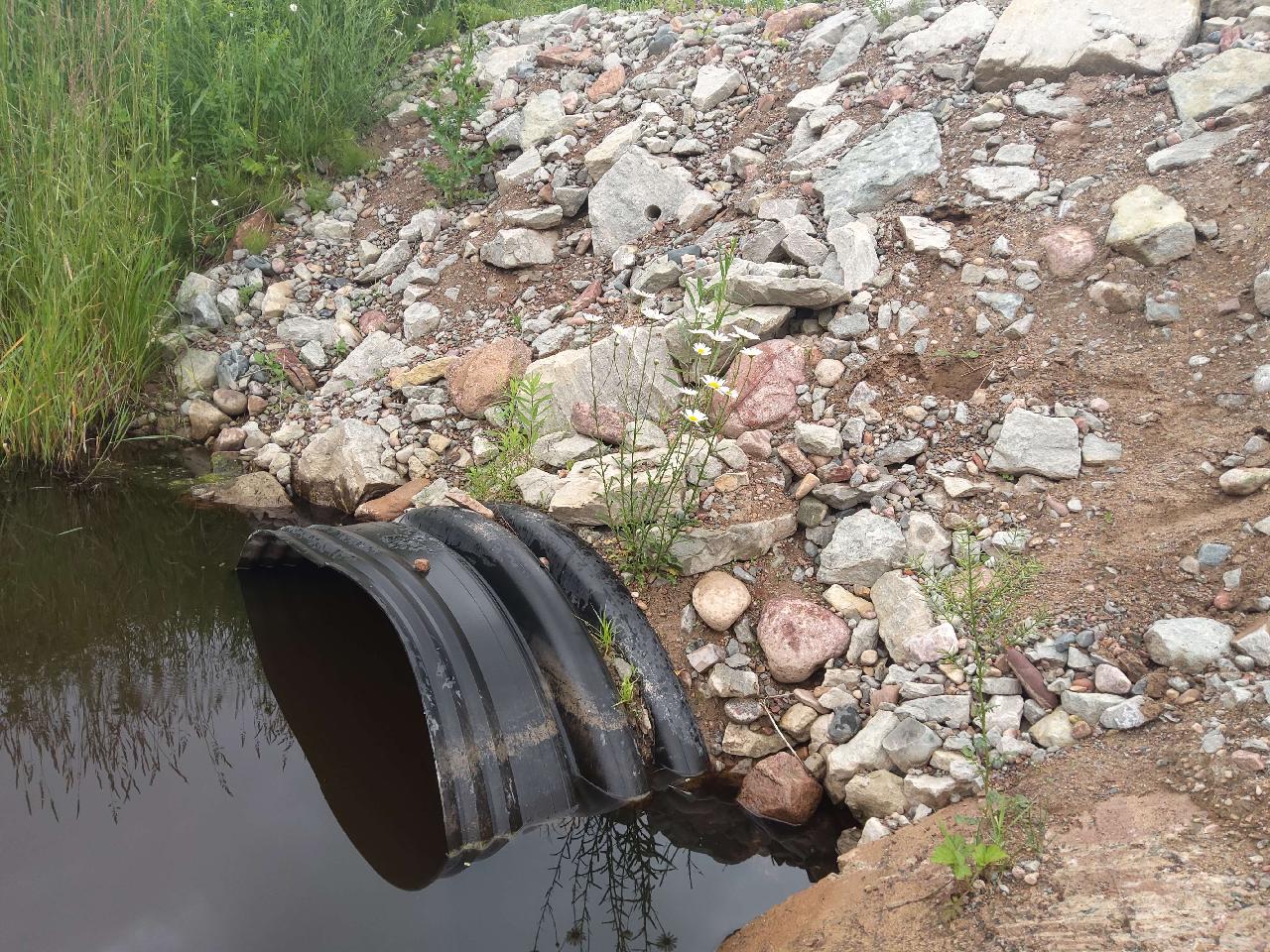

Outlet

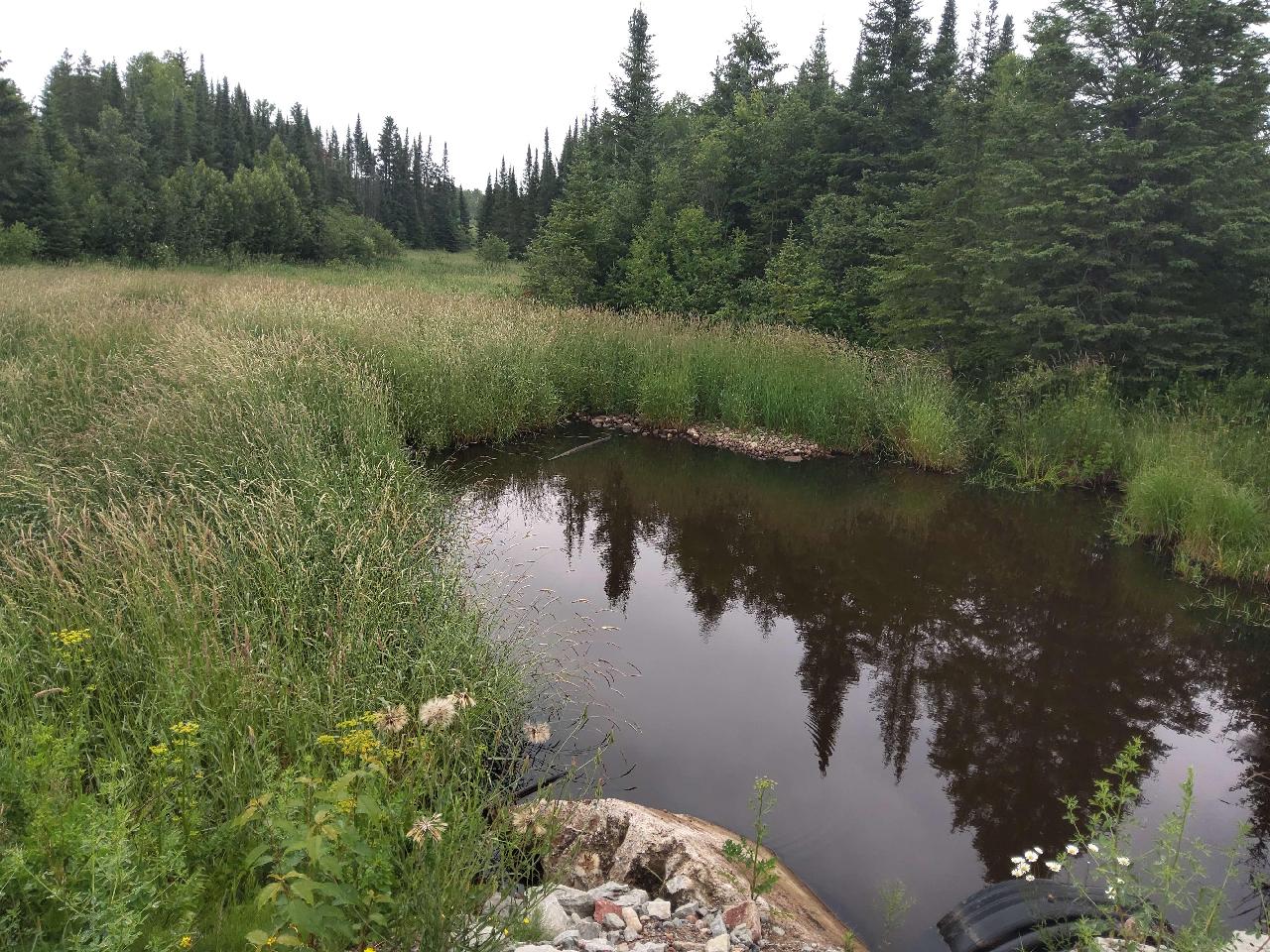

Downstream Conditions

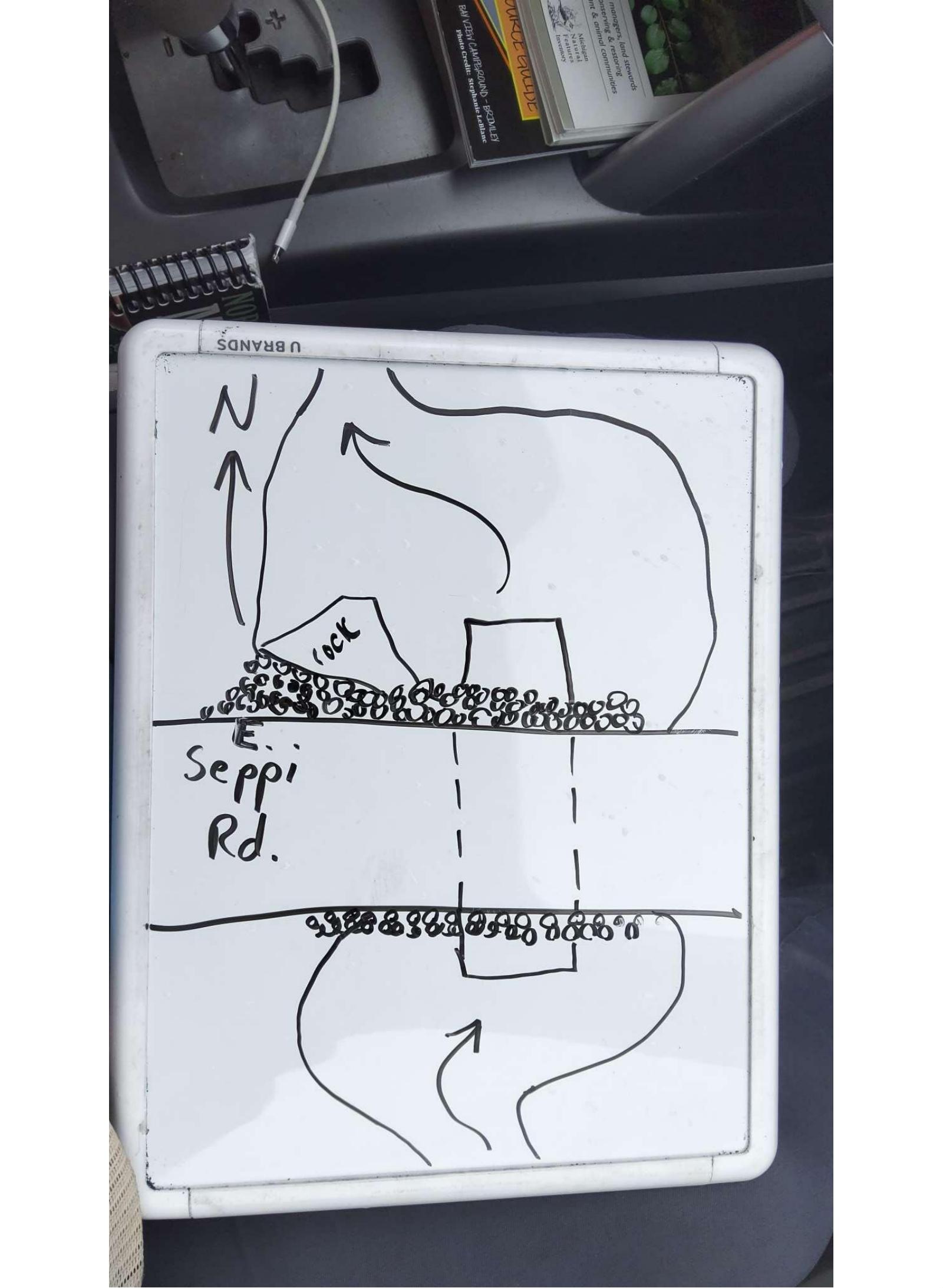

Site Sketch
Crossing Information*
Type of Crossing: Culvert(s)
Number of Structures: 1
Structure Shape: Ellipse
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Plastic
Structure Substrate: None
General Conditions: Moderate deterioration from corrosion or abrasion (small rust flakes or indication that rust is slightly deeper than the surface level) or cracking or spalling or chipping (few minor cracks or localized chipping in the concrete). OR minor shape changes (described above).
Structure Interior: Smooth
Is Structure Rusted through? No
Dimensions of Structure: Length 46 ft. Width 4.5 ft. Height 5.5 ft.
Percentage Plugged: None or 0%
Percentage Crushed: None or 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 3.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Structure Outlet
Water Depth: 4.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the surface (via Flow Meter).
Stream Information
Stream Flow: None – The streambed is dry and there is no water flow.
Stream Flow Type: Perennial (if flowing during the time of assessment.)
Is Scour Pool Present? Yes
Scour Pool: Length 40 ft., Width 40 ft., Depth 6 ft.
Is Upstream Ponding Present? No
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec. (measured via Flow Meter)
Dominant Substrate: Silt – very fine particles that don't stick together
Road Information
Road Surface: Gravel
Owner: County
Road Condition: New Pavement or Well Graded, Same condition as initial placement.
Road Core Integrity: Good (no symptoms of lack of integrity)
Road Width at Culvert: 18 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 5.5 ft.
Slope: Steep, 1:1, 45°, or 100%
Downstream
Fill Depth: 6 ft.
Slope: Steep, 1:1, 45°, or 100%
Approaches
Left Approach
Length: 215 ft.
Slope: 6-10%
Vegetation: Heavy, Ditch is fully vegetated or rip-rapped with no signs of erosion.
Erosion Estimate: 1.34 tons/year
Right Approach
Length: 185 ft.
Slope: 6-10%
Vegetation: Heavy, Ditch is fully vegetated or rip-rapped with no signs of erosion.
Erosion Estimate: 0.39 tons/year
Erosion Information
Estimate of Total Erosion at Crossing: 1.73 tons/year
Summary Information
Fish Passability: Barrier at High Flows
Is a future visit to this site recommended? No
Were any non-native species observerd at this site? Yes, Burdock, wild parsnip, birds-foot trefoil, knapweed, white sweet clover.
Site Comments: Representative reach not taken due to inaccessibility
*These data are maintained in the Michigan DNR Road Stream Crossing Inventory.
