Road Stream Crossing Site EUP_SI08
Saint Marys River Watershed, Rock Bottom Creek
E Bailey Rd
Chippewa County
Information collected by:
Site Location
GPS Coordinates: 46.4595935,-84.1926958
T 047N R 002 Sec 21
Fish Passability: Barrier
Perch Height: 0.1 ft.
Total Erosion: 1.89 tons/year
Overall Score: 27
Severity: Severe
Date Inventoried: 6/30/2021

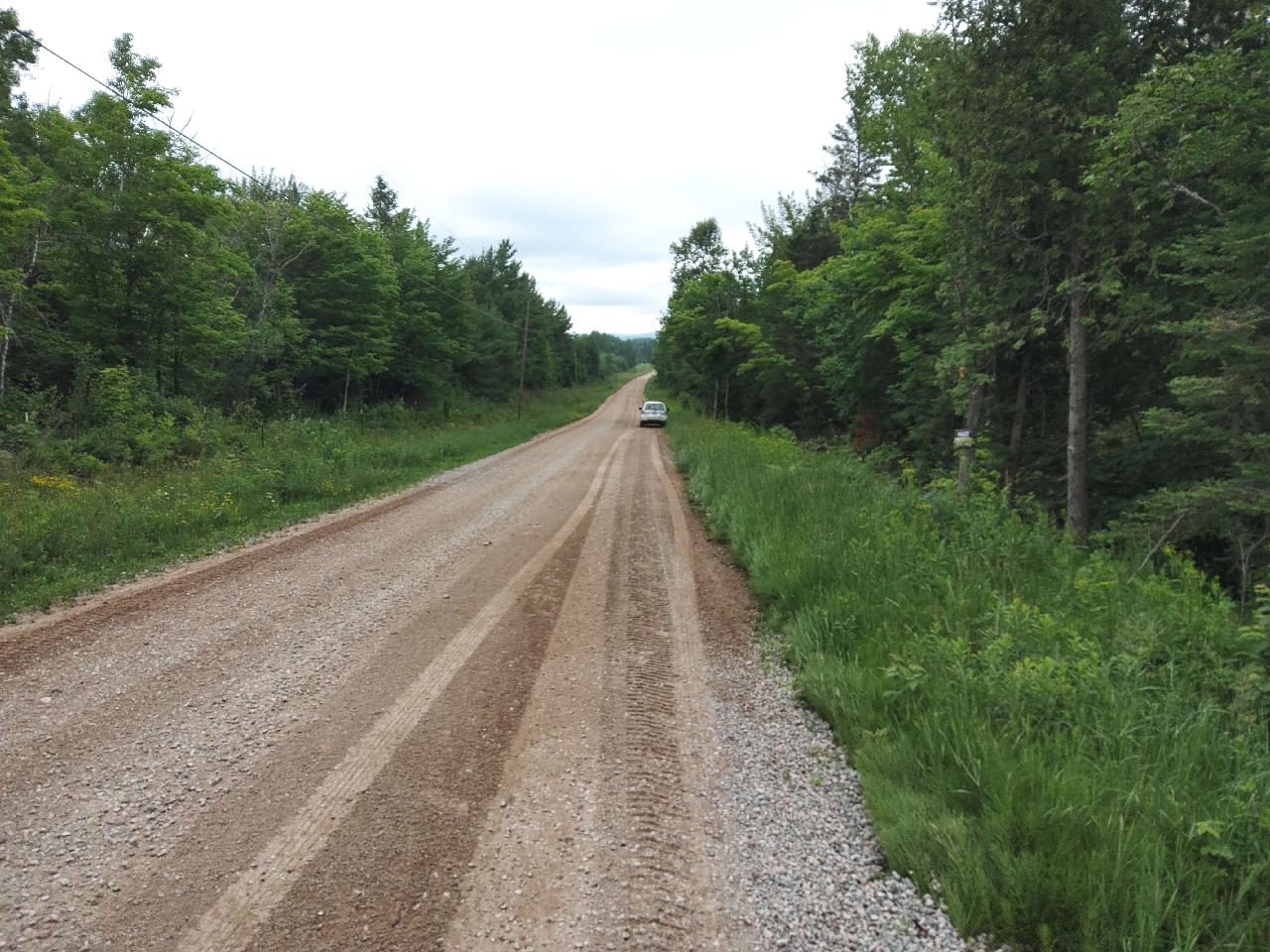

Road Approach - Left
Road Approach - Right

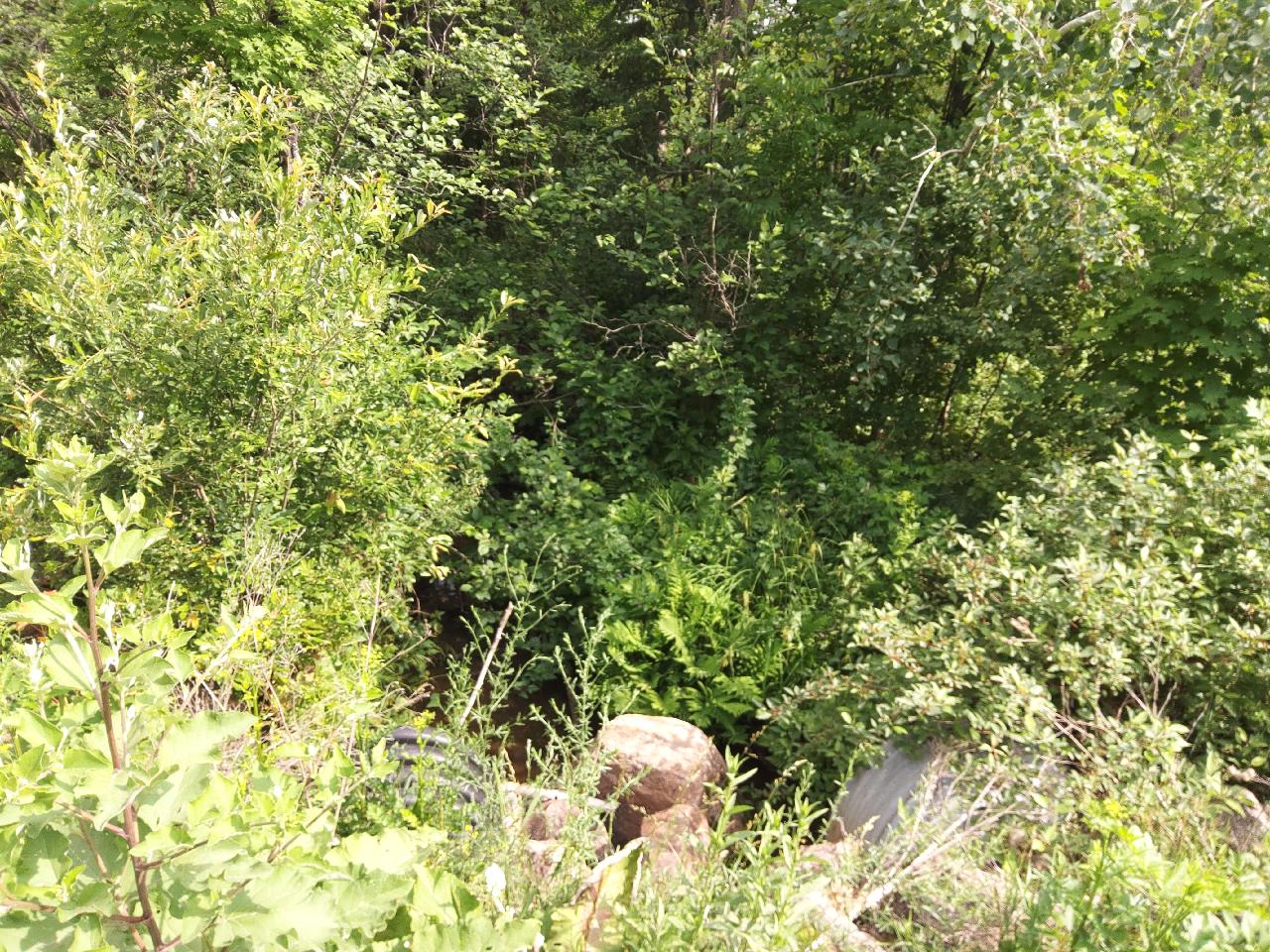

Upstream Conditions
Downstream Conditions

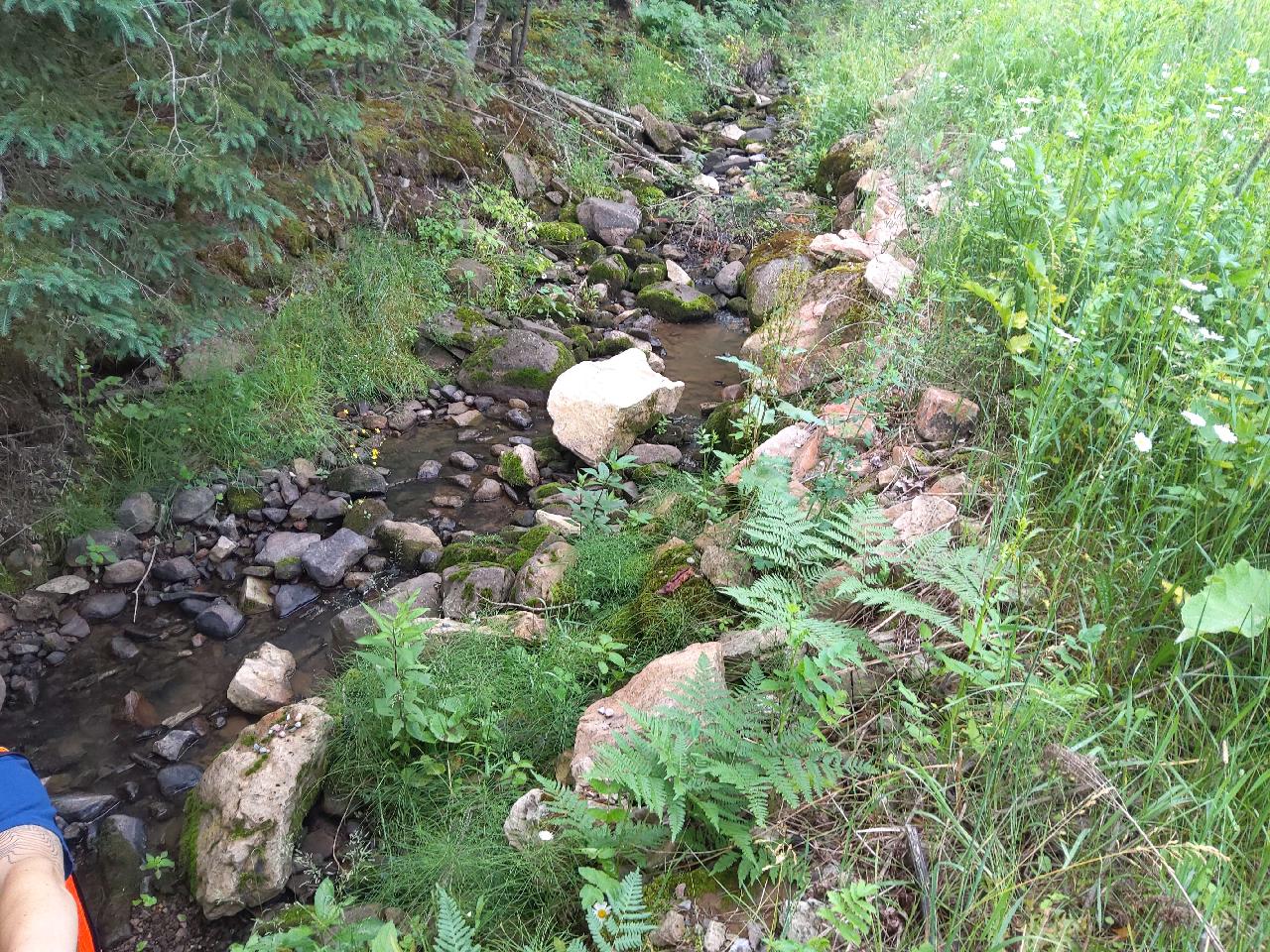

Representative Reach
Site Sketch
Crossing Information*
Type of Crossing: Culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Moderate deterioration from corrosion or abrasion (small rust flakes or indication that rust is slightly deeper than the surface level) or cracking or spalling or chipping (few minor cracks or localized chipping in the concrete). OR minor shape changes (described above).
Structure Interior: Corrugated
Is Structure Rusted through? No
Dimensions of Structure: Length 40 ft. Width 4 ft. Height 4 ft.
Percentage Plugged: 1% - 20% Inlet
Percentage Crushed: None or 0%
Perch Height: 0.1 ft.
Structure Inlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.1 ft. below the surface (via Flow Meter).
Stream Information
Stream Flow: < 1/2 Bankfull – The stream channel is less than half filled with water.
Stream Flow Type: Perennial (if flowing during the time of assessment.)
Is Scour Pool Present? Yes
Scour Pool: Length 15 ft., Width 20 ft., Depth 1.6 ft.
Is Upstream Ponding Present? No
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 11.6 ft.
Wetted Width: 4.5 ft.
Water Velocity: 0.9 ft./sec. (measured via Flow Meter)
Dominant Substrate: Cobble – baseball-sized or larger rocks (10in)
Road Information
Road Surface: Gravel
Owner: County
Road Condition: New Pavement or Well Graded, Same condition as initial placement.
Road Core Integrity: Good (no symptoms of lack of integrity)
Road Width at Culvert: 18 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 3 ft.
Slope: Gentle, 3:1, 15°, or 33%
Downstream
Fill Depth: 2 ft.
Slope: Gentle, 3:1, 15°, or 33%
Approaches
Left Approach
Length: 0 ft.
Slope: < 1%
Vegetation: None, Ditch has been recently graded and is bare of vegetation.
Erosion Estimate: 0 tons/year
Right Approach
Length: 240 ft.
Slope: < 1%
Vegetation: Partial, Ditch has some vegetation and some bare, eroding places.
Erosion Estimate: 1.89 tons/year
Erosion Information
Estimate of Total Erosion at Crossing: 1.89 tons/year
Summary Information
Fish Passability: Barrier
Is a future visit to this site recommended? No
Were any non-native species observerd at this site? Yes, Wild parsnip, spotted napweed, burdock, birdsfoot treefoil.
Site Comments: Past channel downcutting, vegetation currently growing on streambanks, perched double culverts pose replacement need
